CURTINA X403
€ 29,06
per st. excl. VAT
Colour: Zwart mat
Length
In stock, delivery 24–48 h
Description

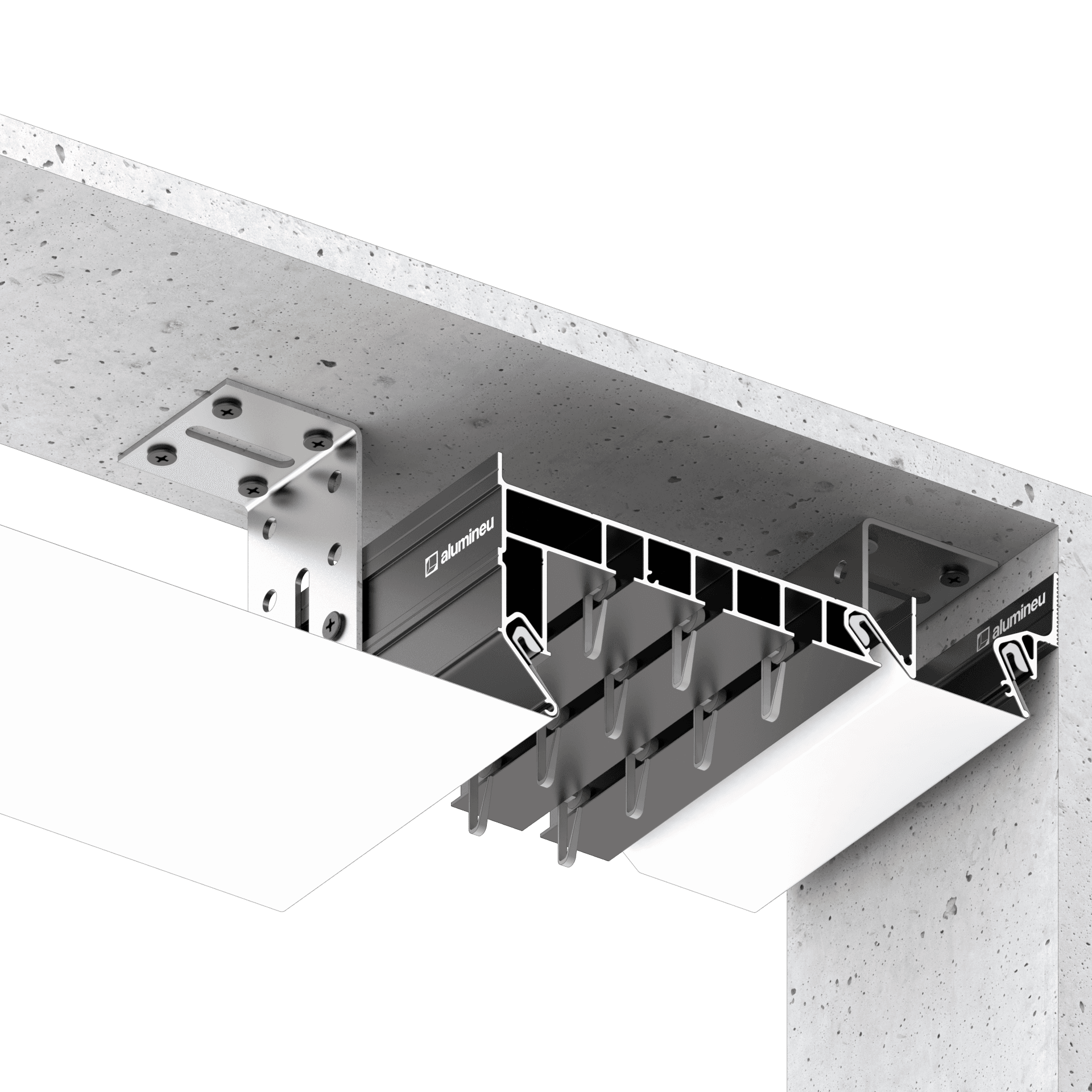

Profile for a concealed curtain recess with three guide channels for curtains and sheers. For stretch ceilings with harpoon fastening and side insertion of the PVC membrane.
technical specifications
- Brand:
- alumineu
- Material:
- aluminum
- Membrane attachment:
- harpoon
- Number of tracks:
- 3
What's in the box
- Profile CURTINA X403: 1 pc.
- Cut band: 3 pcs. per joint
- Joint pins ∅2 mm: 3 pcs. per joint
Installation
Fastening
Using self-tapping screws or wall plugs to the ceiling through the mounting brackets. Fastening spacing not greater than 1.5 m. Can be mounted close to the wall.
Joining
Without transitions or gaps. Using a Ø2 mm rod and a 15 mm wide band.
Ceiling insertion
The upper-level membrane is fastened with a standard straight spatula, and the lower-level membrane with a spatula with a working part at least 35 mm long and an angle of 70-90°.
Removal
Possible without damage.
LED strip
Maximum width 25 mm
LED strip
Can be replaced without removing the PVC membrane.

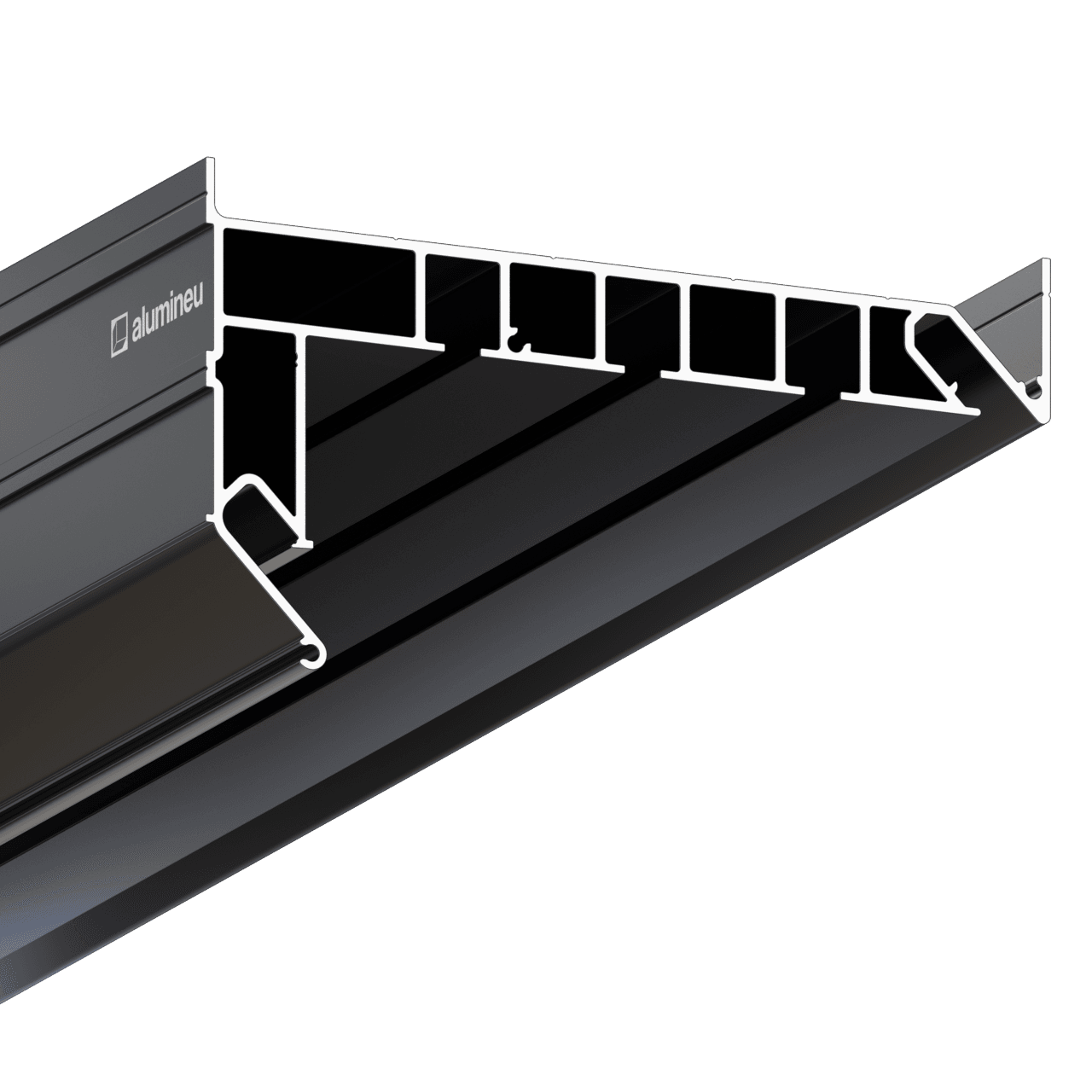

profile details
- 1Joining groove
- 2Angled groove for harpoon
- 3Groove for band
- 4Shelf for LED-strip
- 5Marking for self-tapping screws Installation
- 6Reinforced bumper for rigidity

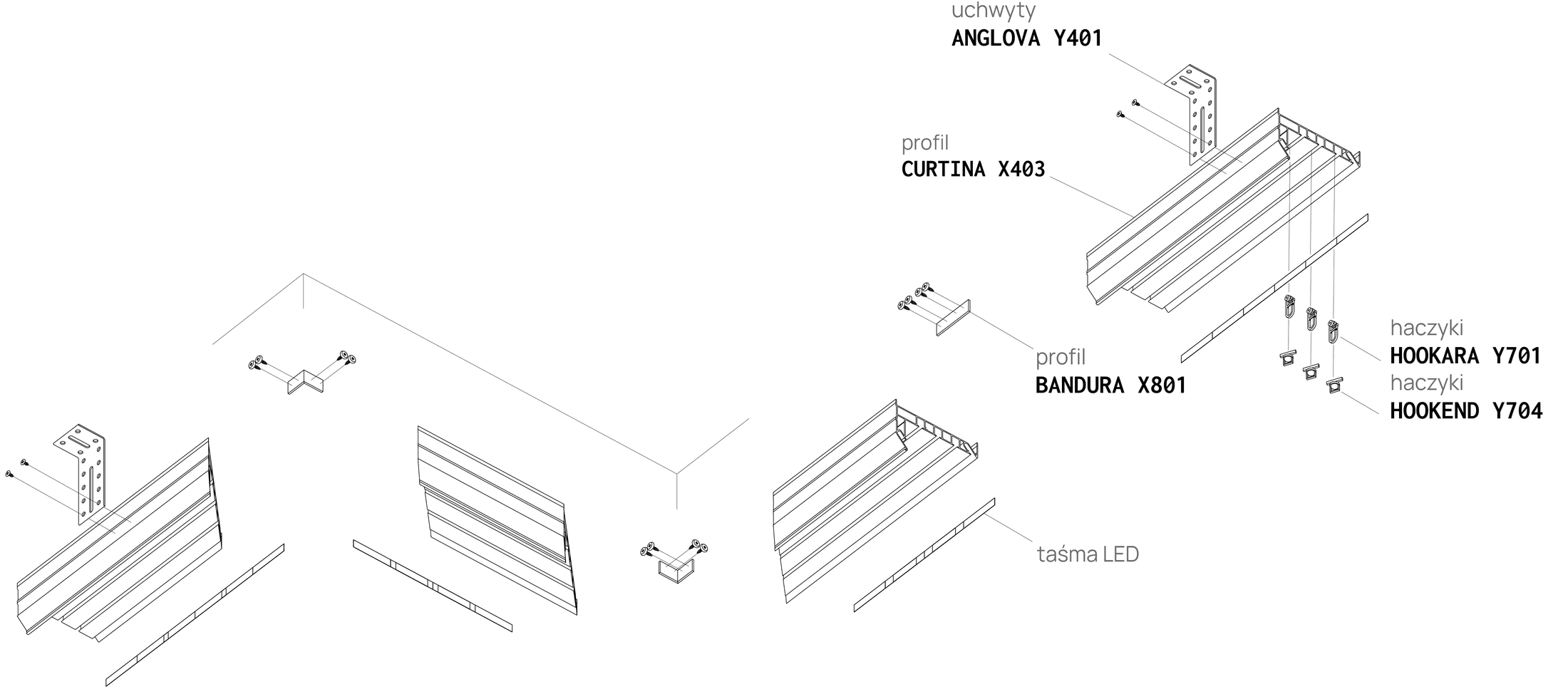

installation diagram
catalogue and instagram
profile in the interior
