LIGHTRA X015
€ 3,11
per m¹ excl. VAT
Colour: Onbehandeld
In stock, delivery 24–48 h
Description
Aluminium dividing profile for creating 15 mm light lines in stretch ceilings with a harpoon fastening system for the PVC membrane. The compact light chamber enables slim light lines with a minimalist appearance while maintaining high lighting efficiency and a clean finish.
The profile design securely retains the membrane, dissipates heat effectively from the LED strip, and delivers even illumination without visible LED dots. High rigidity combined with low weight enables straight, curved, and geometrically complex lighting structures while preserving their precise shape.
The profile can be used as a stand-alone linear lighting system or as a base for installing the CURTINA X407 curtain profile, combining a light line and a concealed ceiling-mounted curtain track in a single assembly. Compatible with DIFFUSY Y114 and INSERTA Y015 light diffusers.
technical specifications
- Brand:
- alumineu
- Material:
- aluminum
- Membrane attachment:
- harpoon
- Light line width:
- 14 mm
- Bending radius:
- >120 mm
What's in the box
- Profile LIGHTRA X015: 2 lm
- Cut band: 2 pcs. per joint
- Joint pins ∅2 mm: 2 pcs. per joint
- Band for cut profile: 1 m per 1 m of profile

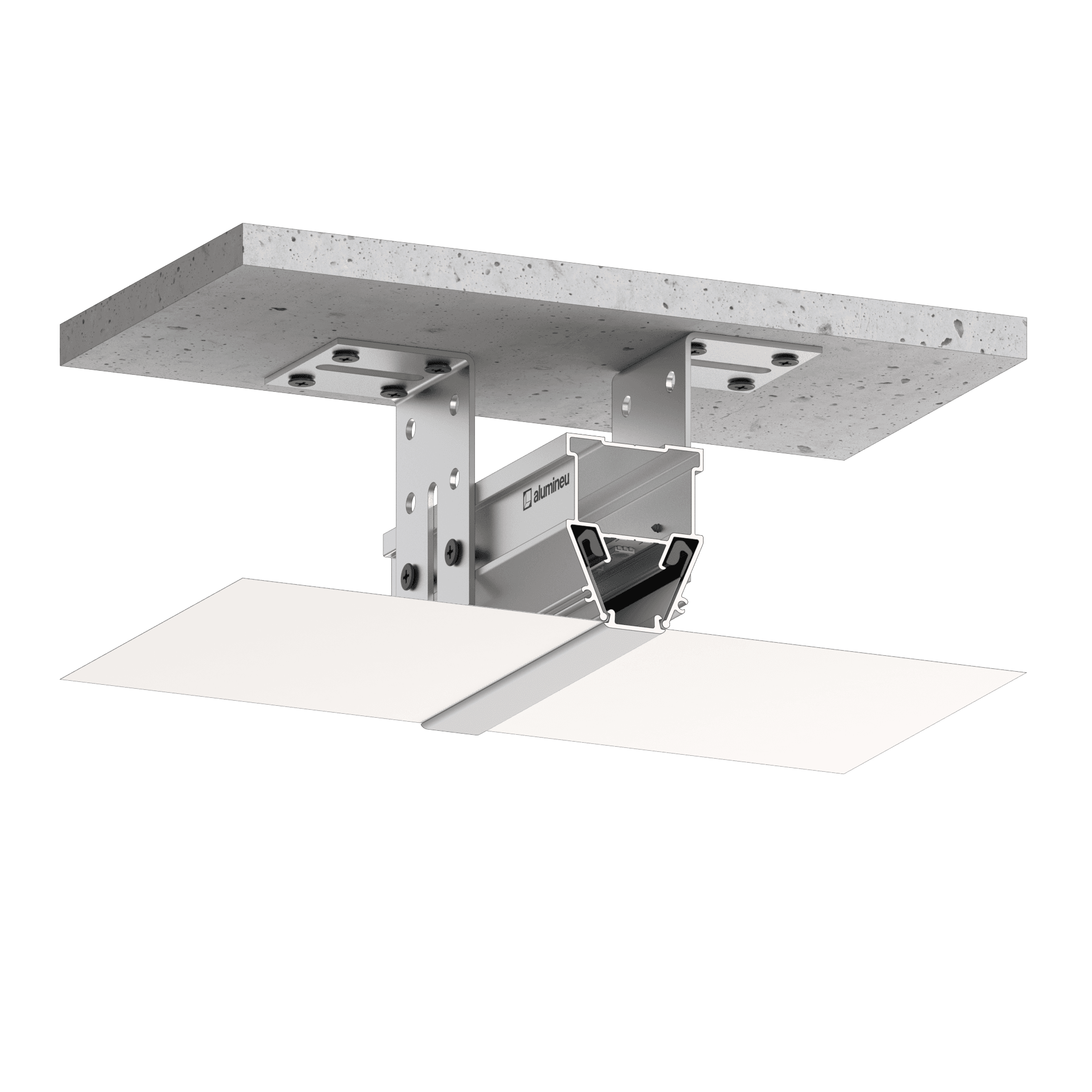

Installation
LED strip
Closed with a light diffuser.
LED strip
Easy access for replacement, without removing the ceiling membrane.

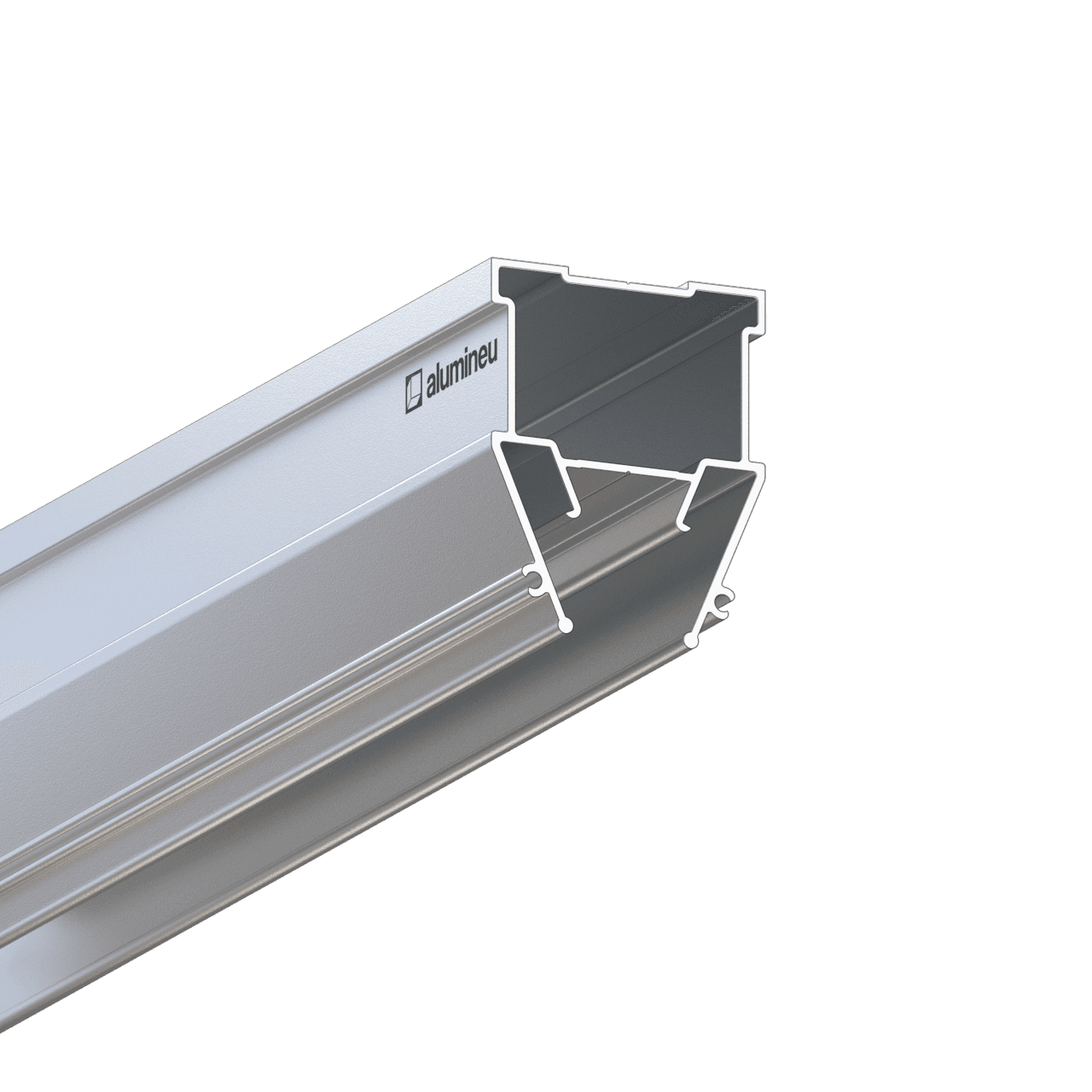

profile details
- 1Groove for band
- 2Angled groove for harpoon
- 3Joining grooves
- 4Marking for self-tapping screws Installation
- 5Shelf for LED strip

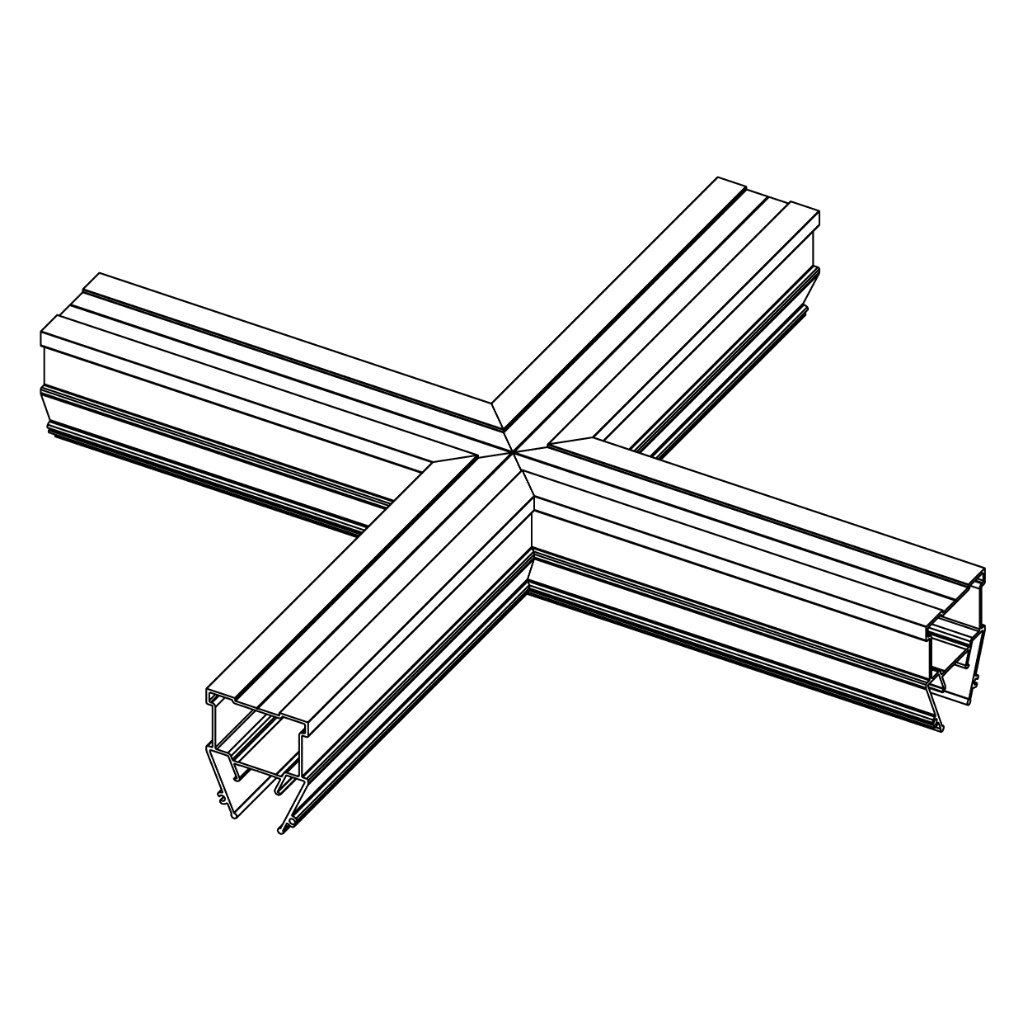

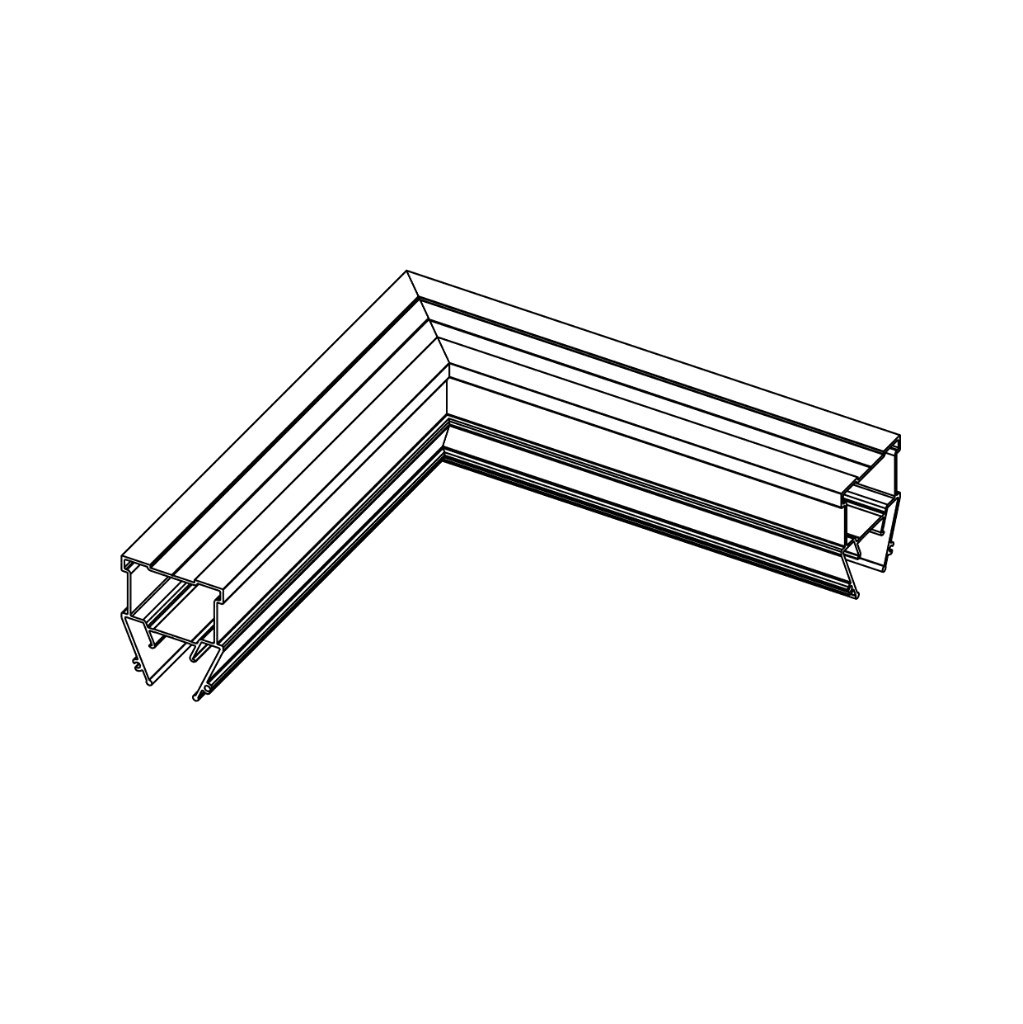

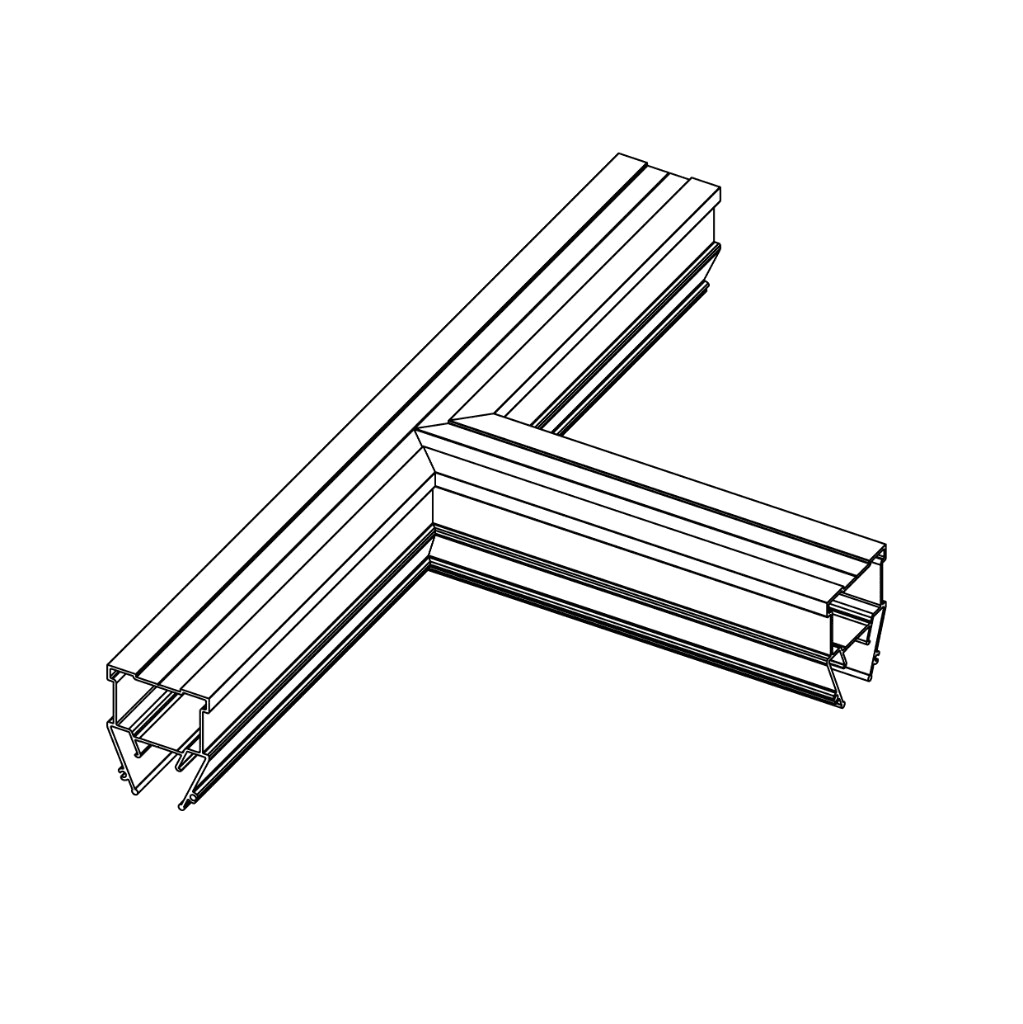

Corners
LIGHTRA NX015
6,23 EUR
LIGHTRA NX015
9,34 EUR
LIGHTRA NX015
4,67 EUR

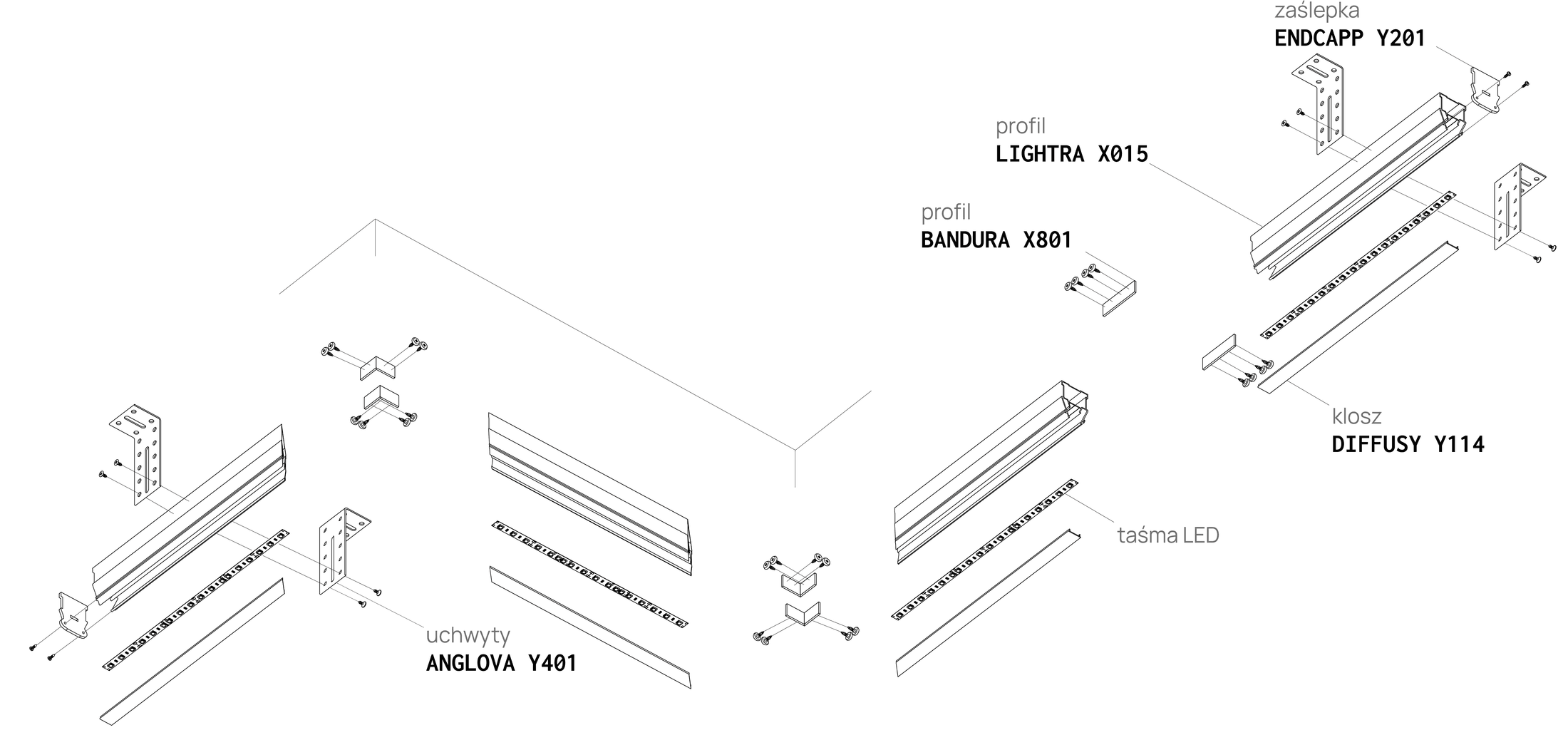

installation diagram
catalogue and instagram
profile in the interior
buy together
INSERTA Y015
0,83 EUR
DIFFUSY Y114
1,56 EUR
ENDCAPP Y201
1,04 EUR
ANGLOVA Y401
0,42 EUR

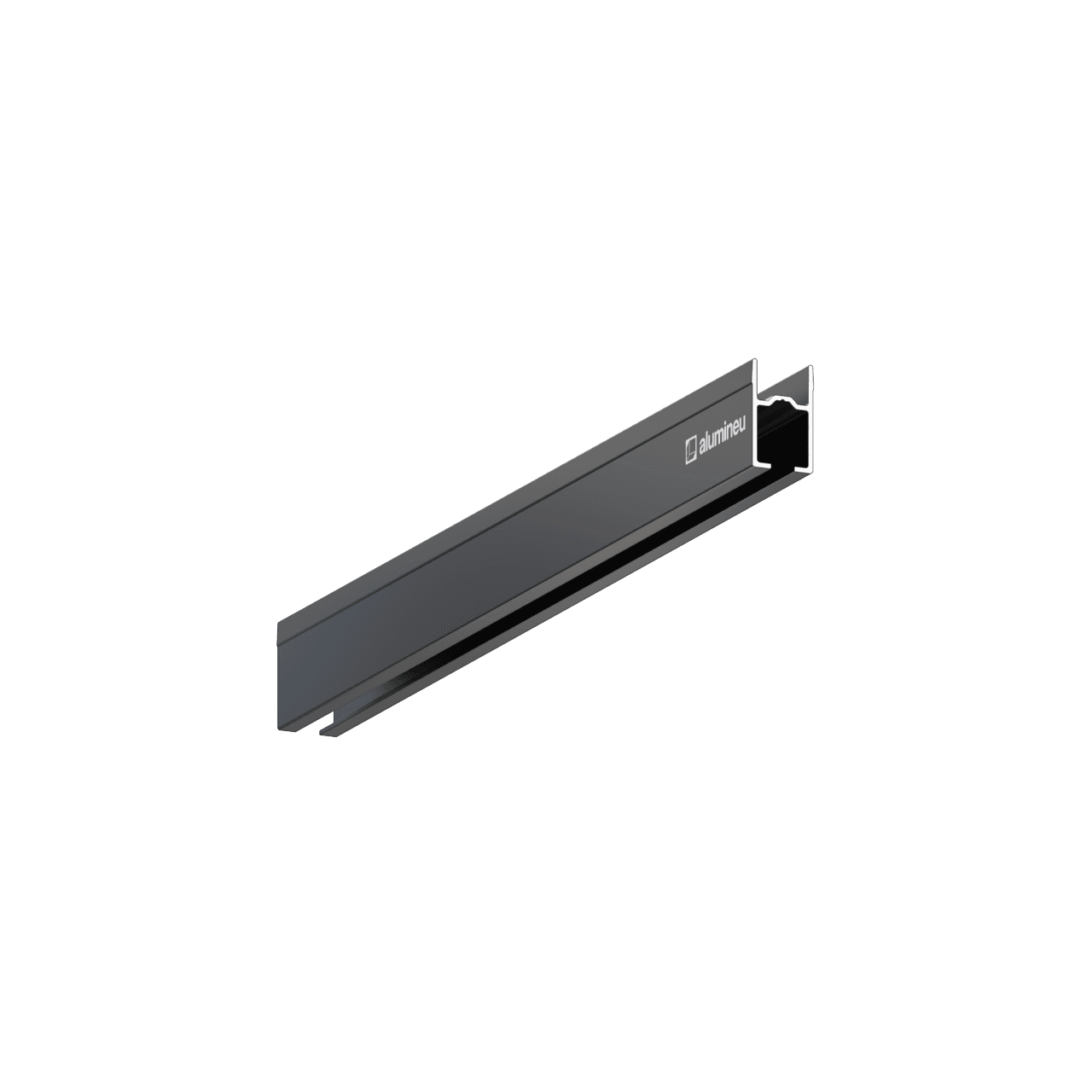

CURTINA X407
