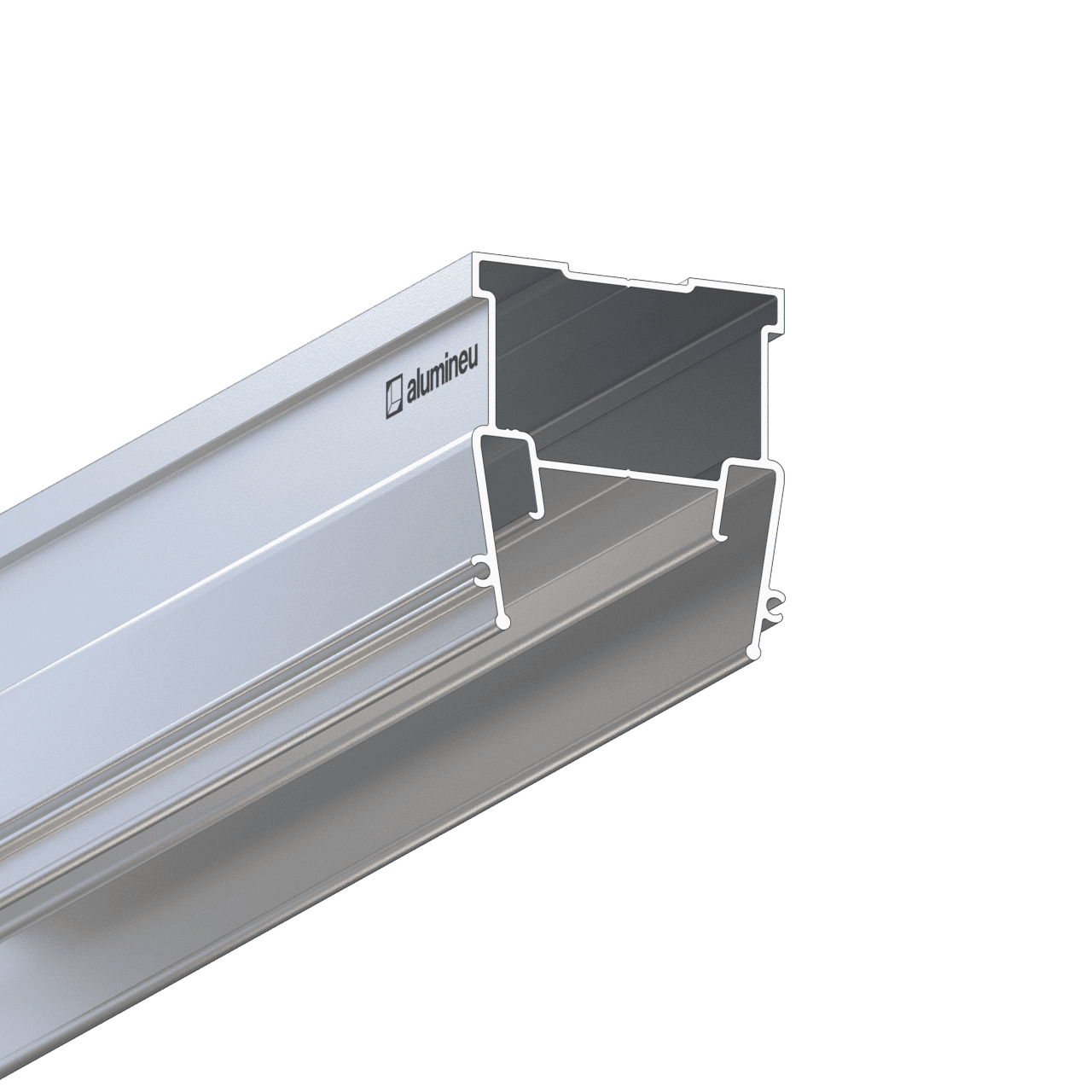

LIGHTRA X030
€ 4,15
per m¹ excl. VAT
Colour: Onbehandeld
In stock, delivery 24–48 h
Description
Aluminium dividing profile for creating 30 mm light lines in stretch ceilings with a harpoon fastening system for the PVC membrane. The 30 mm light chamber provides an optimal balance between decorative effect and light output, enabling both individual lighting elements and continuous light lines.
The profile design securely retains the membrane, dissipates heat effectively from the LED strip, and delivers even illumination without visible LED dots. High rigidity combined with low weight enables straight, curved, and geometrically complex lighting structures while preserving their precise shape.
Precise profile joints and ready-made welded corners ensure accurate assembly and reduce installation time. The profile is suitable for closed light contours, individual linear elements, and continuous wall-to-wall light lines. Compatible with DIFFUSY Y130, DIFFUSY Y130 B, and INSERTA Y030 light diffusers.
technical specifications
- Brand:
- alumineu
- Material:
- aluminum
- Membrane attachment:
- harpoon
- Light line width:
- >30 mm
- Bending radius:
- >500 mm
What's in the box
- Profile LIGHTRA X030: 2 lm
- Cut band: 2 pcs. per joint
- Joint pins ∅2 mm: 2 pcs. per joint
- Band for cut profile: 1 m per 1 m of profile

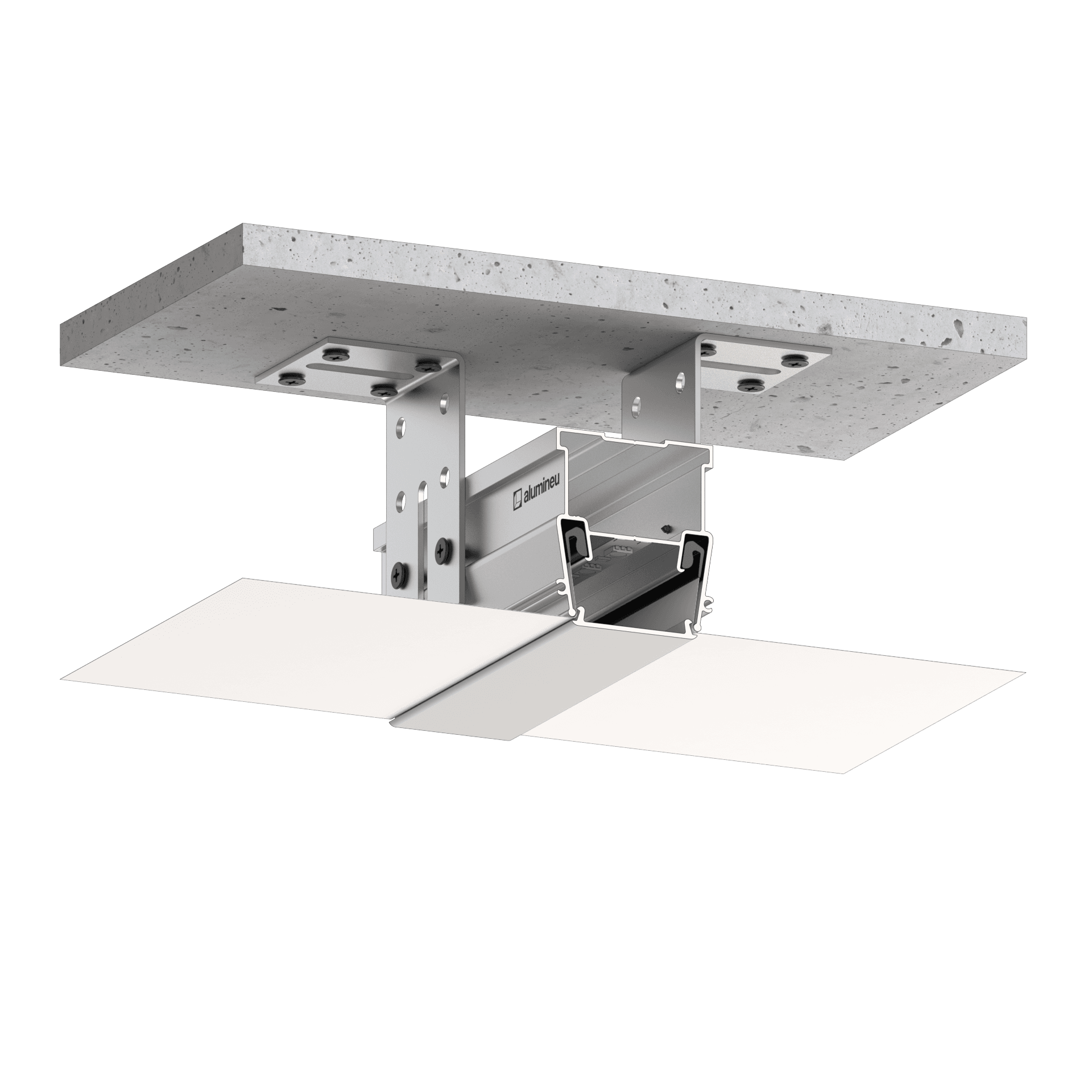

Installation
LED strip
Closed with a light diffuser or diffuser in white or black color.
LED strip
Easy access for replacement, without removing the ceiling membrane.
profile details
- 1Groove for band
- 2Angled groove for harpoon
- 3Joining grooves
- 4Marking for self-tapping screws Installation
- 5Shelf for LED strip

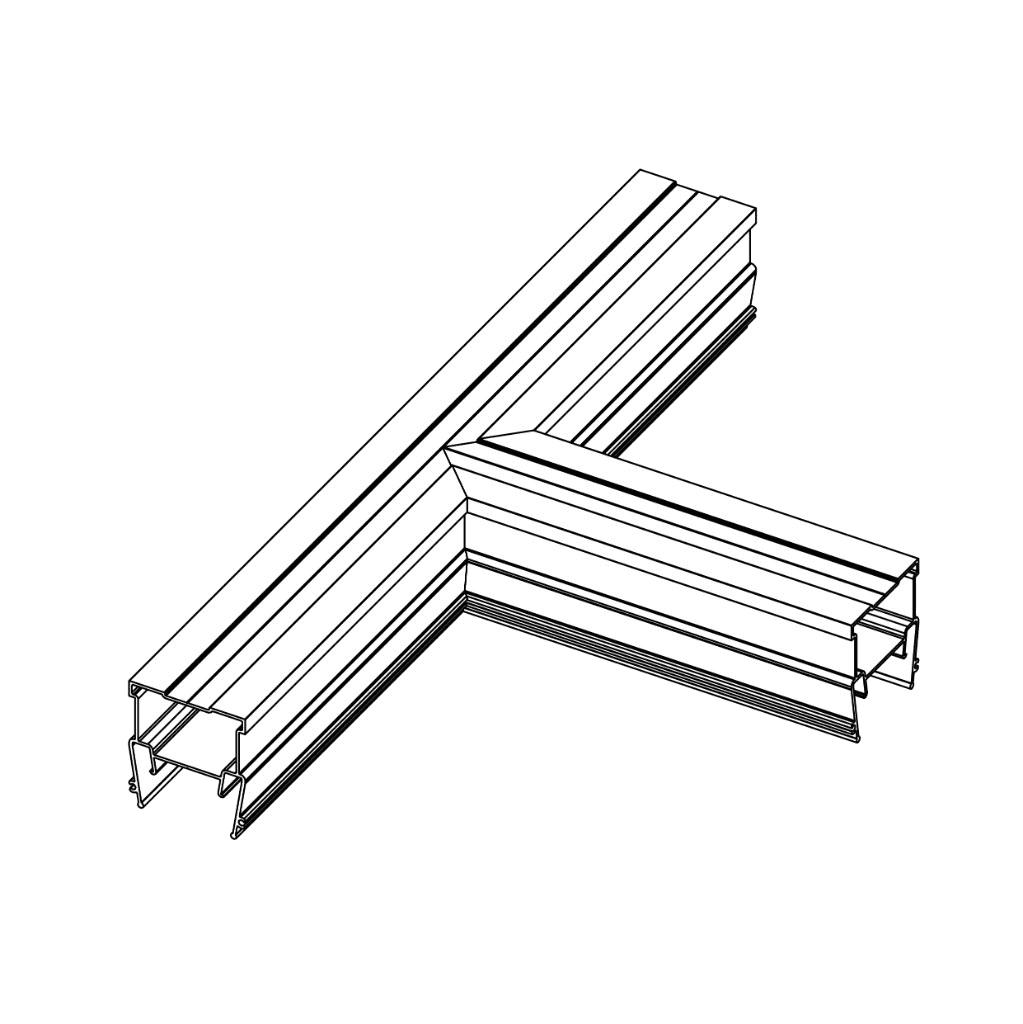

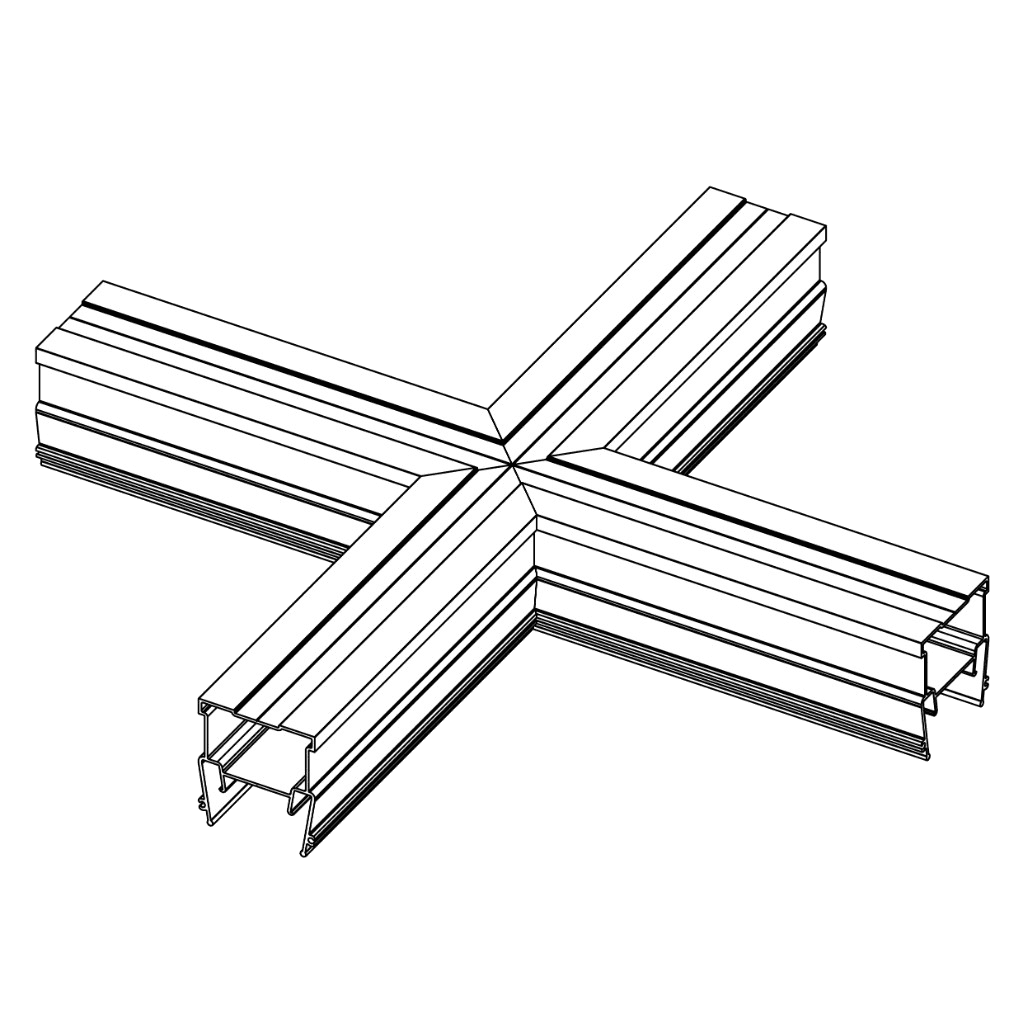

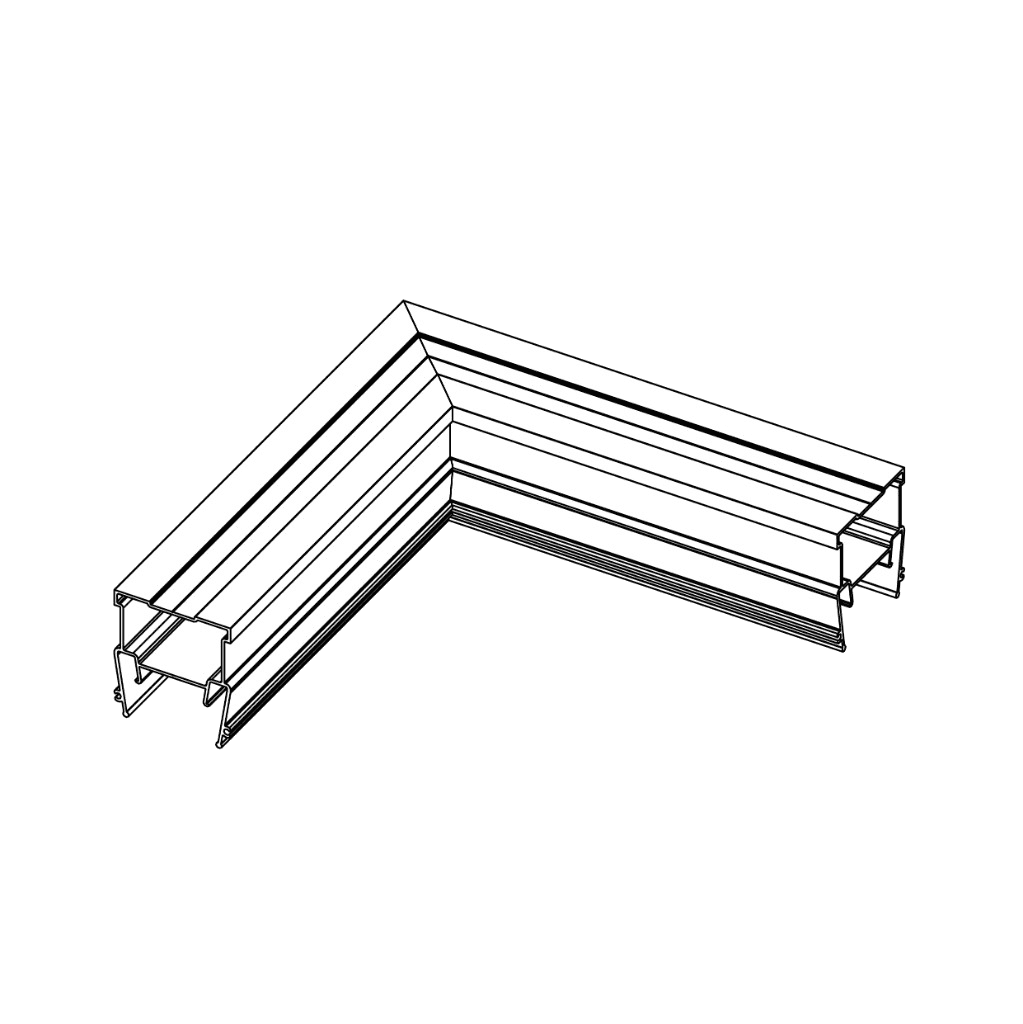

Corners
LIGHTRA NX030
7,26 EUR
LIGHTRA NX030
4,67 EUR
LIGHTRA NX030
9,34 EUR

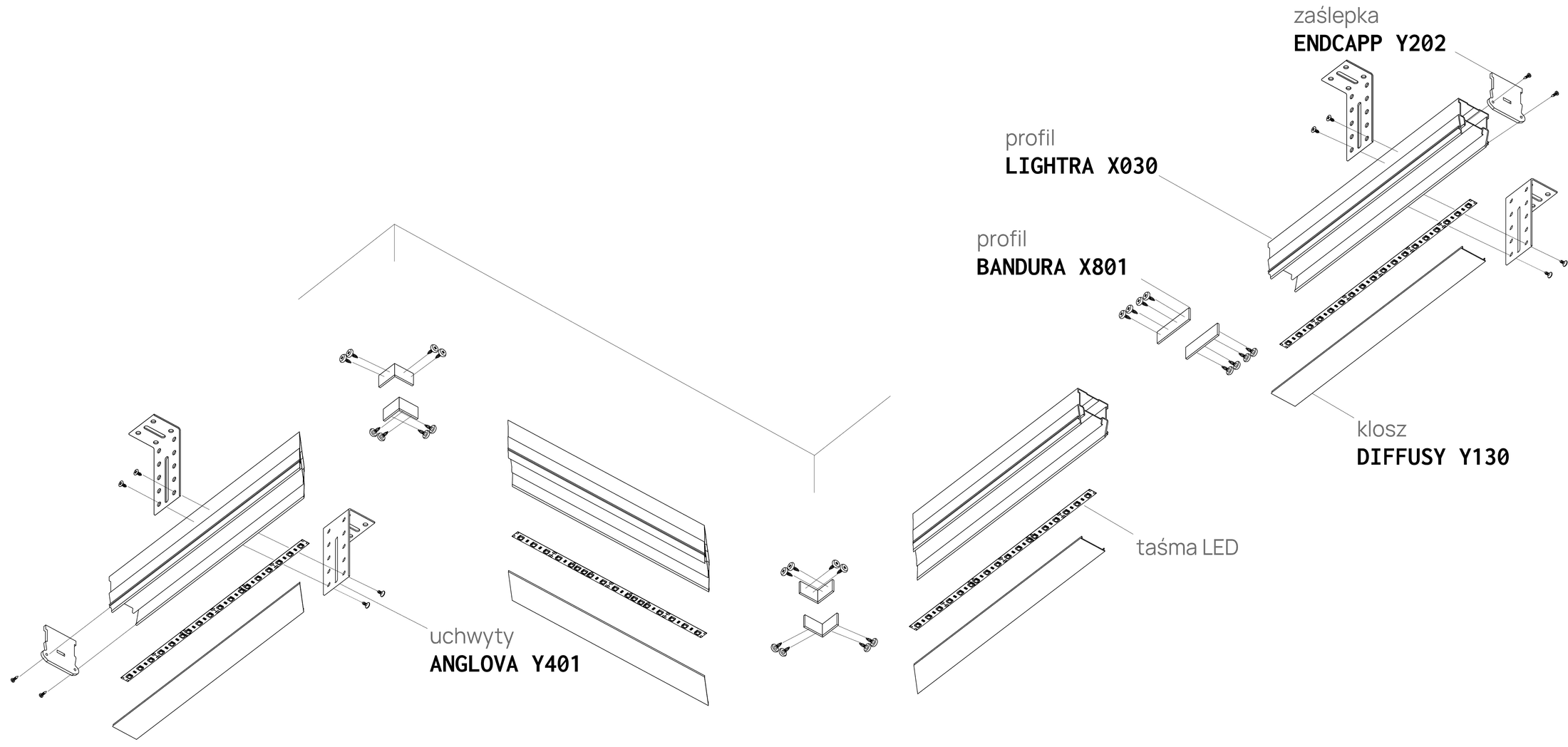

installation diagram
catalogue and instagram

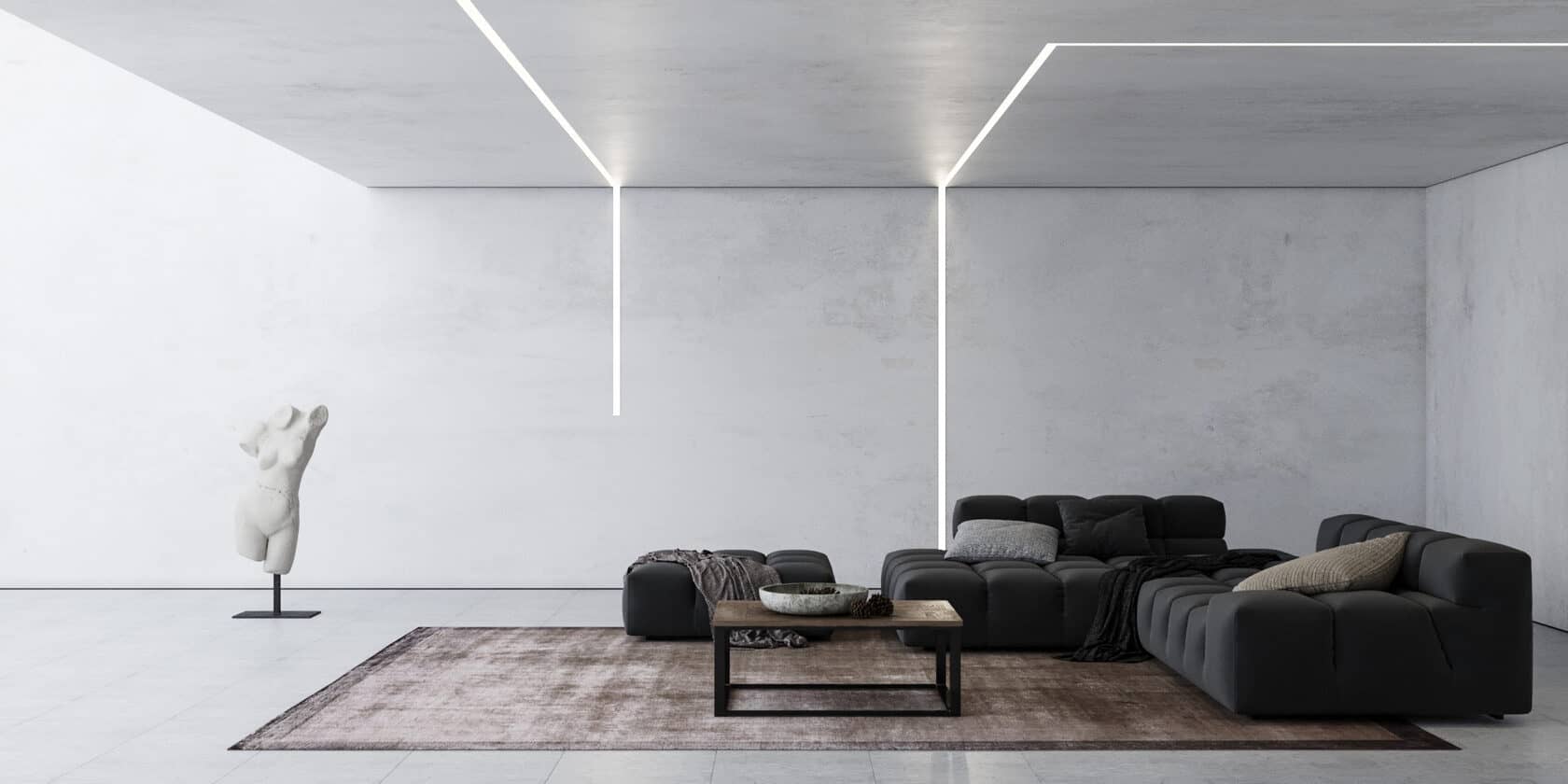

profile in the interior

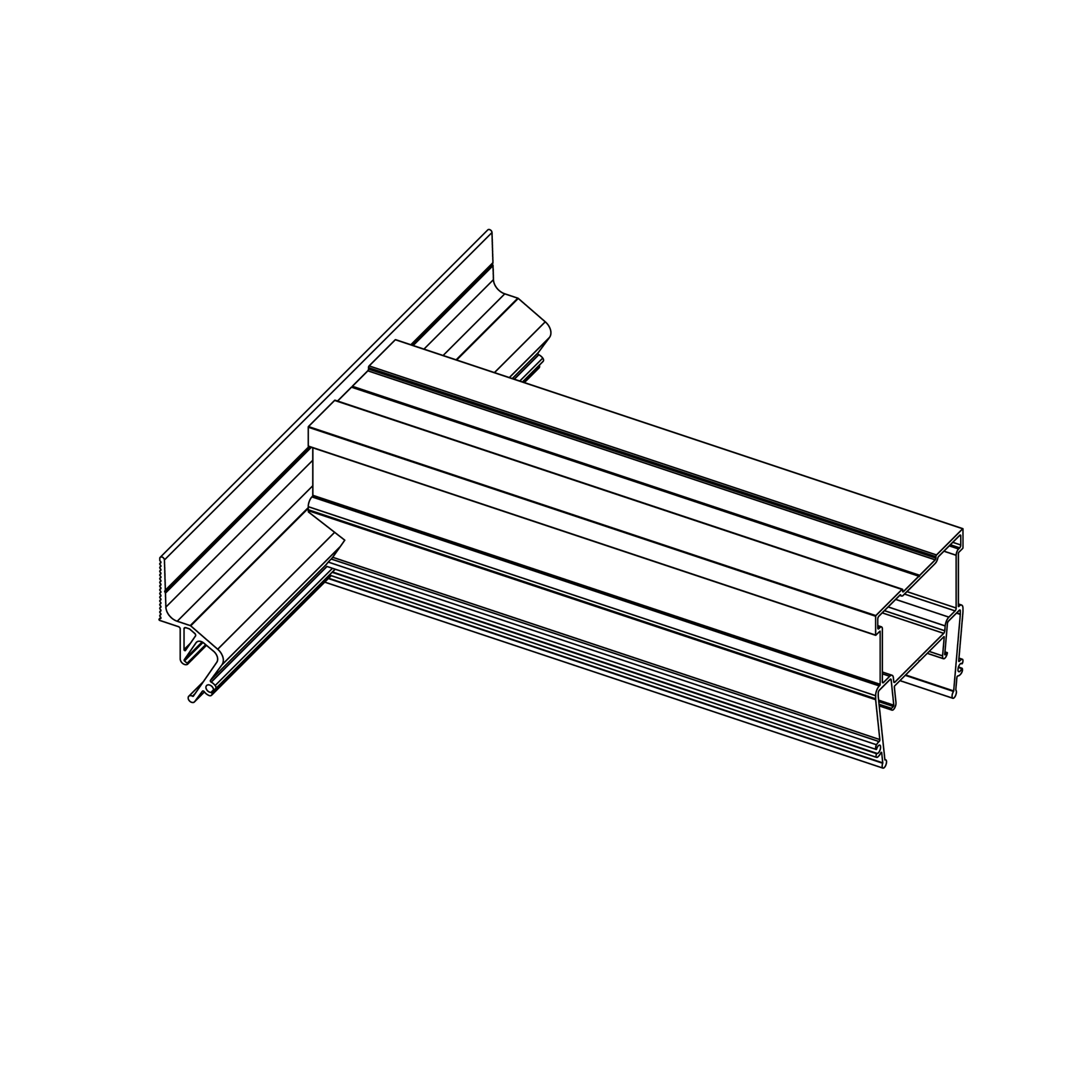

profile connections
