LIGHTRA X030 S

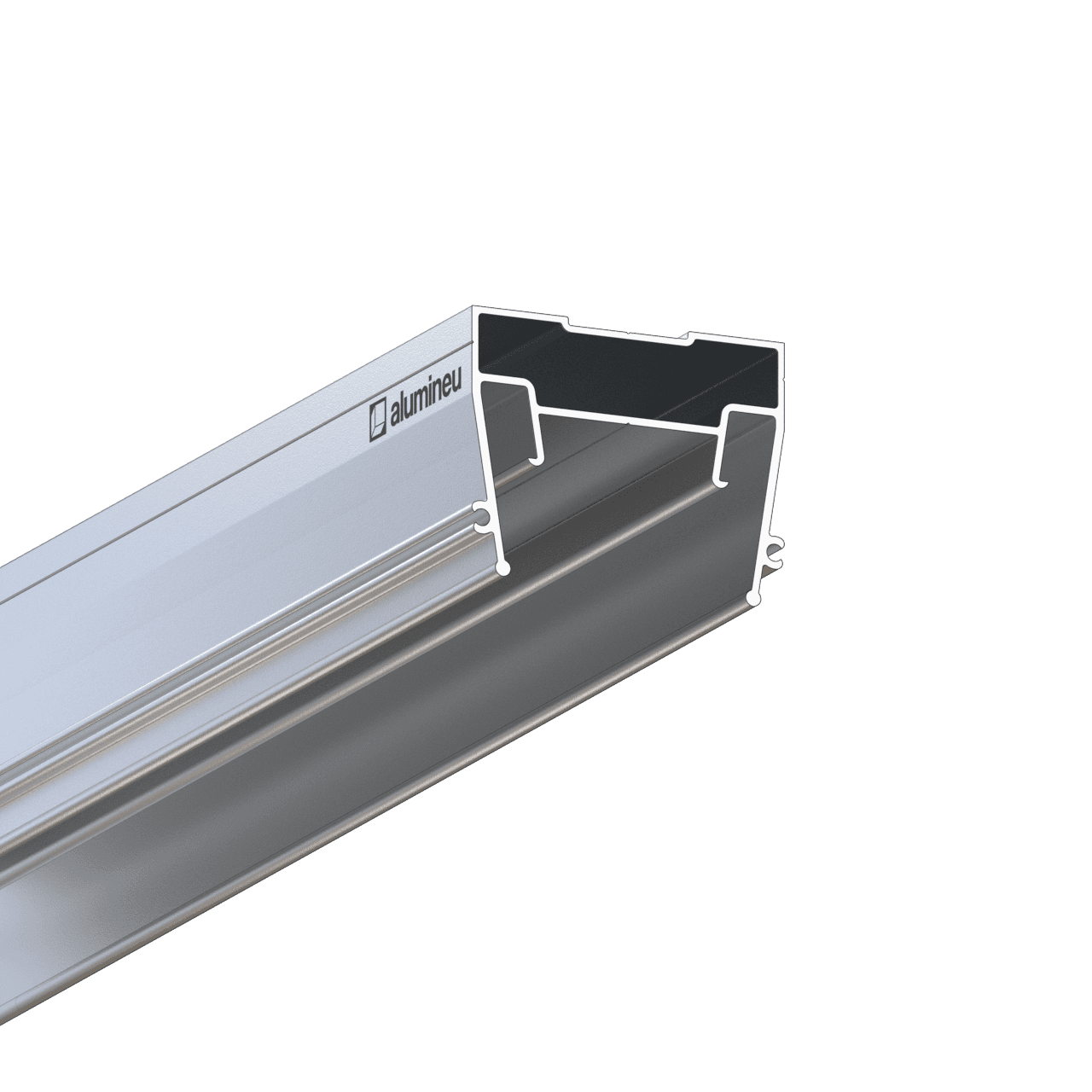

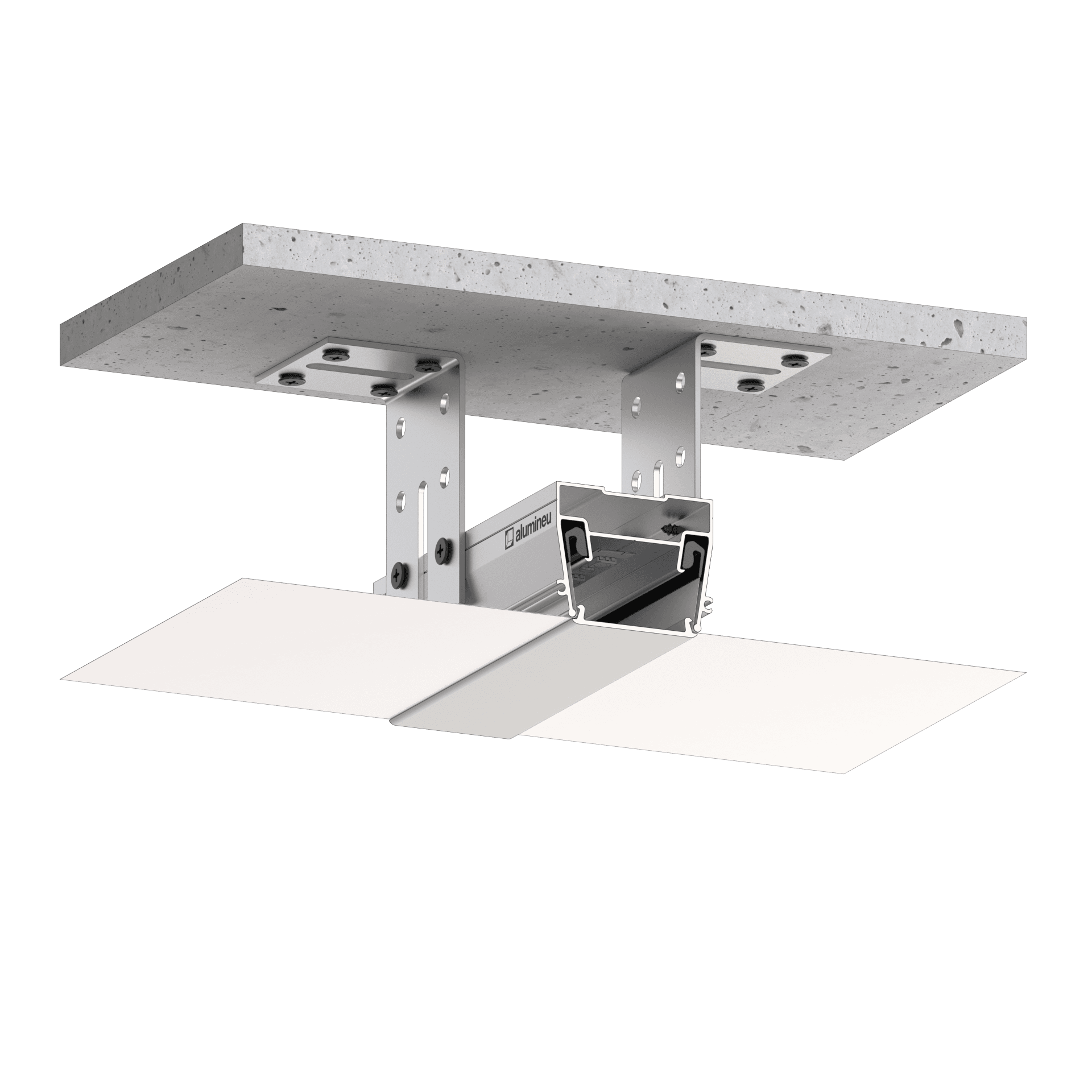

Aluminium dividing profile for creating 30 mm light lines in stretch ceilings with a harpoon fastening system for the PVC membrane. The reduced installation height preserves more room height without changing the light-line width, which is particularly important where ceiling height is limited.

The profile design securely retains the membrane, dissipates heat effectively from the LED strip, and delivers even illumination without visible LED dots. High rigidity combined with low weight enables straight, curved, and geometrically complex lighting structures while preserving their precise shape.

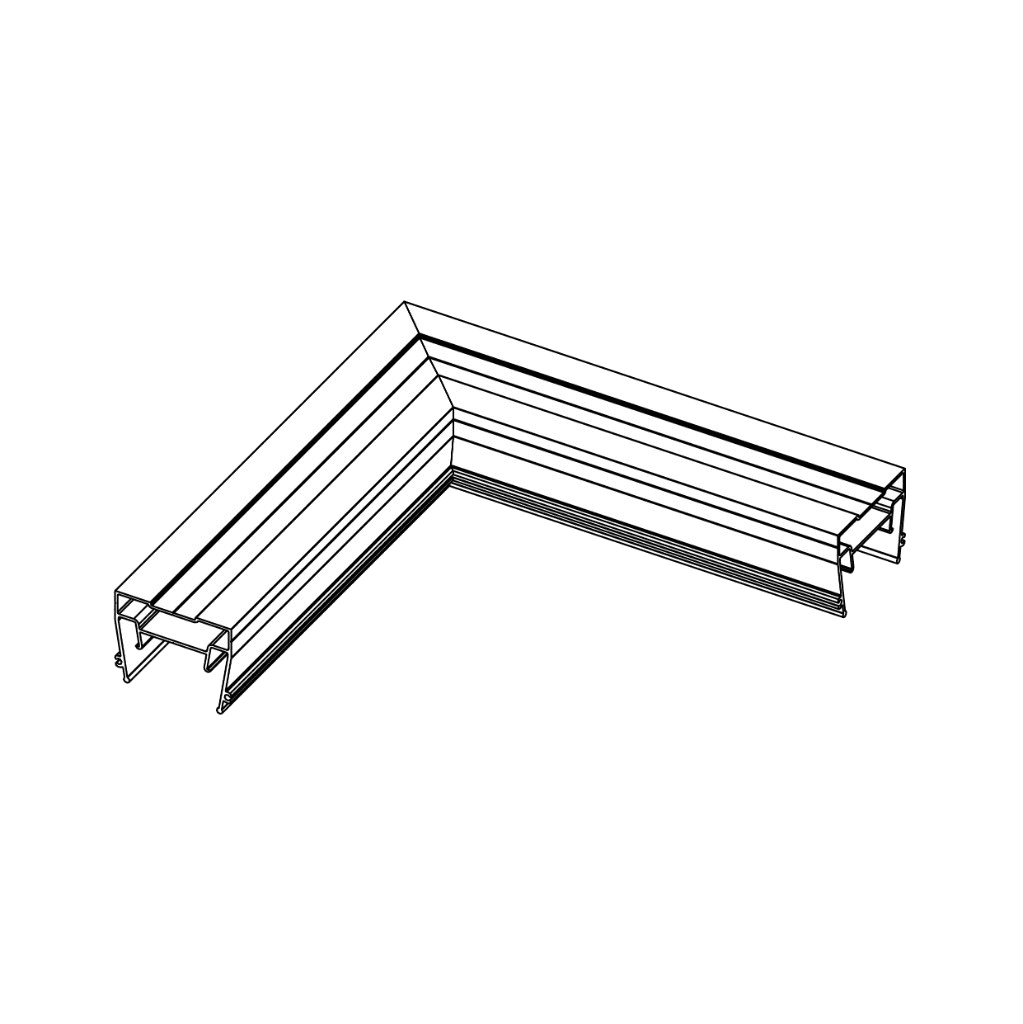

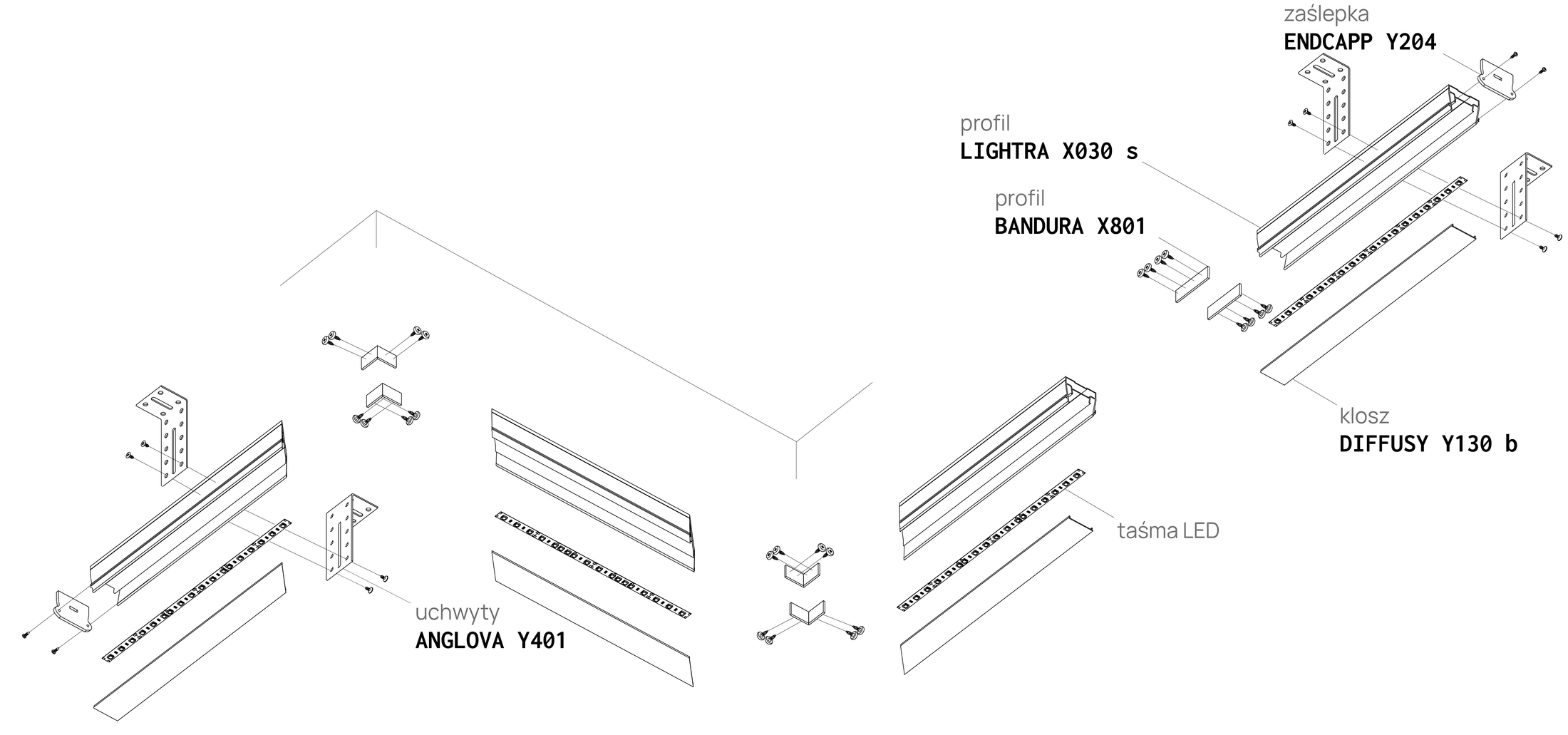

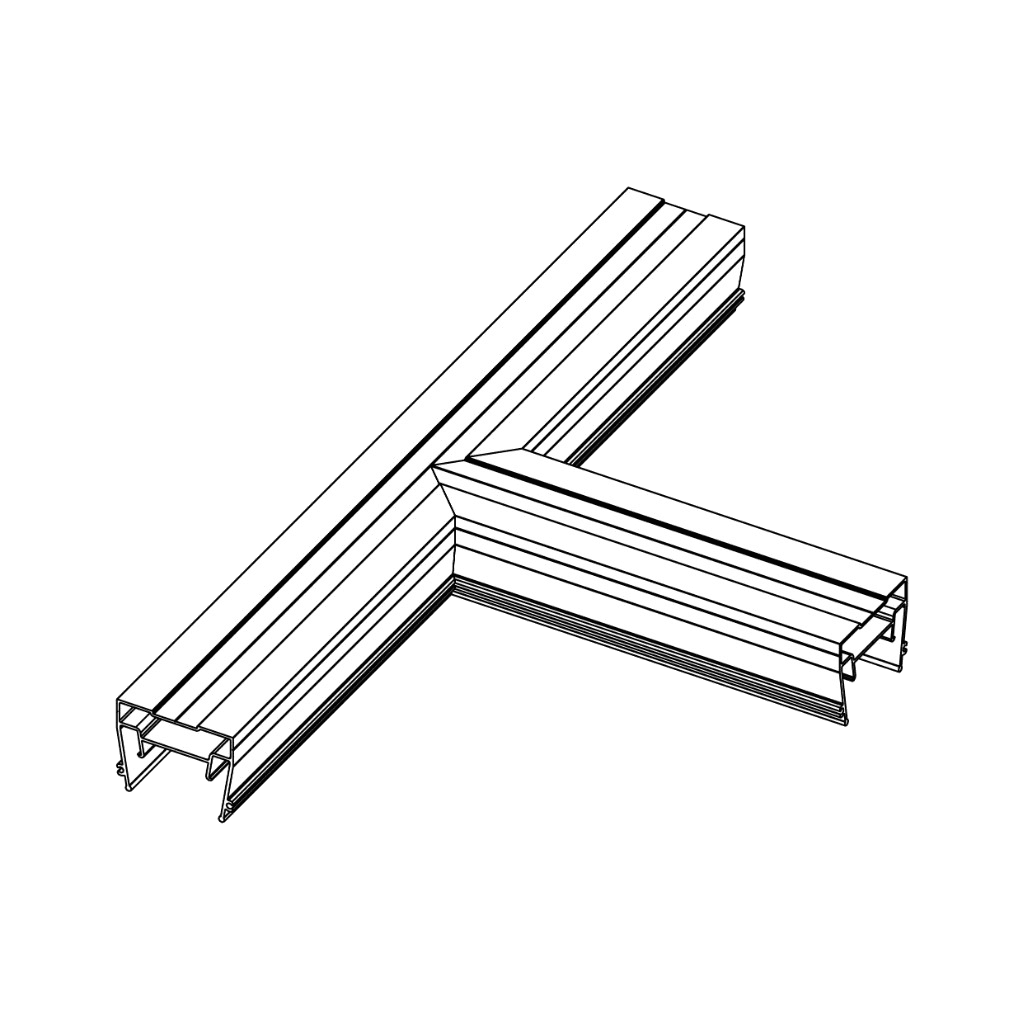

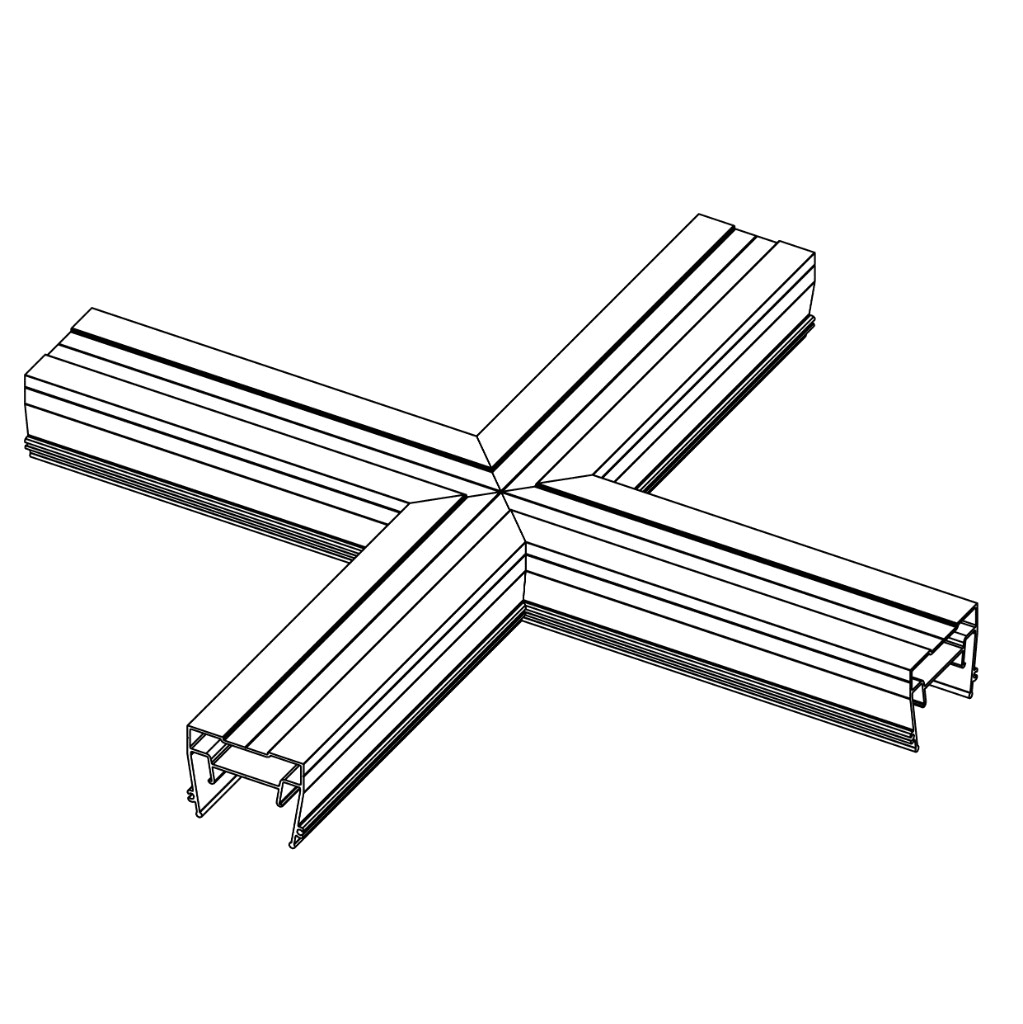

Precise profile joints and ready-made welded corners ensure accurate assembly and reduce installation time. The profile is suitable for closed light contours, individual linear elements, and continuous wall-to-wall light lines. Compatible with DIFFUSY Y130, DIFFUSY Y130 B, and INSERTA Y030 light diffusers.
