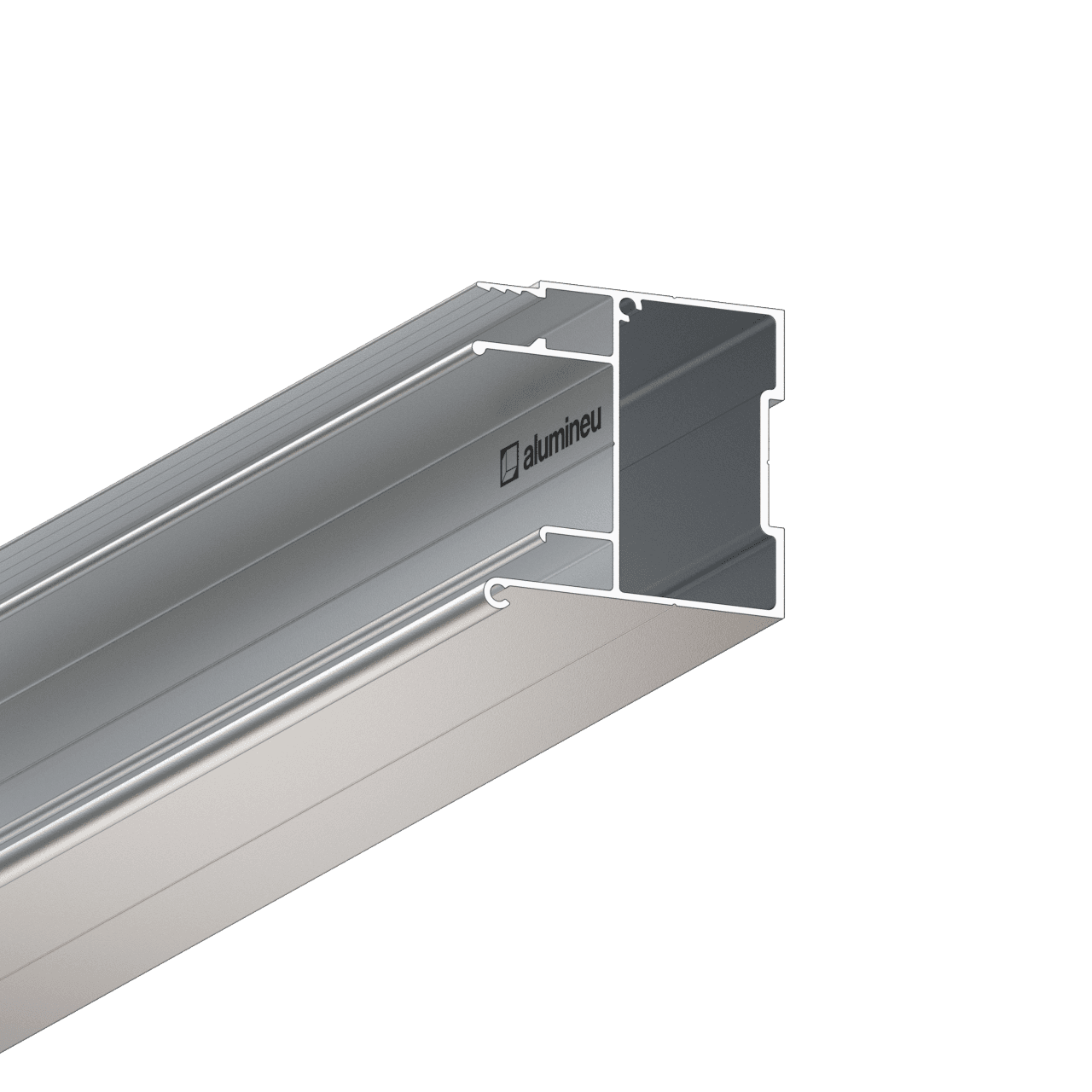

STRATOS X703
€ 5,19
per m¹ excl. VAT
Colour: Onbehandeld
In stock, delivery 24–48 h
Description
Profile for stretch-ceiling structures and recesses with a harpoon fastening system for PVC membrane. Suitable for following complex wall shapes; includes an LED-strip shelf.
technical specifications
- Brand:
- alumineu
- Material:
- aluminum
- Membrane attachment:
- harpoon
- Light line width:
- 29 mm
- Bending radius:
- >120 mm
What's in the box
- Profile STRATOS X703: 2 lm
- Cut band: 2 pcs. per joint
- Joint pins ∅2 mm: 2 pcs. per joint
Installation
LED strip
Can be mounted in 2 rows.
Joining
Membrane recommendations.
Joining
When using a profile with lighting, do not use colored membranes or matte-finish membranes.
profile details
- 1Joining groove
- 2Vertical groove for harpoon
- 3Groove for band
- 4Shelf for LED-strip

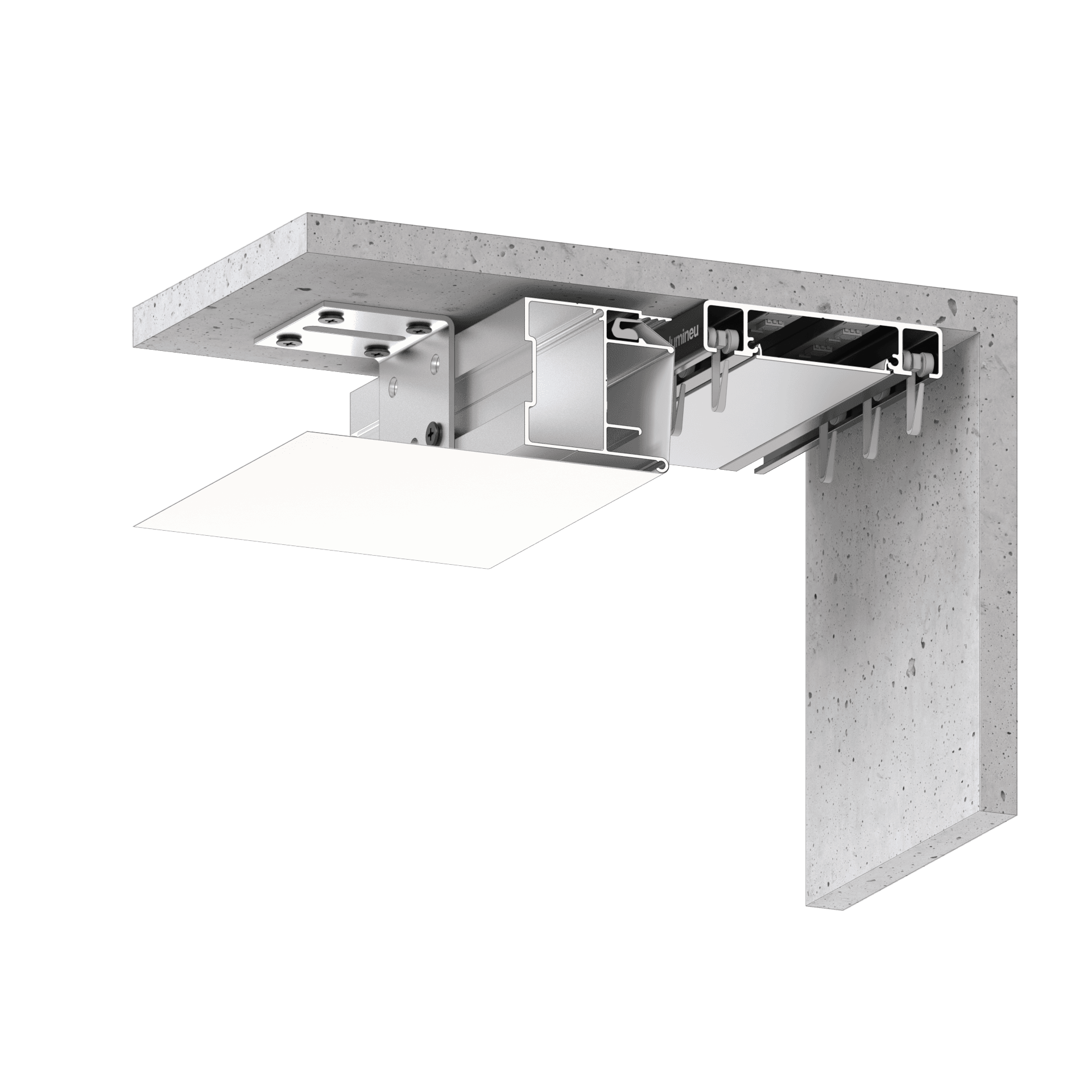

installation diagram
catalogue and instagram
profile in the interior

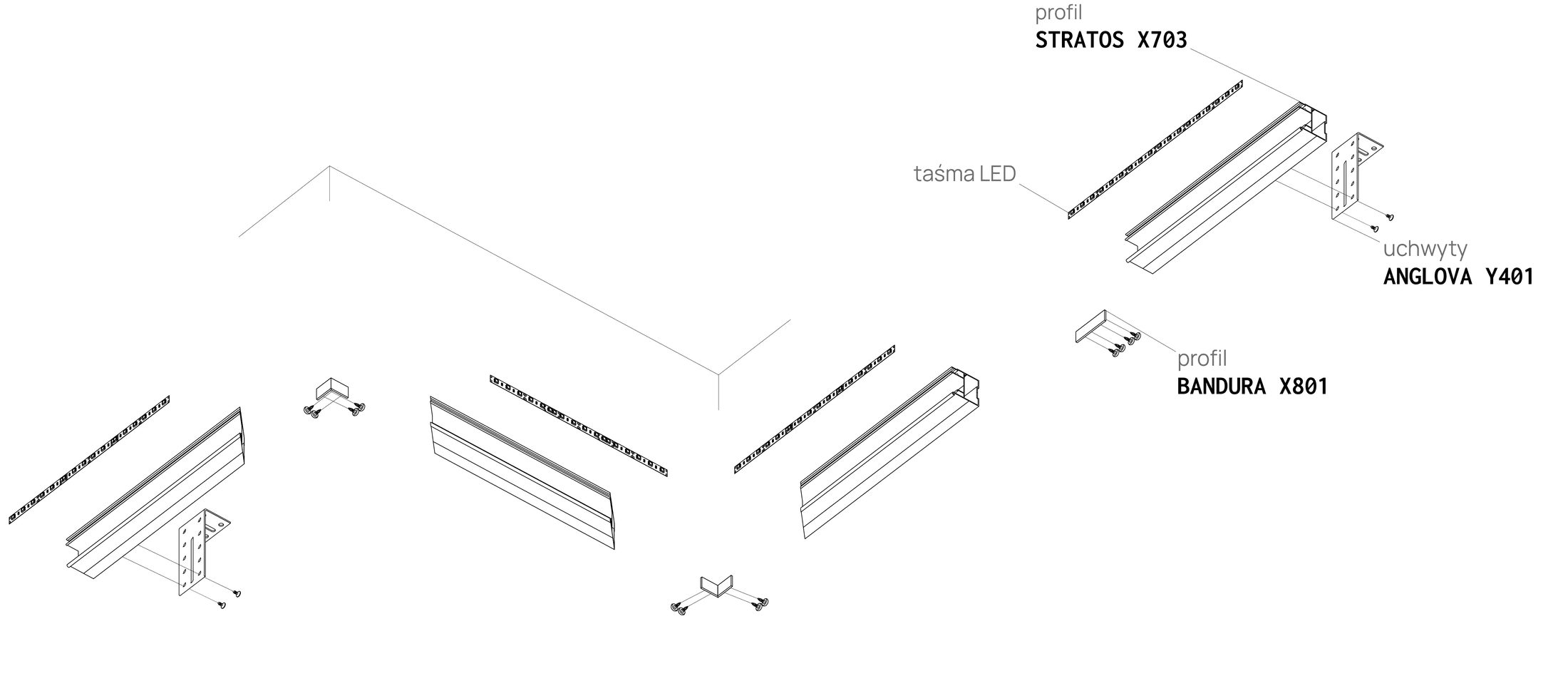

profile connections
