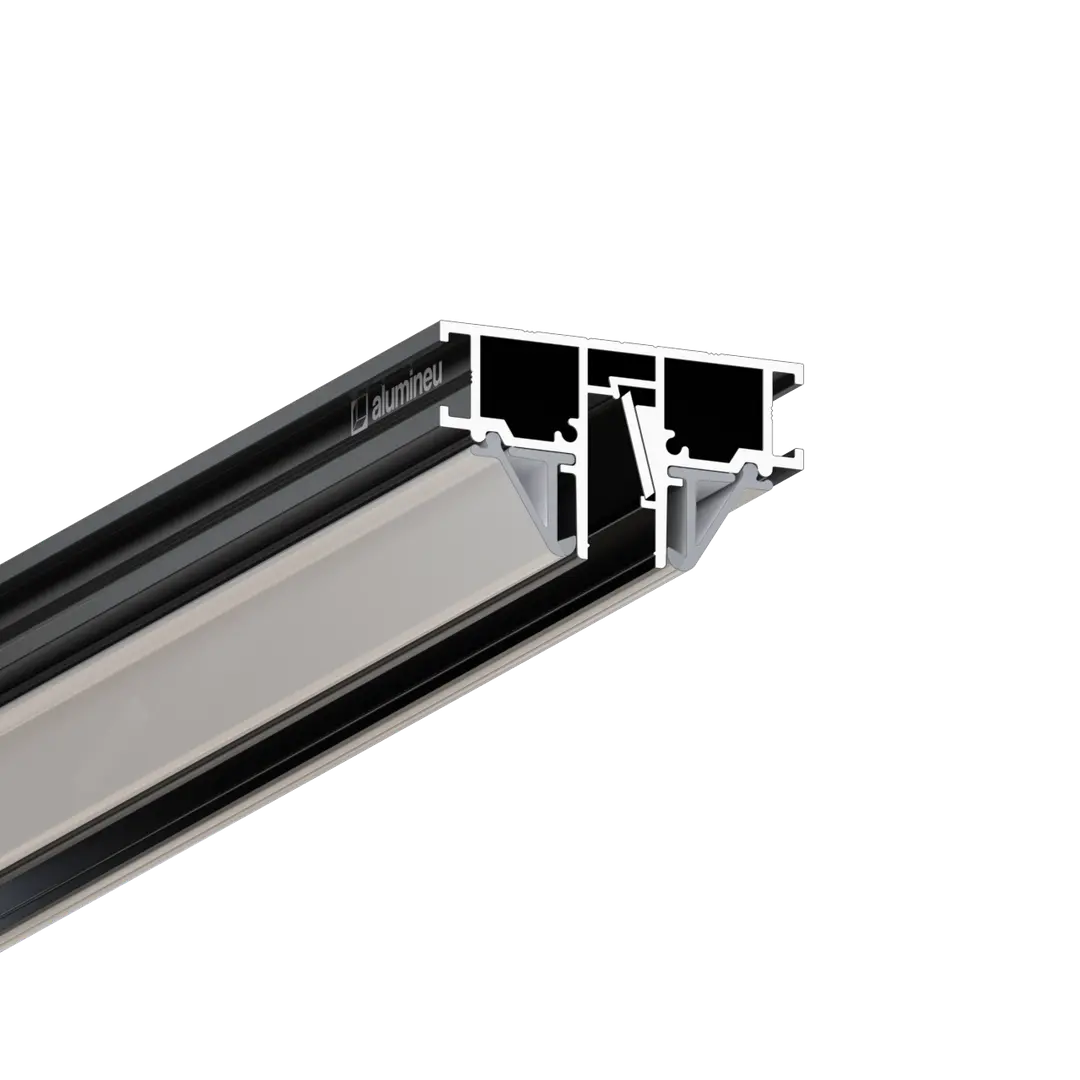

LUMNOVA Z008
€ 20,75
per m¹ excl. VAT
Colour: Black matte
In stock, delivery 24–48 h
Description
The LUMNOVA Z008 aluminium profile is designed for light lines in stretch ceilings. The profile with a clip-in fastening system suits PVC and fabric membranes without a harpoon. The light line is 8 mm wide.
The LED strip is glued to the ledge of the profile, and the DIFFUSY Y108 light diffuser covers the strip and diffuses its light. The strip can be replaced without removing the membrane.
The membrane is held by the LOCKIUM Y301 clip and tucked in with the SPATULA Y804 installation spatula. The JOINTEK Y603 and JOINTEK Y604 connectors join profile sections in a straight line and at an angle. The ends of the profile are closed by ENDCAPP Y209 end caps.
technical specifications
- Brand:
- alumineu
- Material:
- aluminum
- Membrane attachment:
- clip
- Light line width:
- 8 mm
What's in the box
| Item | Unit | Qty |
|---|---|---|
| Profile LUMNOVA Z008 | m | 2 |
| Clip | pc | 2 |
| LED strip ledge | pc | 1 |
Installation
LED strip
Closed with a polycarbonate light diffuser in white. Easy access for replacement without removing the PVC membrane.

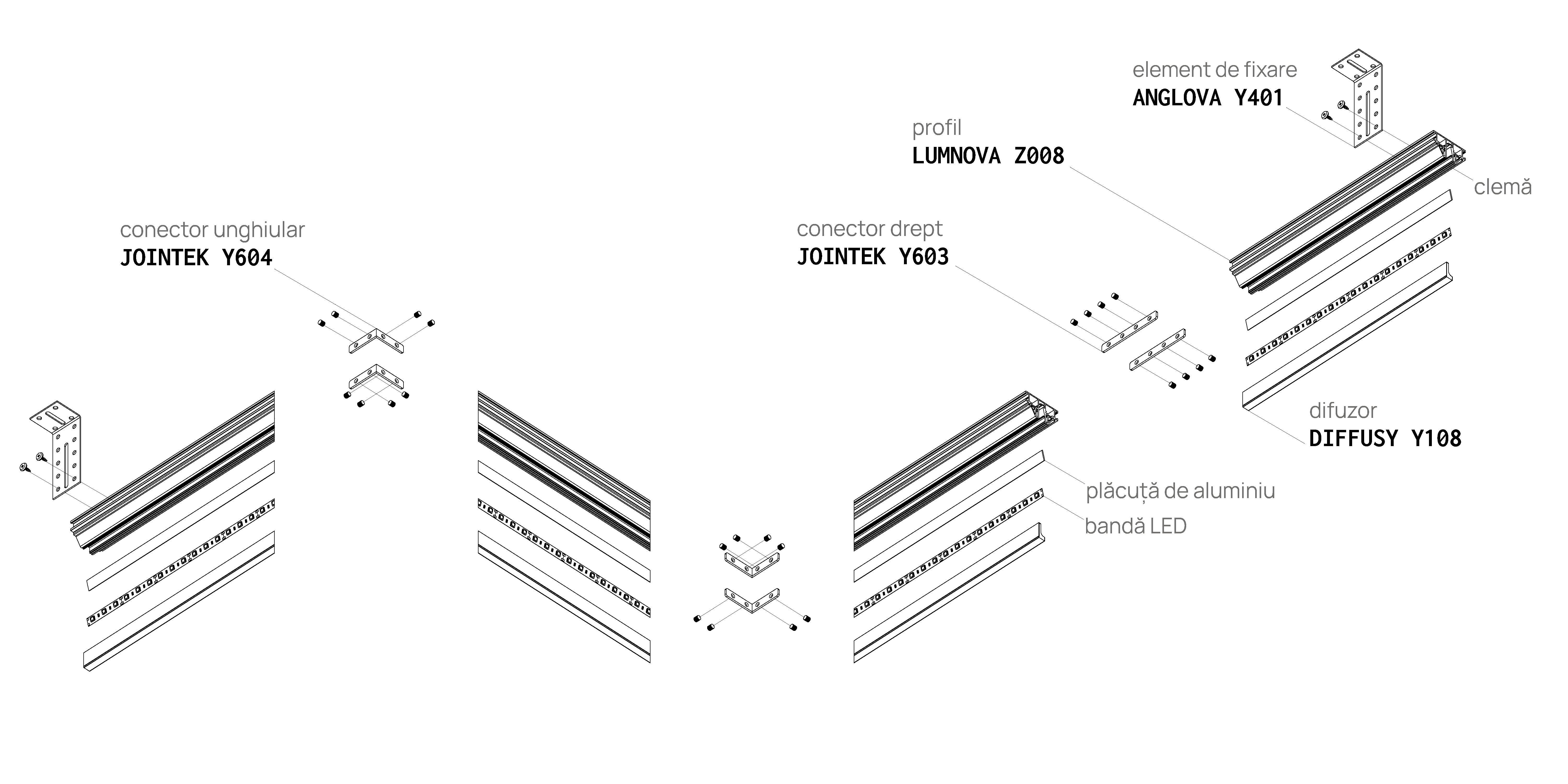

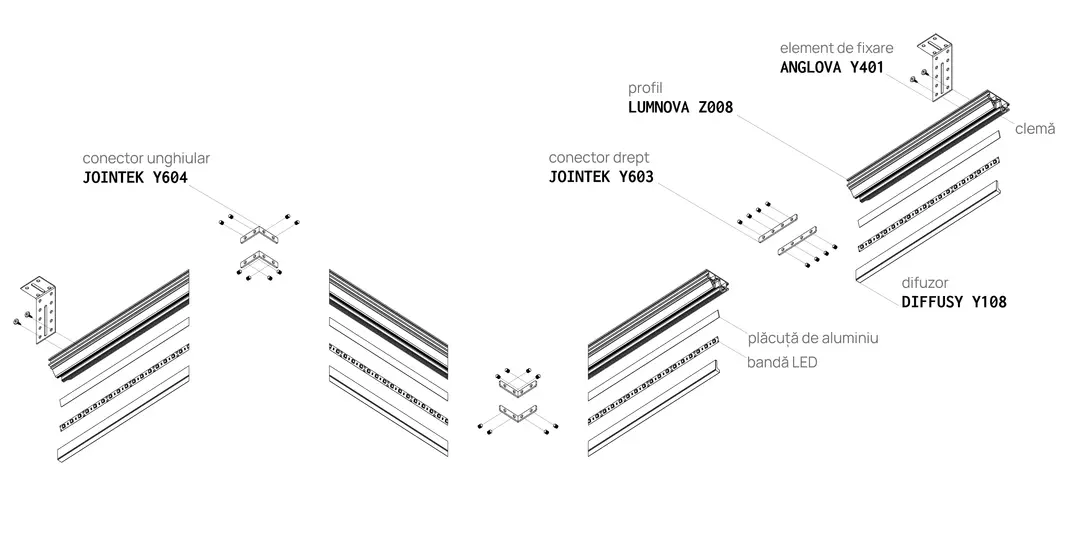

installation diagram
profile in the interior
buy together
DIFFUSY Y108
7,78 EUR

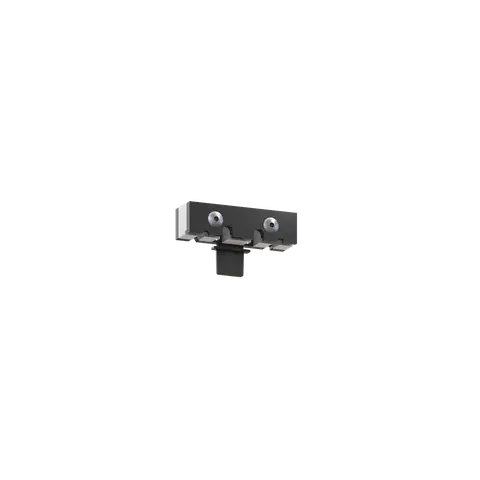

ENDCAPP Y209
12,97 EUR

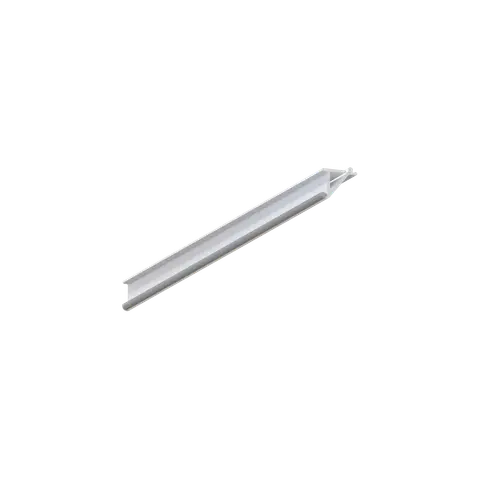

LOCKIUM Y301
1,56 EUR
ANGLOVA Y401
0,42 EUR

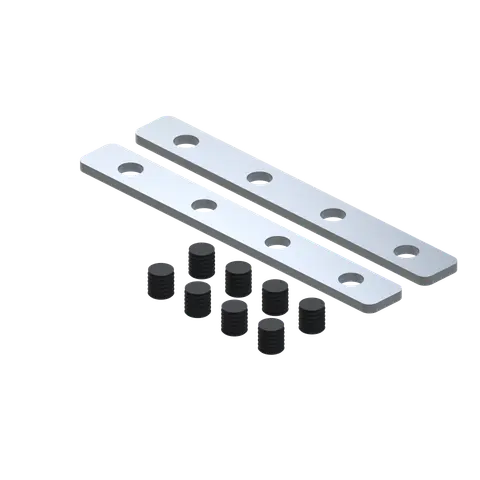

JOINTEK Y603
5,19 EUR

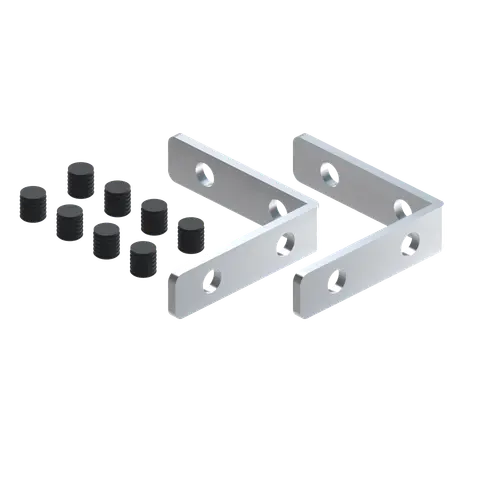

JOINTEK Y604
5,19 EUR

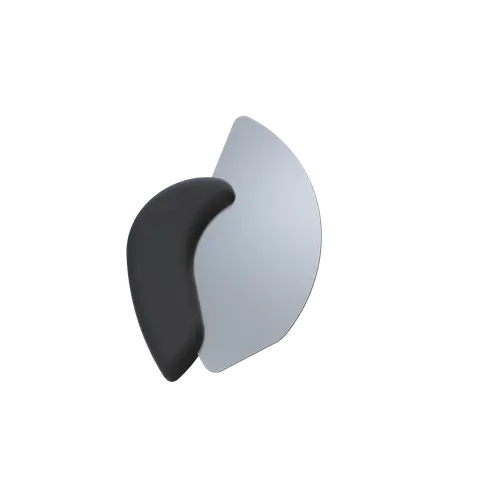

SPATULA Y804
