CLASSIX X101
€ 2,33
per m¹ excl. VAT
Colour: Mill finish
In stock, delivery 24–48 h
Description

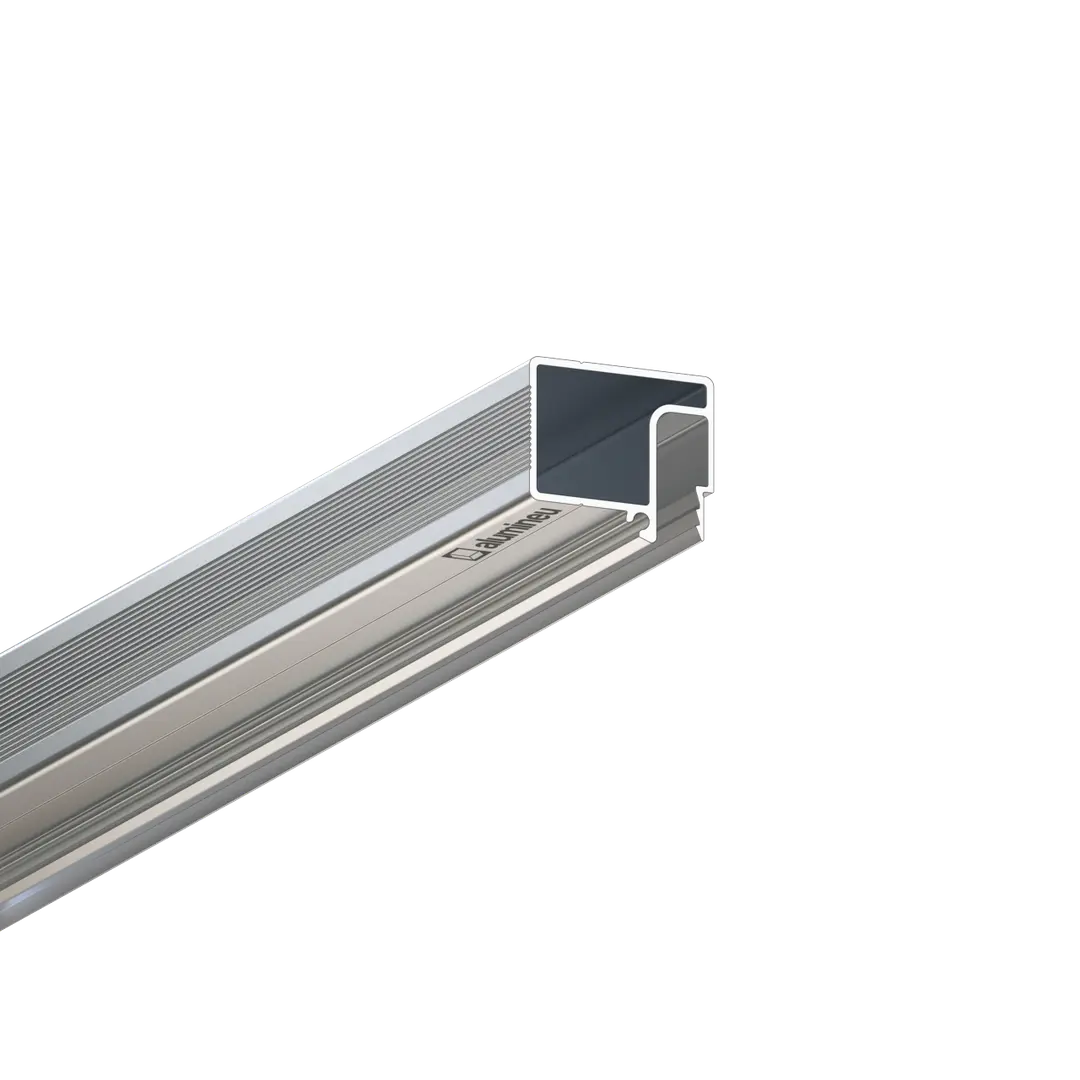

CLASSIX X101 aluminium profile for stretch ceilings with a harpoon fastening system for PVC membranes. The profile is designed for going around difficult walls that cannot be used for fastening.
The membrane harpoon is inserted into the vertical groove of the profile. Along the perimeter, the profile is covered with the INSERTA Y001 wall insert.
The harpoon is inserted with the SPATULA Y802 and SPATULA Y803 spatulas. The profile is fastened with the ANGLOVA Y401 mounting bracket, and the BANDURA X801 profile connects the sections.
technical specifications
- Brand:
- alumineu
- Material:
- aluminum
- Membrane attachment:
- harpoon
What's in the box
The profile is supplied in 2 m lengths, with no extra components.
Installation
Removal
Without damage

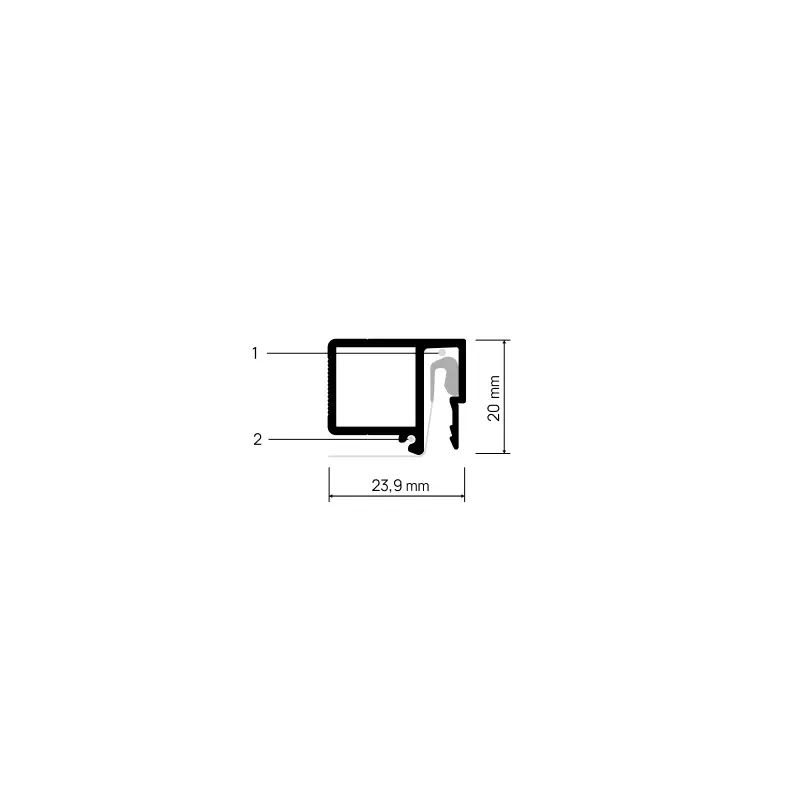

profile details
- 1Vertical groove for harpoon
- 2Joining groove

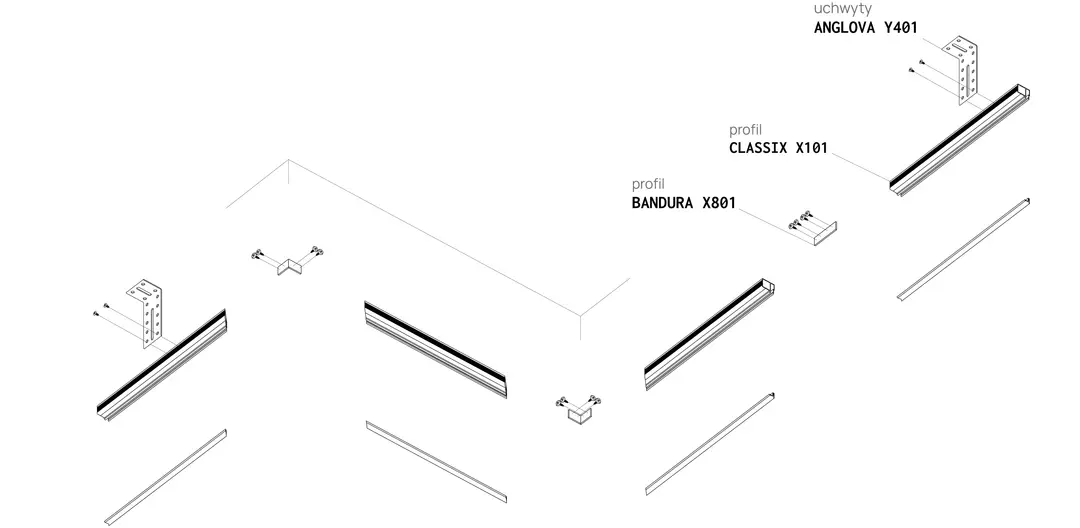

installation diagram

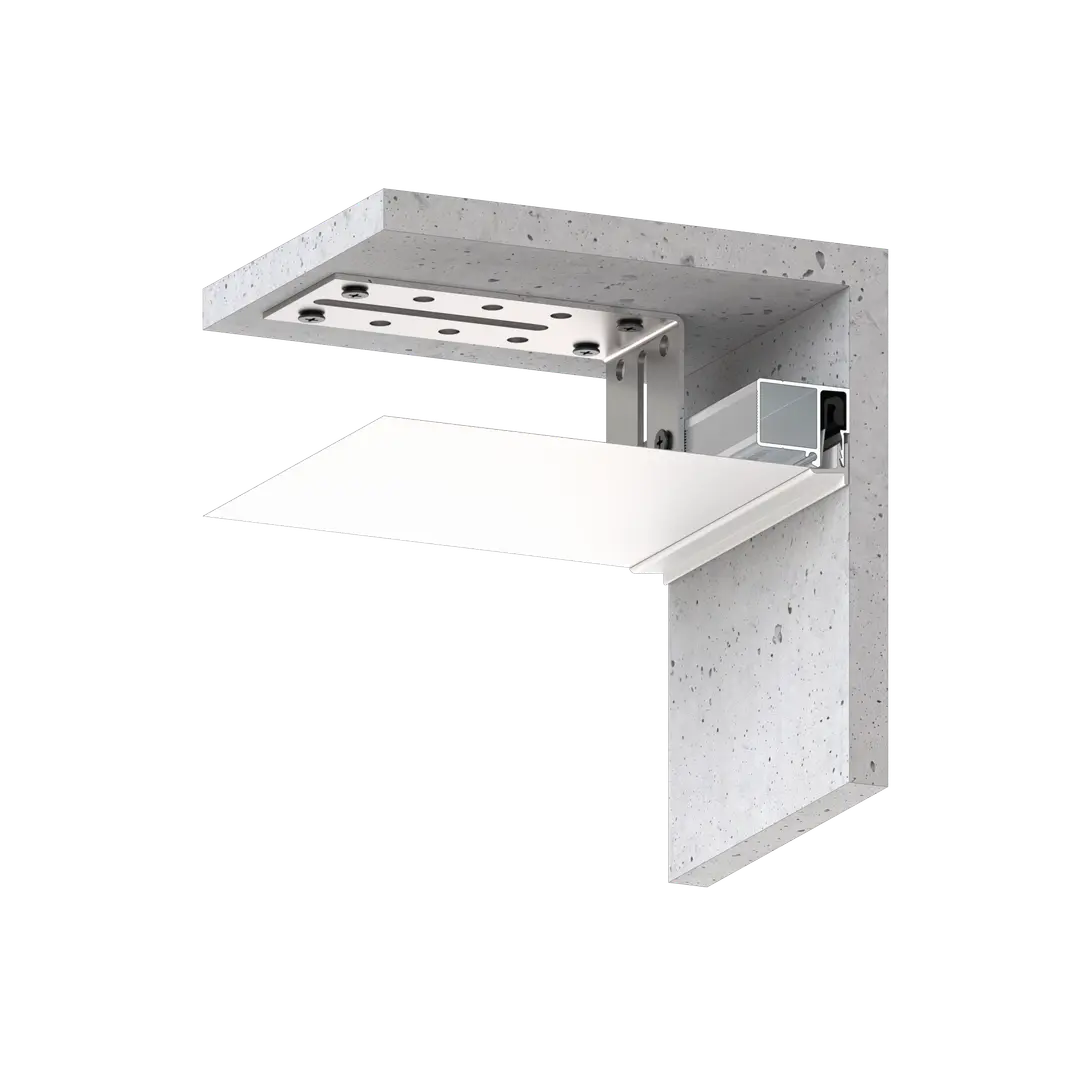

profile in the interior
buy together

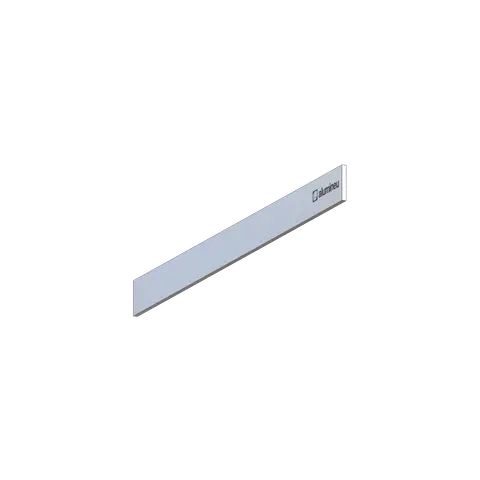

INSERTA Y001
0,67 EUR
ANGLOVA Y401
0,42 EUR

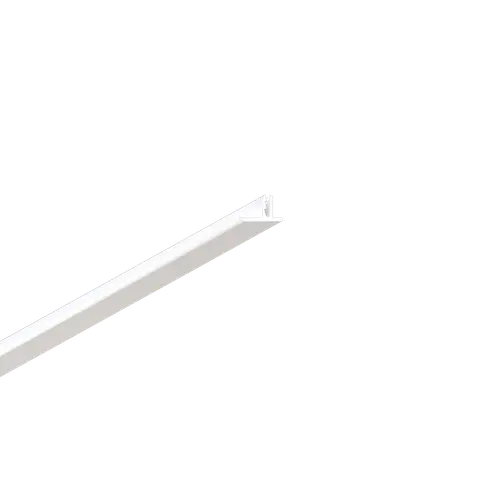

BANDURA X801
0,83 EUR

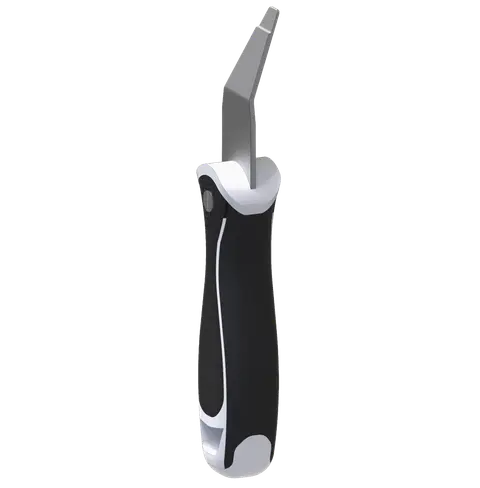

SPATULA Y802
23,09 EUR

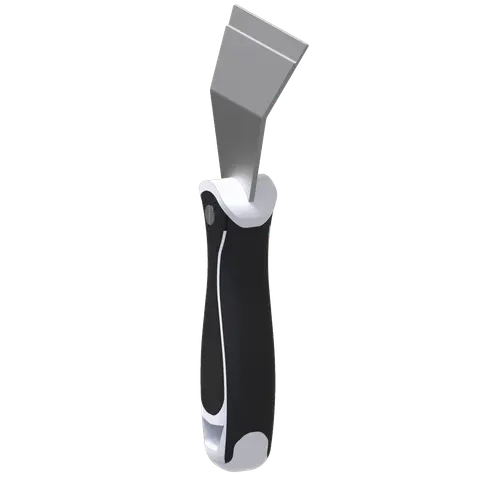

SPATULA Y803
23,09 EUR
