LIGHTRA X015
€ 3,11
per m¹ excl. VAT
Colour: Mill finish
In stock, delivery 24–48 h
Description

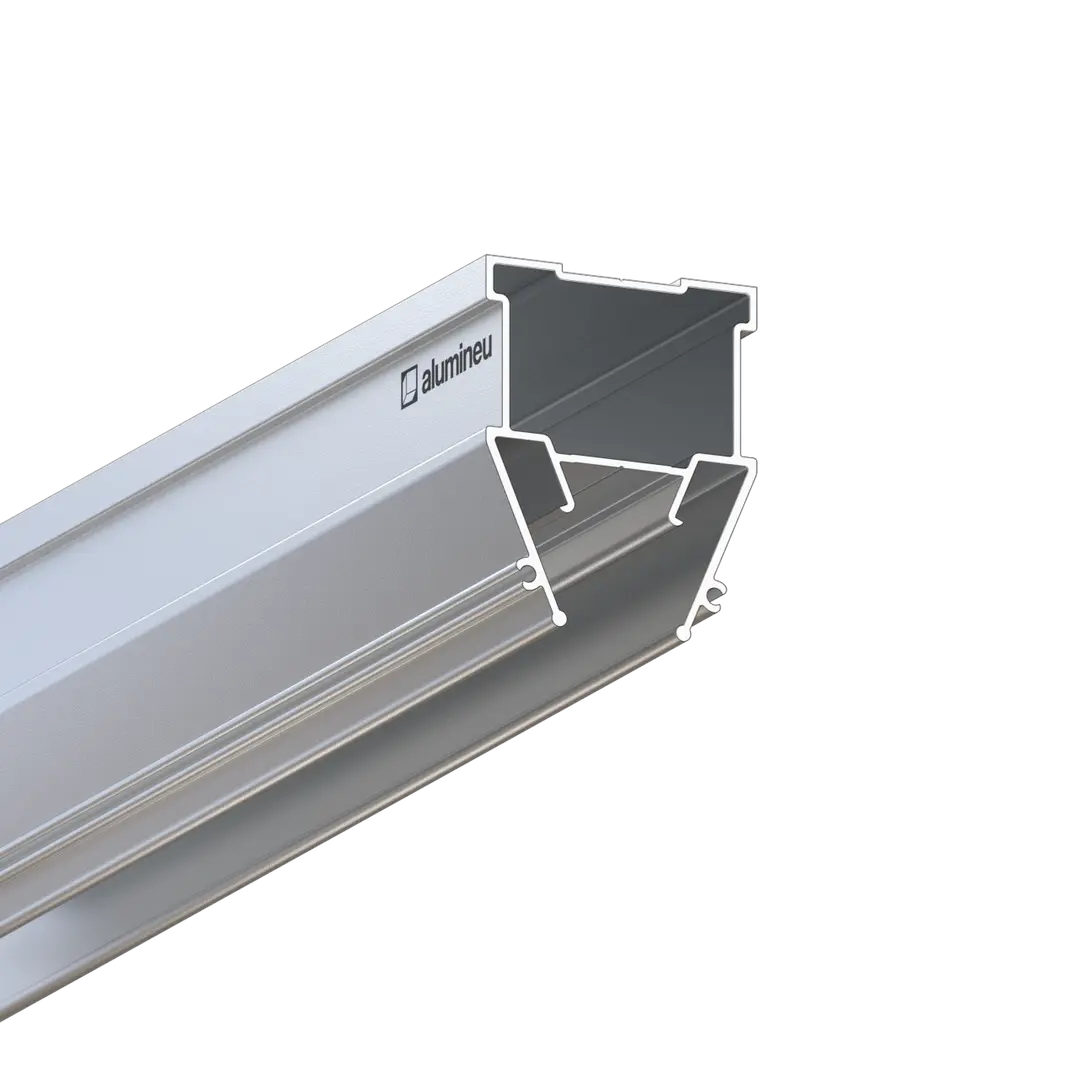

Aluminium dividing profile LIGHTRA X015 for making 15 mm wide light lines in stretch ceilings with a harpoon fastening system for PVC membranes. The compact light chamber creates slim light lines with a minimalist design while keeping lighting efficiency high and the structure neat in appearance.
The profile design ensures reliable membrane fixing, effective heat dissipation from the LED strip and even illumination without visible dots. High rigidity at low weight makes it possible to build straight, curved and complex geometric lighting structures that keep their precise shape.
The profile can be used as a standalone linear lighting system or as a base for installing the CURTINA X407 curtain profile, combining the light line and a concealed ceiling curtain track in one structure. Compatible with the DIFFUSY Y114 and INSERTA Y015 light diffusers.
technical specifications
- Brand:
- alumineu
- Material:
- aluminum
- Membrane attachment:
- harpoon
- Light line width:
- 15 mm
- Bending radius:
- >120 mm
What's in the box
The profile is supplied in 2 m lengths, with no extra components.
Installation
LED strip
Closed with a light diffuser.
LED strip
Easy access for replacement, without removing the ceiling membrane.

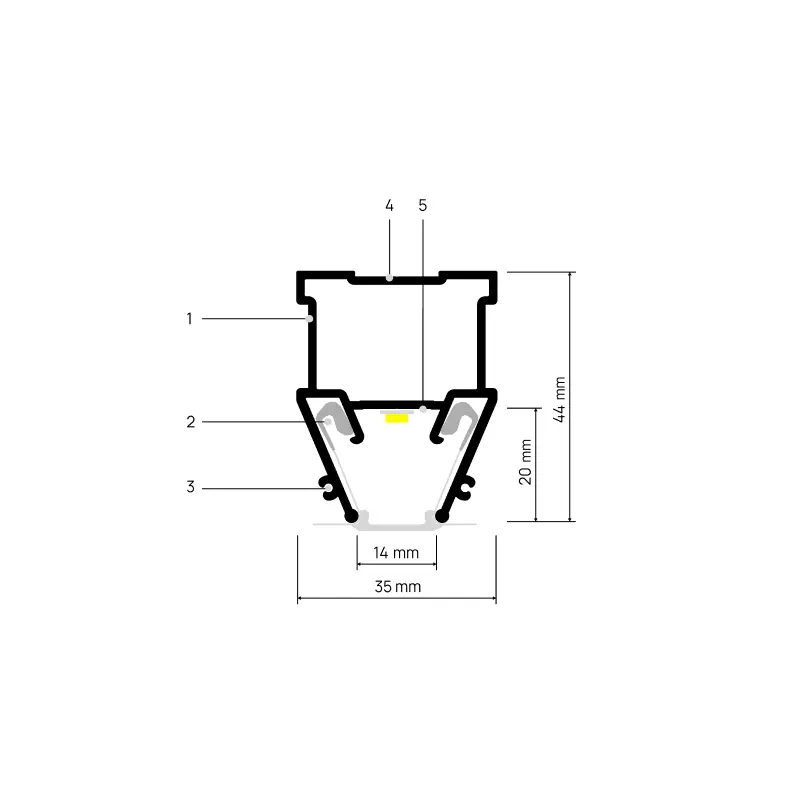

profile details
- 1Groove for band
- 2Angled groove for harpoon
- 3Joining grooves
- 4Marking for self-tapping screws Installation
- 5Shelf for LED strip

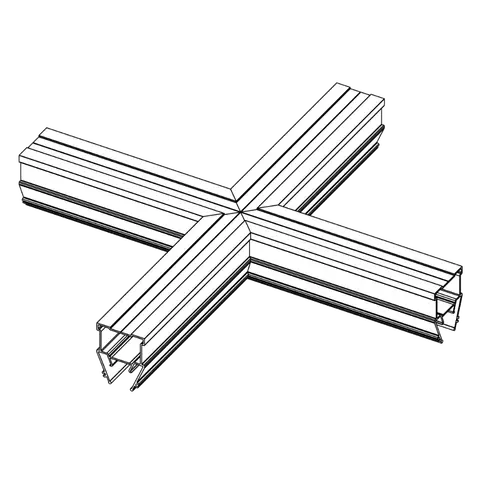

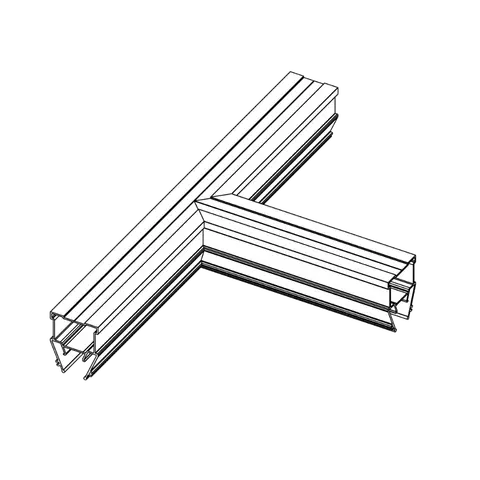

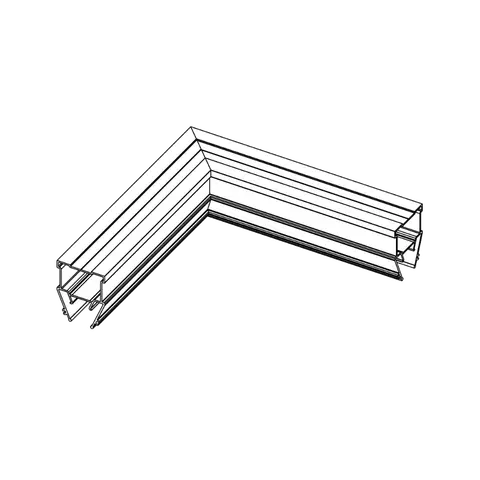

Corners
LIGHTRA NX015
9,34 EUR
LIGHTRA NX015
6,23 EUR
LIGHTRA NX015
4,67 EUR

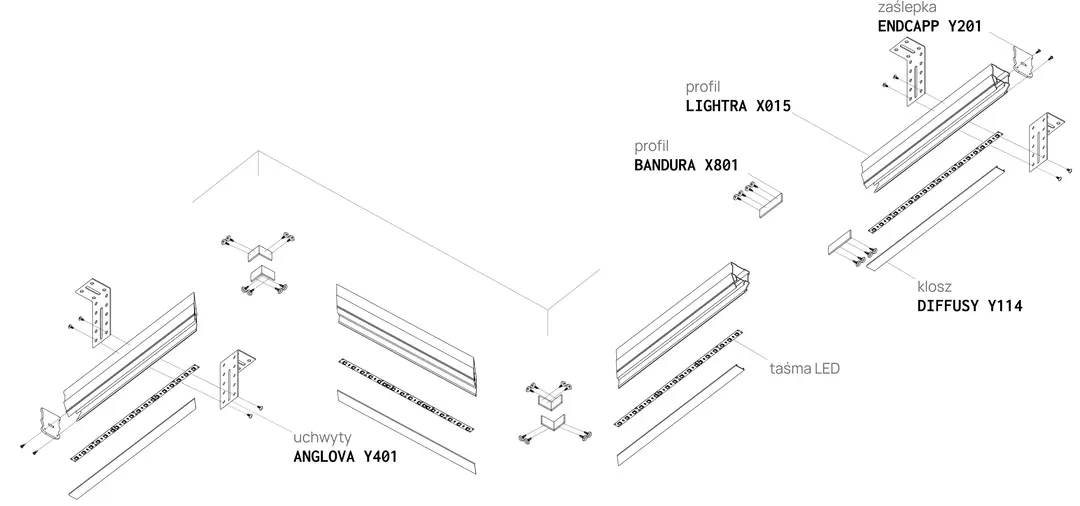

installation diagram

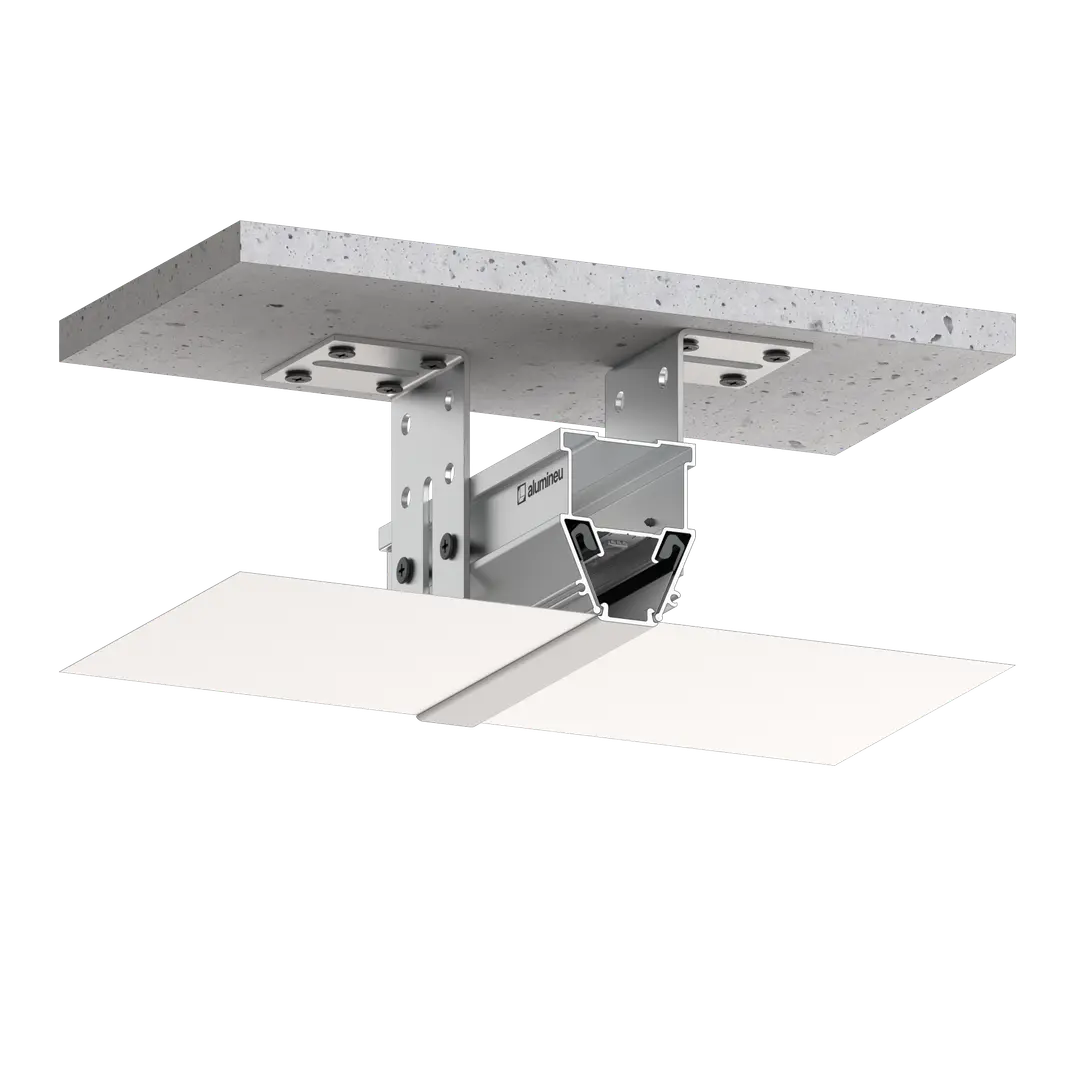

profile in the interior
buy together
INSERTA Y015
0,83 EUR
DIFFUSY Y114
1,56 EUR

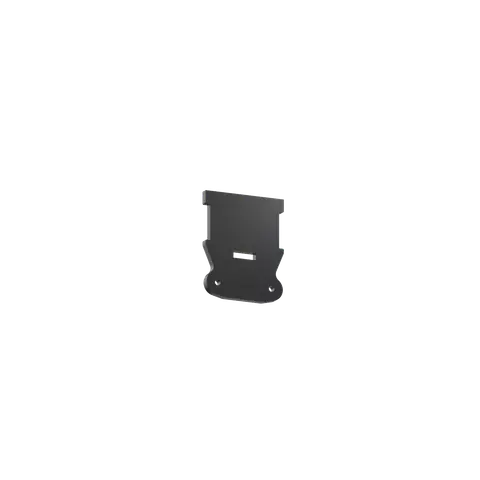

ENDCAPP Y201
