STRATOS X704
€ 6,23
per m¹ excl. VAT
Colour: Black matte
In stock, delivery 24–48 h
Description

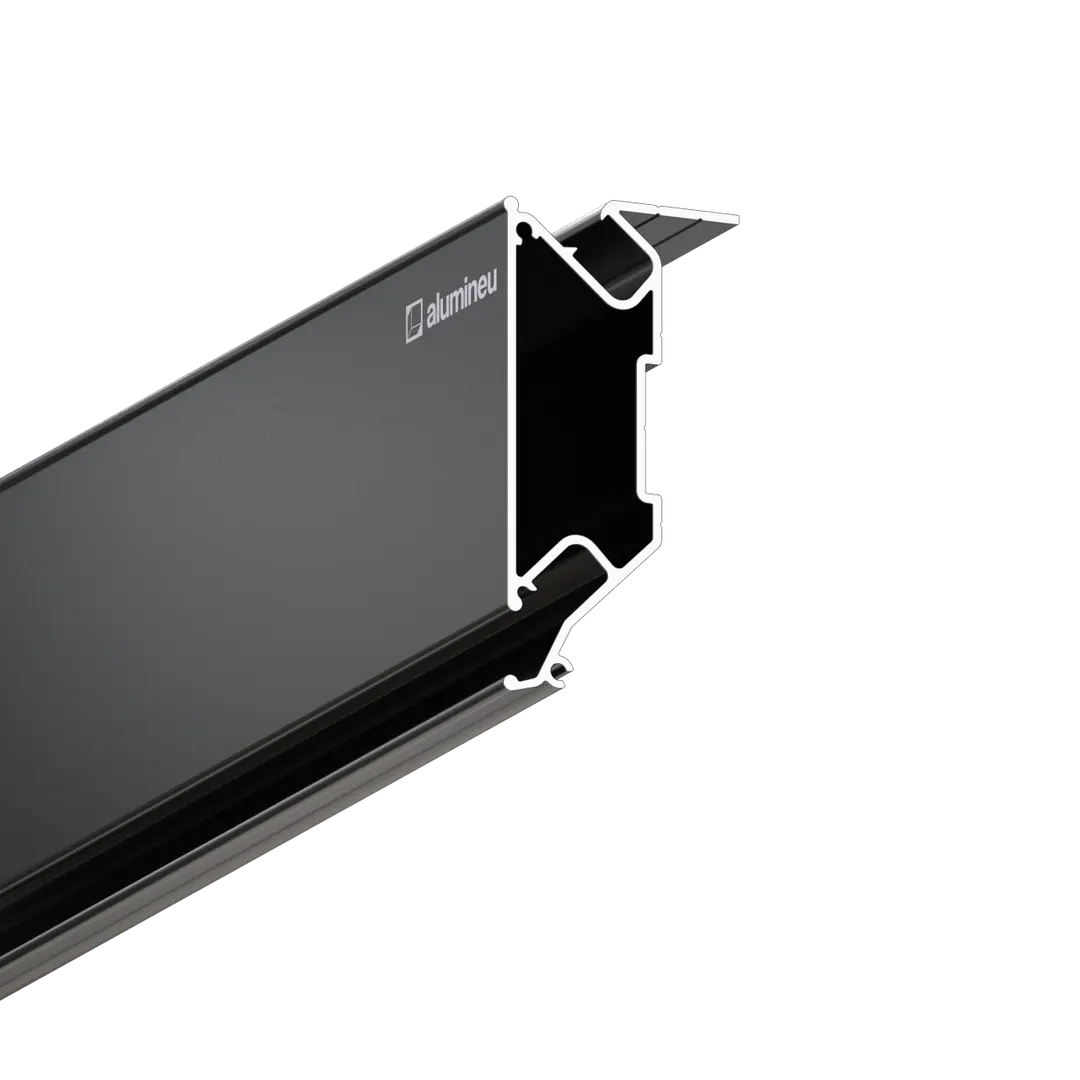

The STRATOS X704 aluminium profile is designed for stretch ceilings with a harpoon fastening system for PVC membranes. The profile is used to build structures and niches.
The profile creates a level transition 60 mm high with or without a fold of the lower membrane. Without a fold, the harpoon groove of the lower level is covered by the INSERTA Y008 decorative insert in the required colour. The profile can be used to assemble a decorative niche 61 mm deep, including a curved one.
The fixing spacing is no more than 1 m on straight sections and no more than 0.5 m on curved sections. The reinforced bending edge gives the profile rigidity.
technical specifications
- Brand:
- alumineu
- Material:
- aluminum
- Membrane attachment:
- harpoon
- Bending radius:
- >120 mm
- Level transition:
- 62 mm
What's in the box
The profile is supplied in 2 m lengths, with no extra components.
Installation
Removal
Without damage
Fastening
Fixing spacing not exceeding 1 m on straight sections and 0.5 m on curved sections.

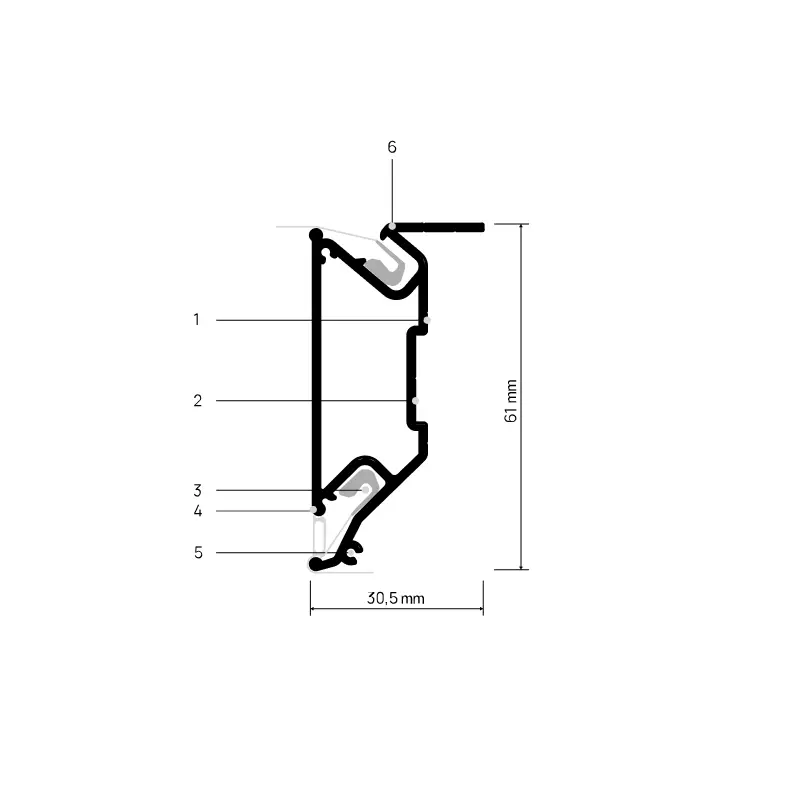

profile details
- 1Joining groove
- 2Angled groove for harpoon
- 3Groove for band
- 4Marking for self-tapping screw Installation
- 5Reinforced bumper for rigidity
- 6Shelf for insert INSERTA Y008

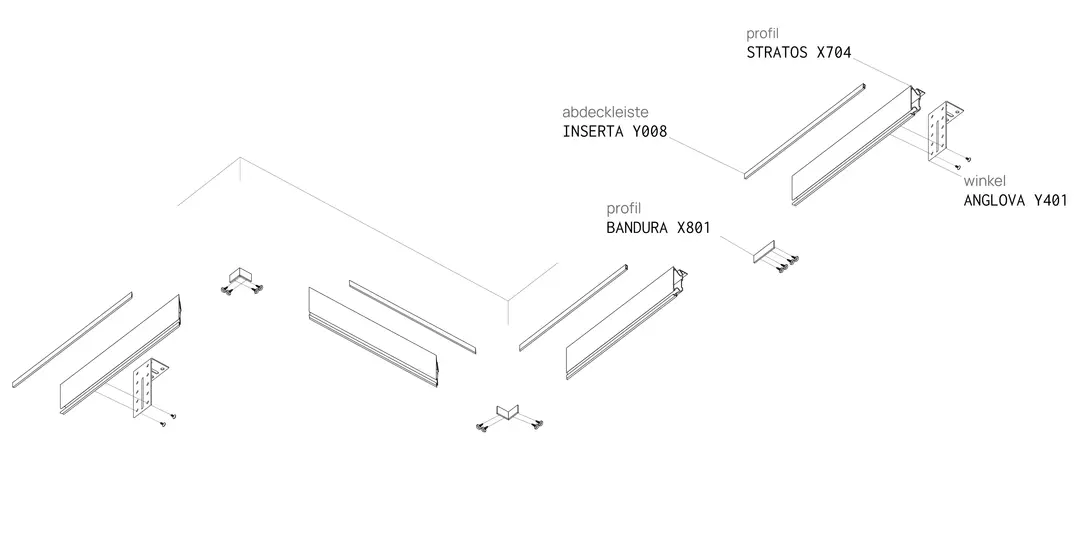

installation diagram

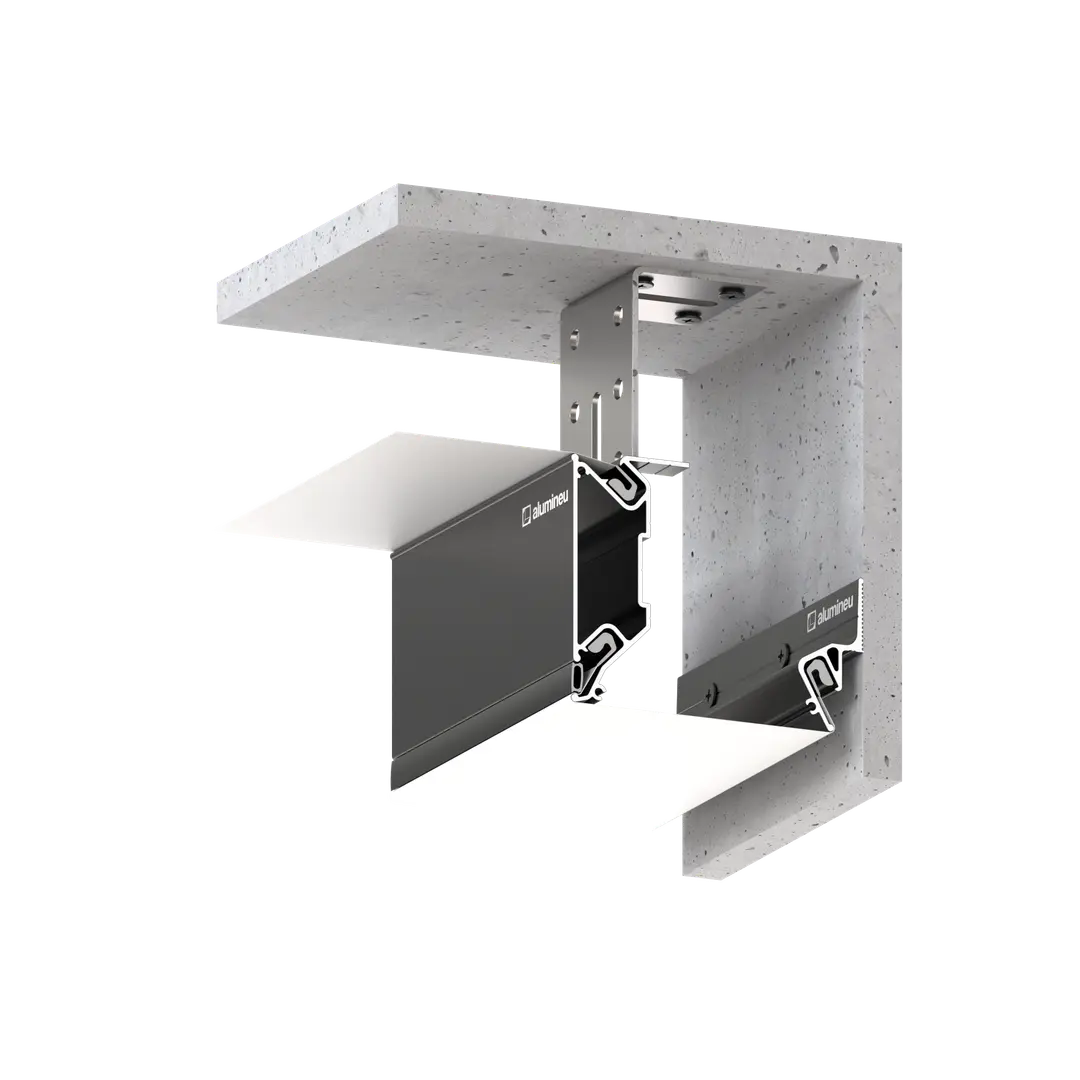

profile in the interior
