INVISIA X202

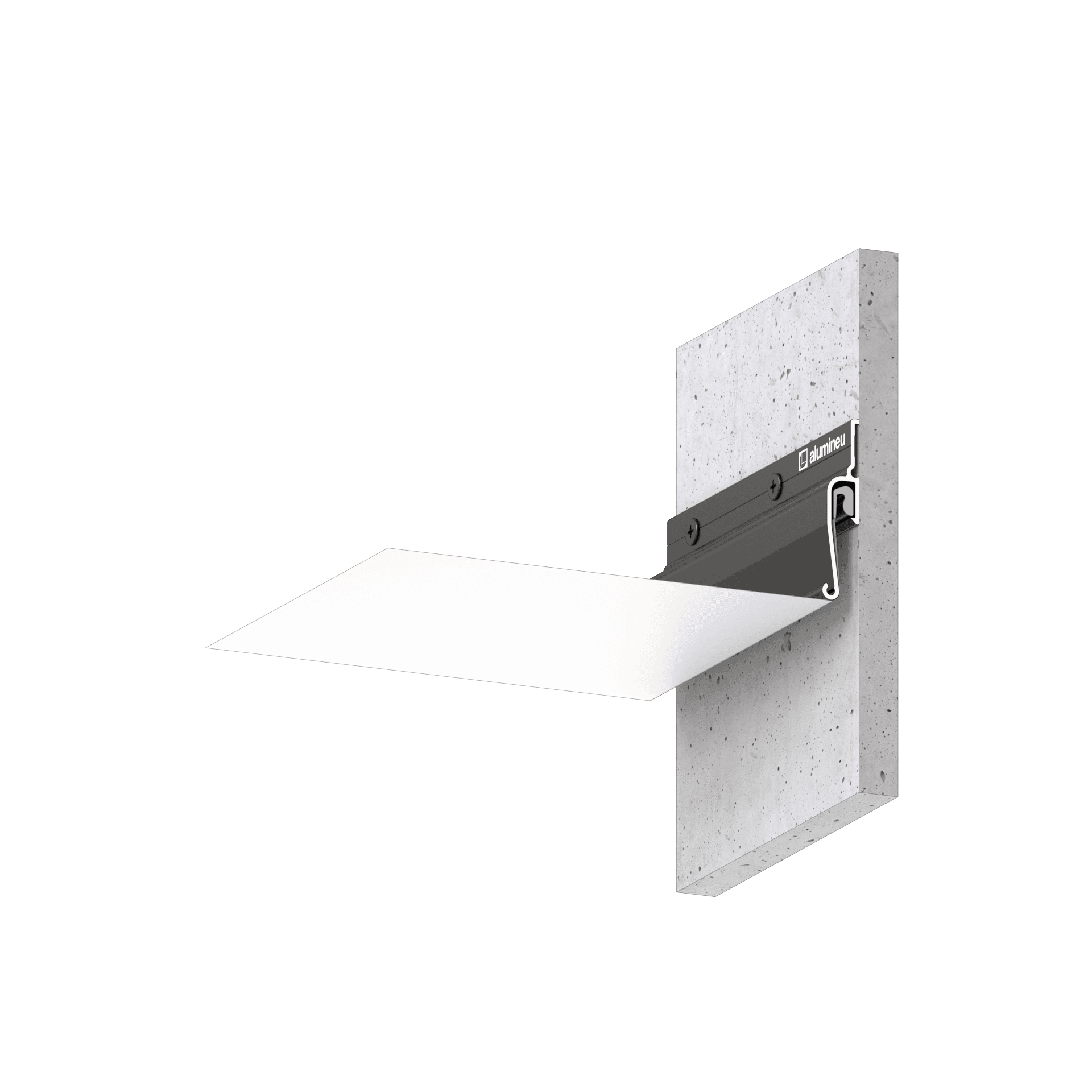

Aluminium shadow-gap profile for stretch ceilings with a harpoon fastening system for the PVC membrane. The profile uses direct harpoon insertion, combining the familiar installation method with a modern shadow-gap junction. Installation is carried out with standard spatulas and requires no change to the conventional working method.

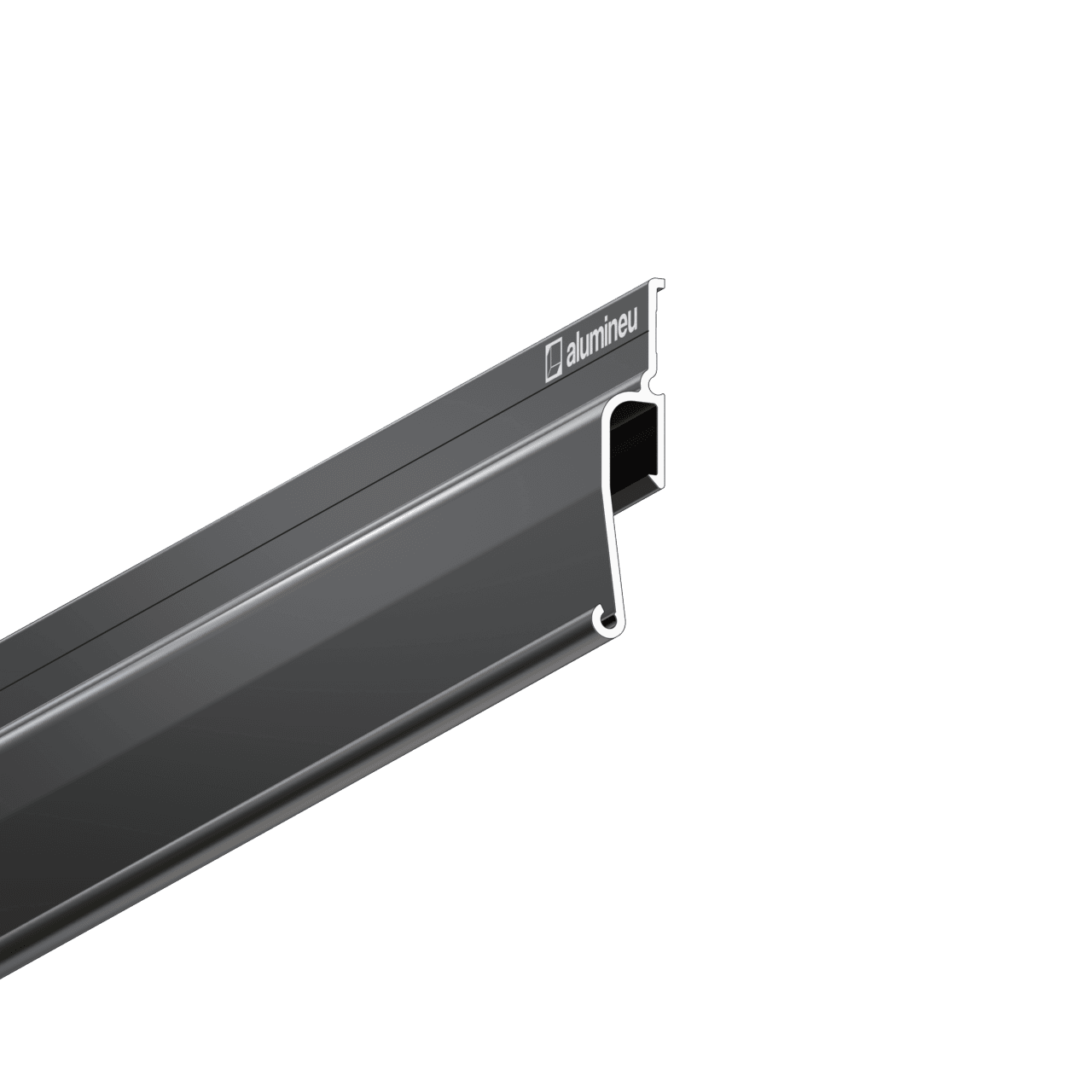

The increased installation height creates a deeper, more pronounced shadow gap. Its angled masking lip and matt black finish conceal the harpoon and the inside of the profile, producing a clean architectural junction without a decorative insert. The profile’s increased rigidity makes it particularly suitable for large rooms where the geometry must remain stable under membrane tension.

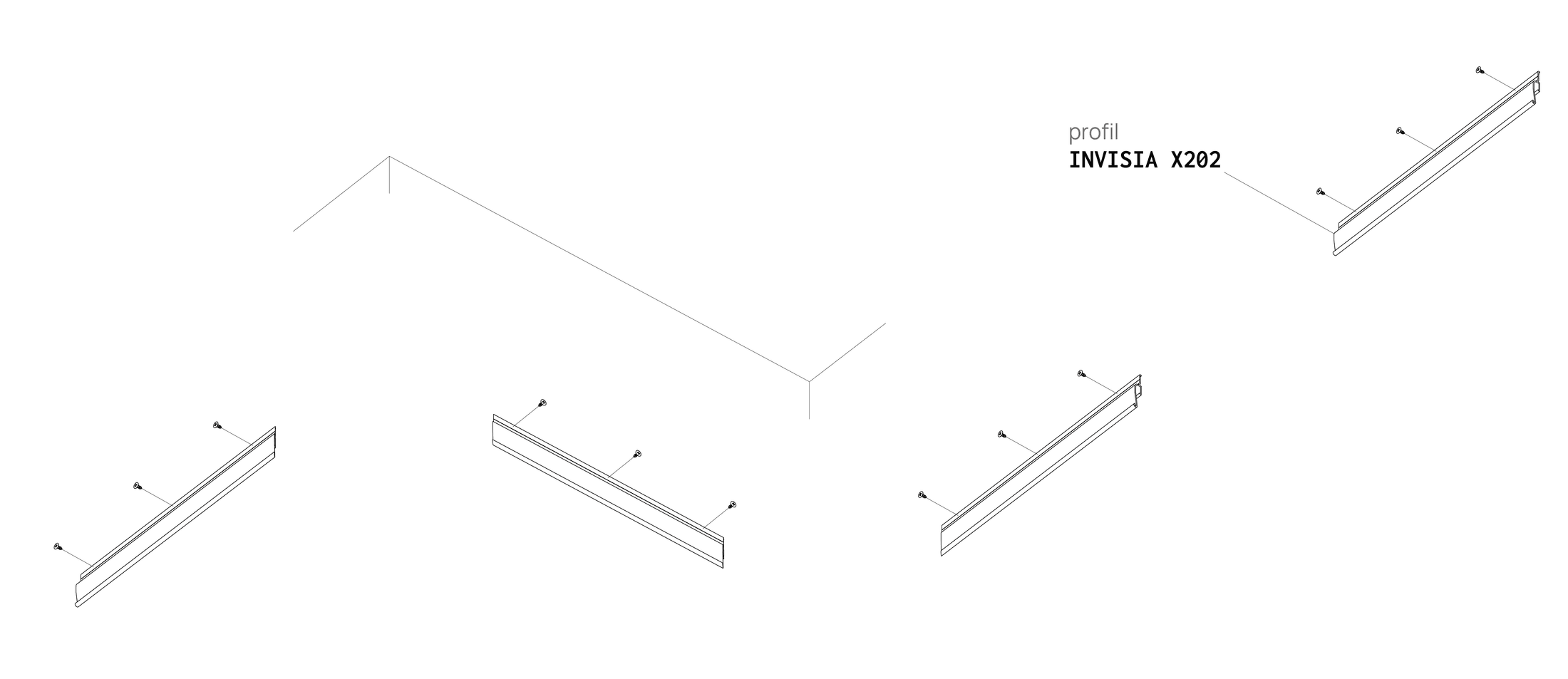

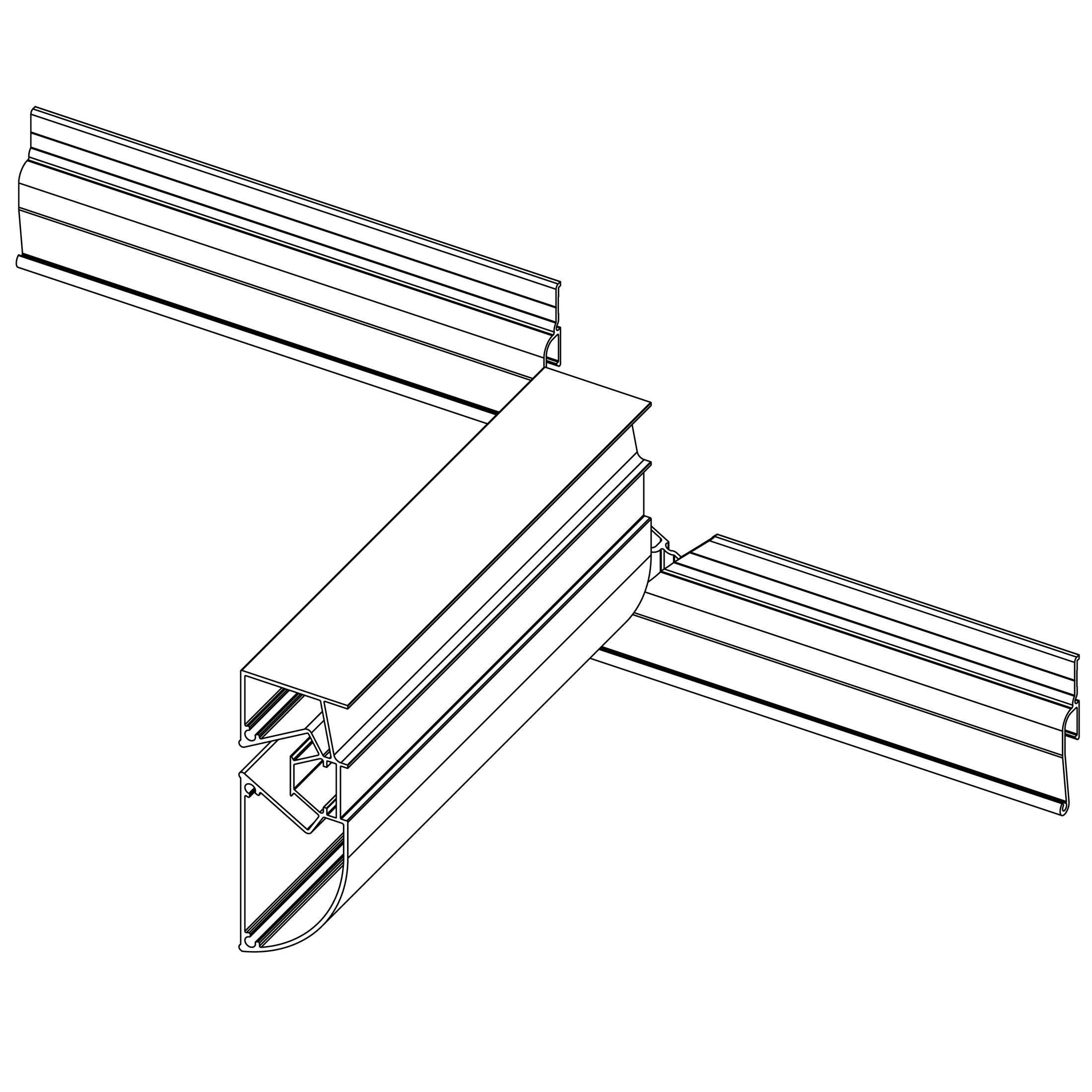

A groove for a 2 mm joining pin allows adjacent profile sections to be aligned precisely and prevents level differences at the joints. Internal and external corners can also be formed by notching and bending the profile, reducing installation time and simplifying work with non-standard room geometry. INVISIA X202 is designed for shadow-gap ceilings requiring a pronounced junction and highly accurate assembly.
