CLASSIX X130
€ 1,01
per m¹ excl. VAT
Colour: Mill finish
Version
In stock, delivery 24–48 h
Description
CLASSIX X130 aluminium wall profile for single-level stretch ceilings with a harpoon fastening system for PVC membranes. The membrane harpoon is inserted into the vertical groove of the profile, and the markings on the profile show where to fasten it to the wall. Along the perimeter, the profile is covered with the INSERTA Y001 wall insert.
The profile is installed in one system with the CONTURA X601 and LIGHTRA X030 profiles. The harpoon is inserted with the SPATULA Y802 and SPATULA Y803 spatulas.
technical specifications
- Brand:
- alumineu
- Material:
- aluminum
- Profile weight:
- 129 g/m
- Membrane attachment:
- harpoon
What's in the box
The profile is supplied in 2 m lengths, with no extra components.
Installation
Removal
Without damage

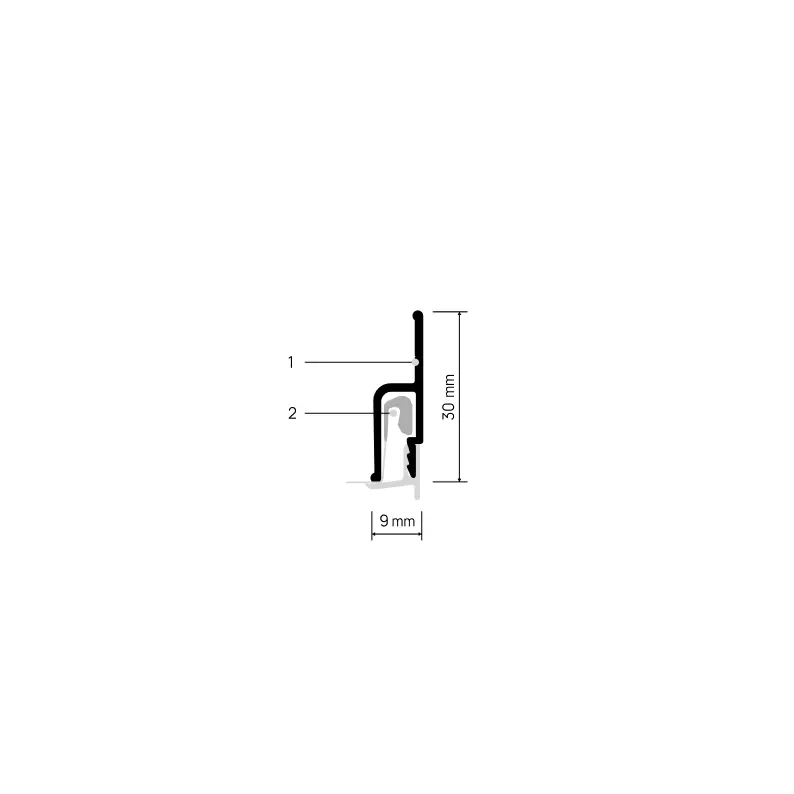

profile details
- 1Marking for wall mounting
- 2Vertical groove for harpoon

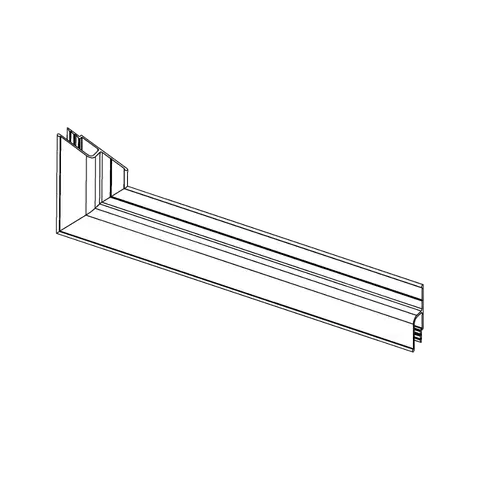

Corners
CLASSIX NX130
1,04 EUR

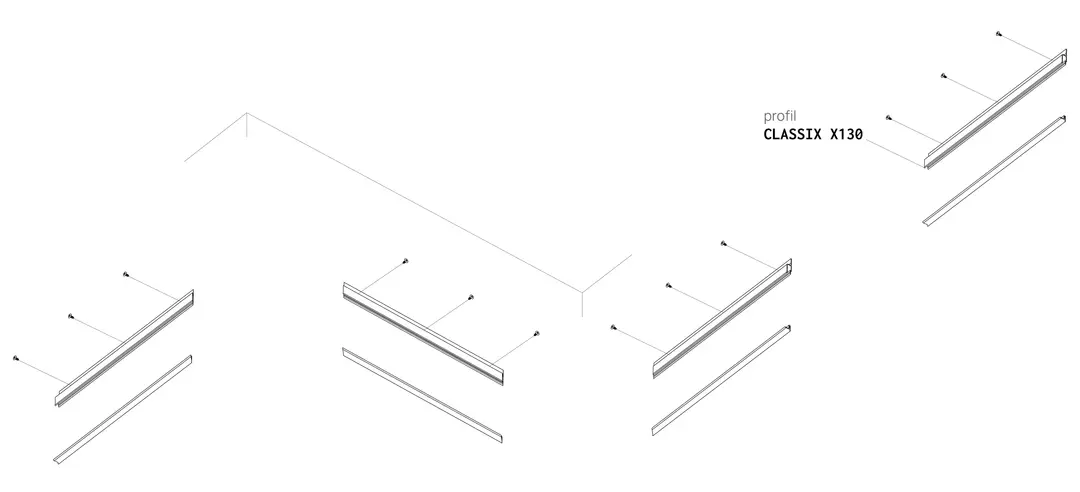

installation diagram

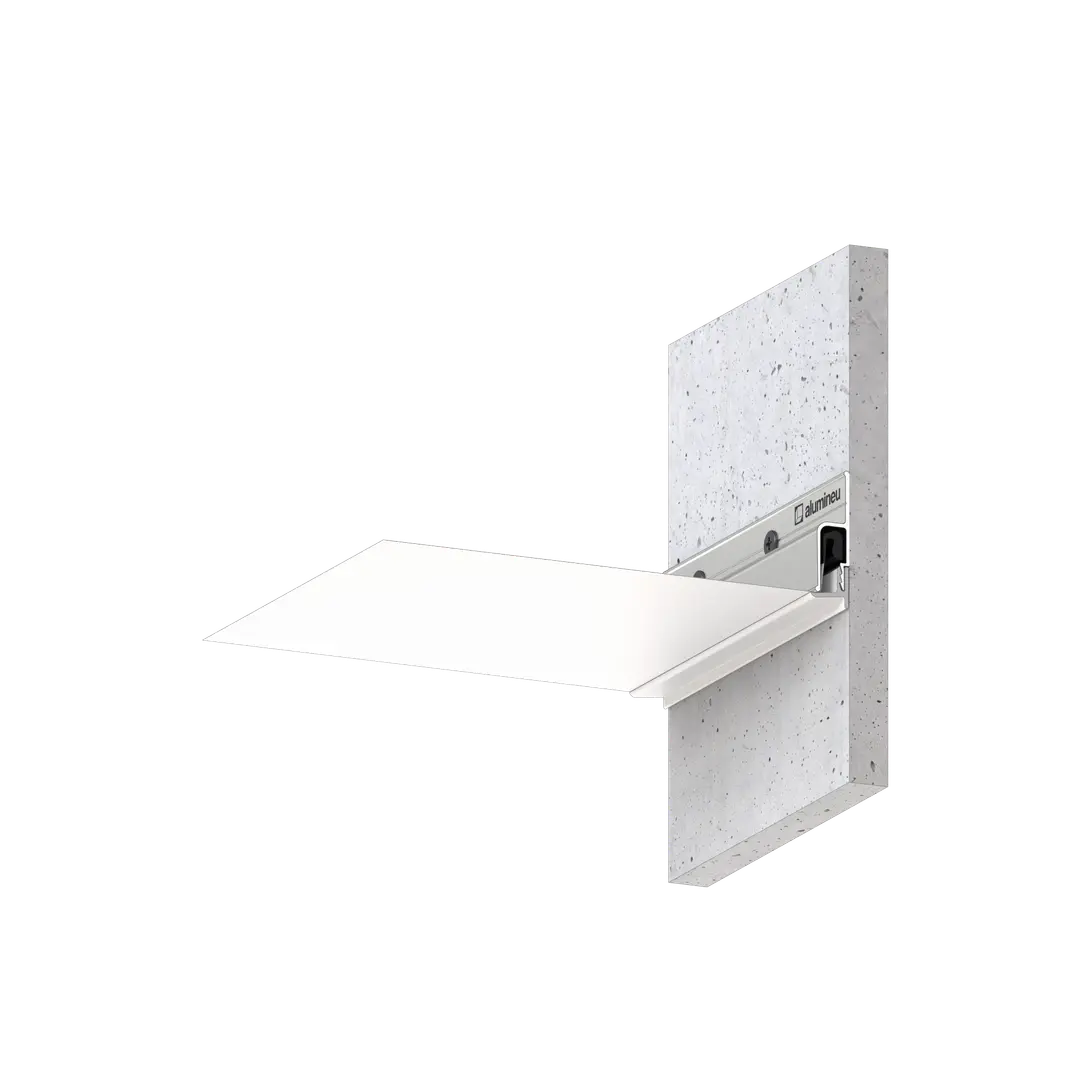

profile in the interior
profile connections
buy together
INSERTA Y001
0,67 EUR
SPATULA Y802
23,09 EUR
SPATULA Y803
23,09 EUR
