LIGHTRA X030
€ 4,15
per m¹ excl. VAT
Colour: Mill finish
In stock, delivery 24–48 h
Description
Aluminium dividing profile LIGHTRA X030 for making 30 mm wide light lines in stretch ceilings with a harpoon fastening system for PVC membranes. The 30 mm wide light chamber provides an optimal combination of decorative effect and light output, allowing both individual light elements and continuous light lines.
The profile design ensures reliable membrane fixing, effective heat dissipation from the LED strip and even illumination without visible dots. High rigidity at low weight makes it possible to build straight, curved and complex geometric lighting structures that keep their precise shape.
Precise profile jointing and the use of ready-made welded corners ensure high assembly accuracy and shorten installation time. The profile is suitable for closed light contours, individual linear elements and continuous wall-to-wall light lines. Compatible with the DIFFUSY Y130, DIFFUSY Y130 B and INSERTA Y030 light diffusers.
technical specifications
- Brand:
- alumineu
- Material:
- aluminum
- Membrane attachment:
- harpoon
- Light line width:
- >30 mm
- Bending radius:
- >500 mm
What's in the box
The profile is supplied in 2 m lengths, with no extra components.
Installation
LED strip
Closed with a light diffuser or diffuser in white or black color.
LED strip
Easy access for replacement, without removing the ceiling membrane.

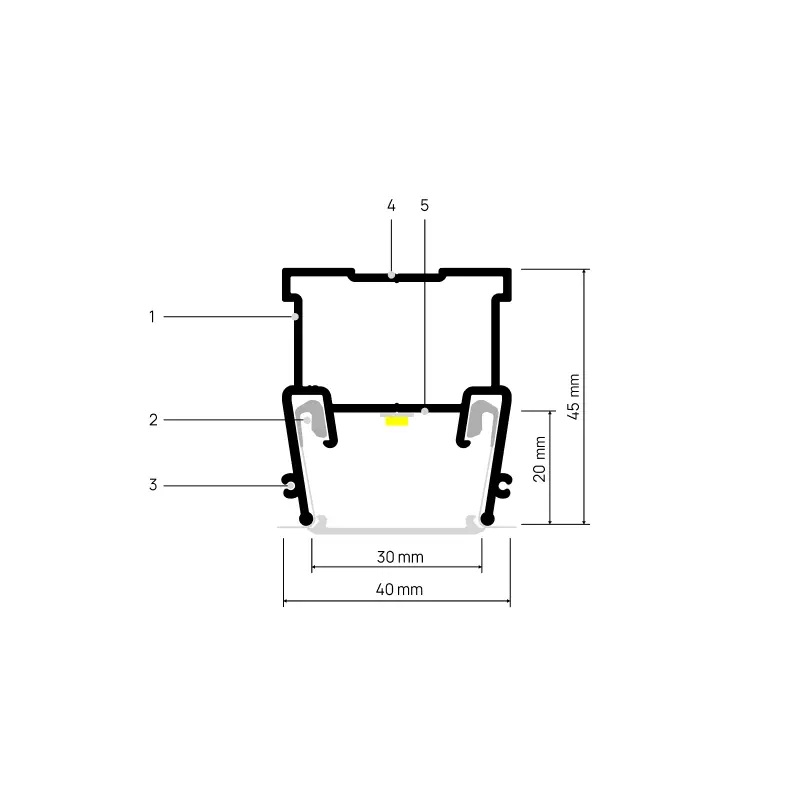

profile details
- 1Groove for band
- 2Angled groove for harpoon
- 3Joining grooves
- 4Marking for self-tapping screws Installation
- 5Shelf for LED strip

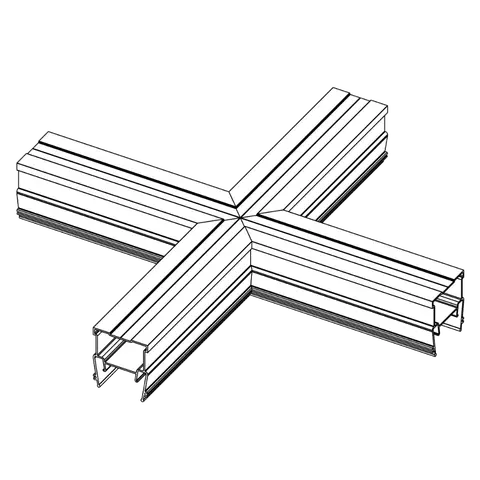

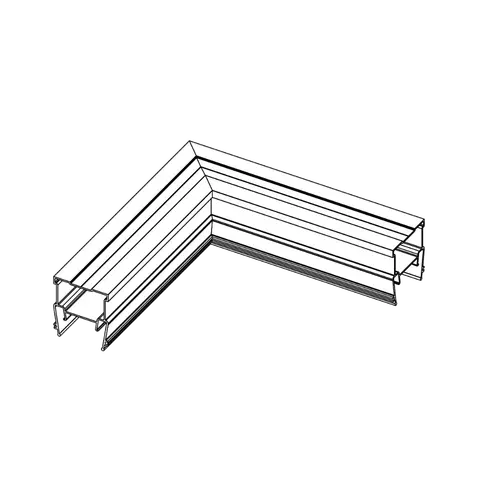

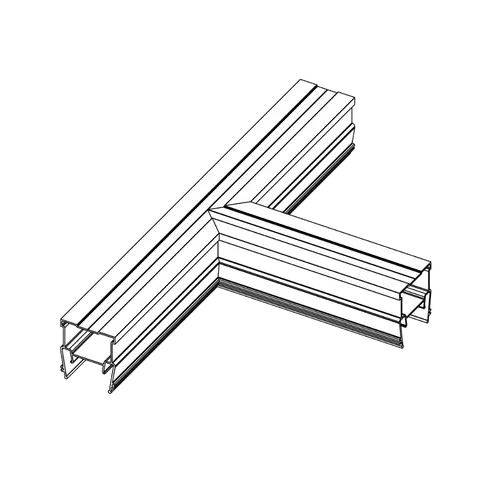

Corners
LIGHTRA NX030
7,26 EUR
LIGHTRA NX030
4,67 EUR
LIGHTRA NX030
9,34 EUR

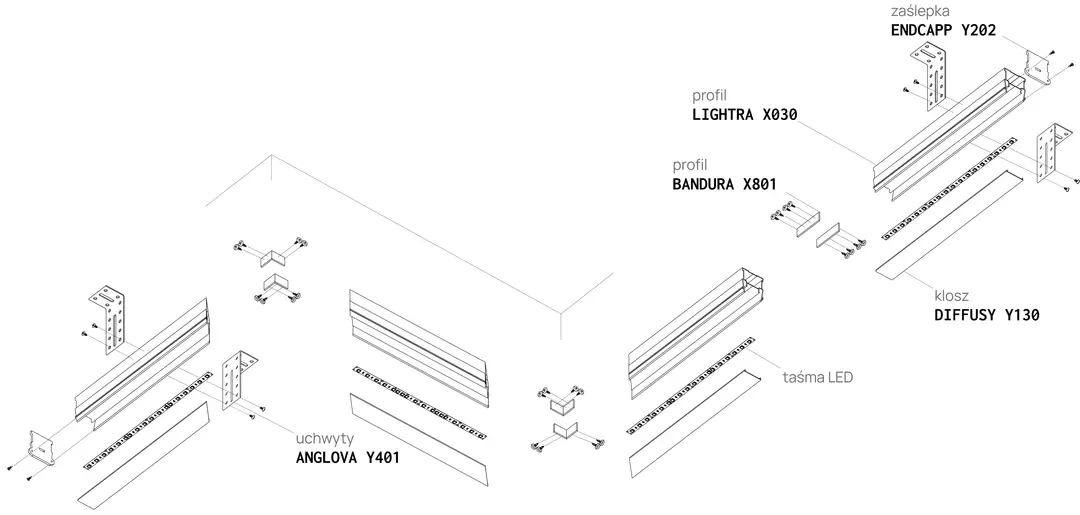

installation diagram

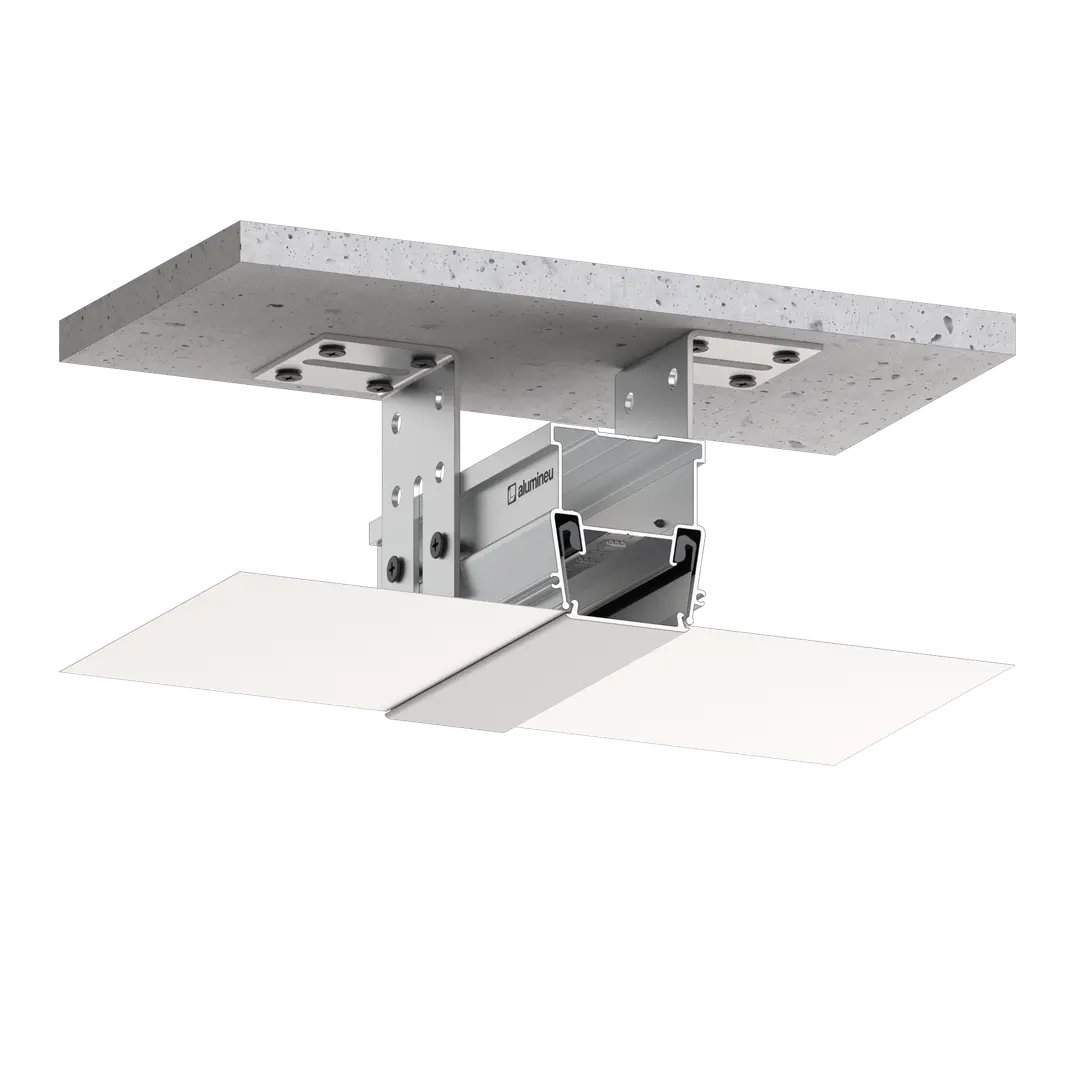

profile in the interior
profile connections
