LIGHTRA X050
€ 4,67
per m¹ excl. VAT
Colour: Mill finish
In stock, delivery 24–48 h
Description

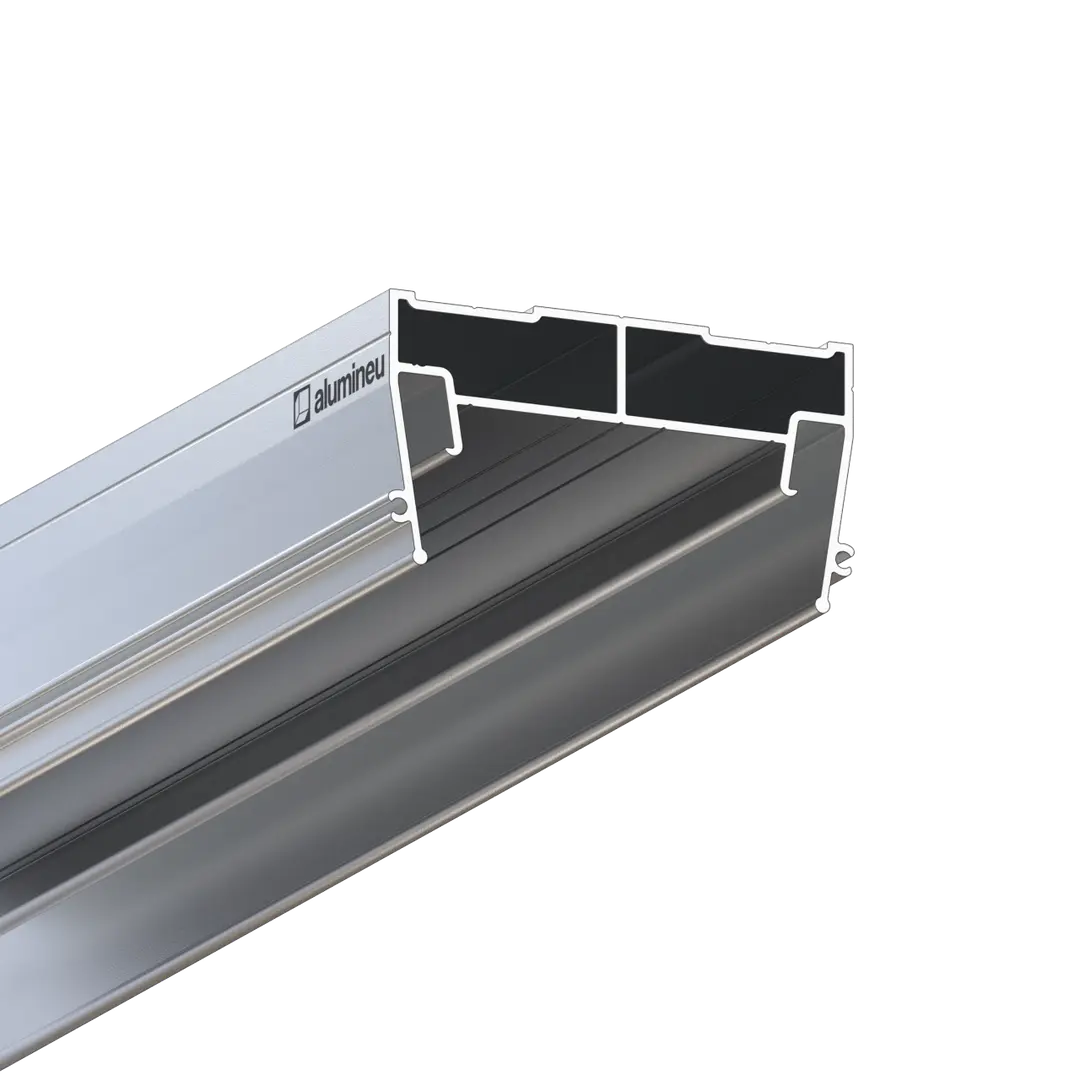

Aluminium dividing profile LIGHTRA X050 for making 50 mm wide light lines in stretch ceilings with a harpoon fastening system for PVC membranes. The wider light chamber allows one or two rows of LED strip to be installed, providing high light output and extending the use of the profile – from decorative lighting to general room lighting.
The profile design ensures reliable membrane fixing, effective heat dissipation from the LED strip and even illumination without visible dots. High rigidity at low weight makes it possible to build straight, curved and complex geometric lighting structures that keep their precise shape.
Precise profile jointing and the use of ready-made welded corners ensure high assembly accuracy and shorten installation time. The profile is suitable for closed light contours, individual linear elements and continuous wall-to-wall light lines. Compatible with the DIFFUSY Y150, DIFFUSY Y150 B and INSERTA Y050 light diffusers.
technical specifications
- Brand:
- alumineu
- Material:
- aluminum
- Membrane attachment:
- harpoon
- Light line width:
- >50 mm
What's in the box
The profile is supplied in 2 m lengths, with no extra components.
Installation
LED strip
Closed with a white diffuser.
LED strip
Can be mounted in 4 rows.
LED strip
Easy access for replacement without removing the PVC membrane.

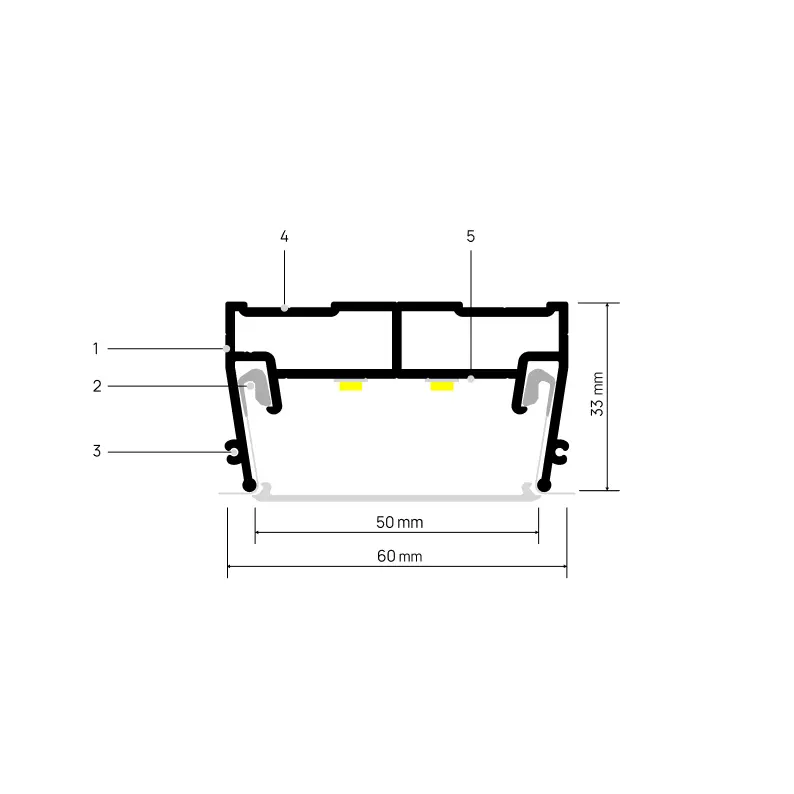

profile details
- 1Marking for self-tapping screws Installation
- 2Angled groove for harpoon
- 3Joining grooves
- 4Groove for band
- 5Shelf for LED strip

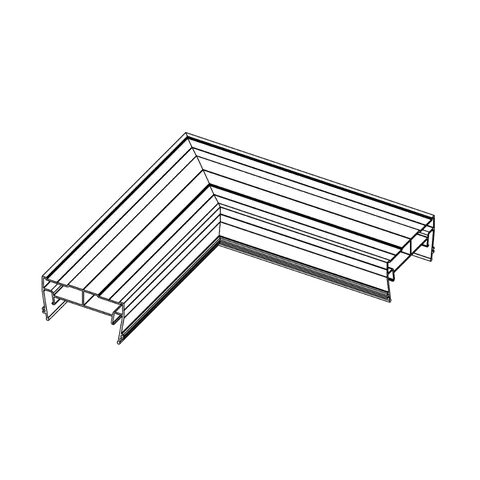

Corners
LIGHTRA NX050
8,30 EUR
LIGHTRA NX050
10,38 EUR
LIGHTRA NX050
5,19 EUR

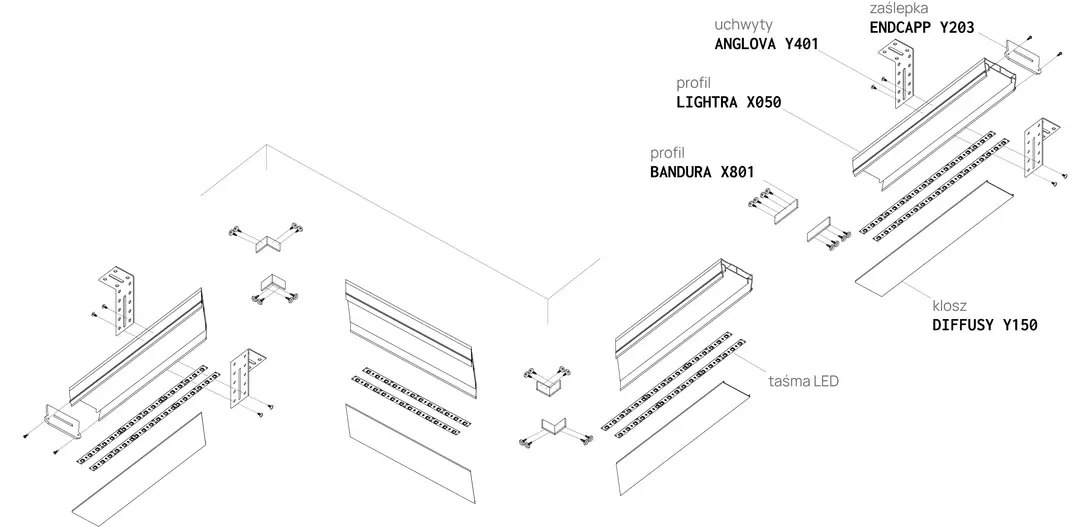

installation diagram

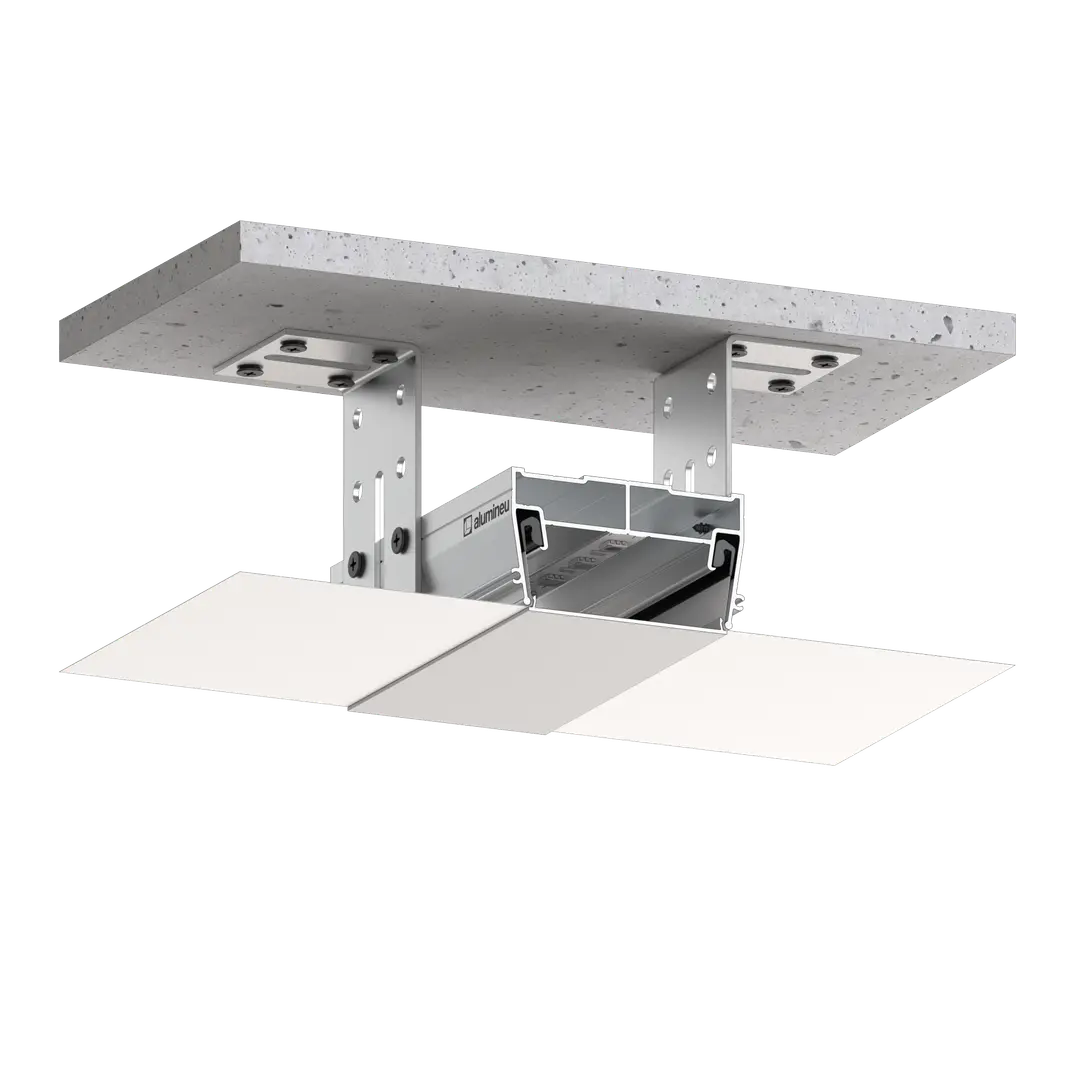

profile in the interior

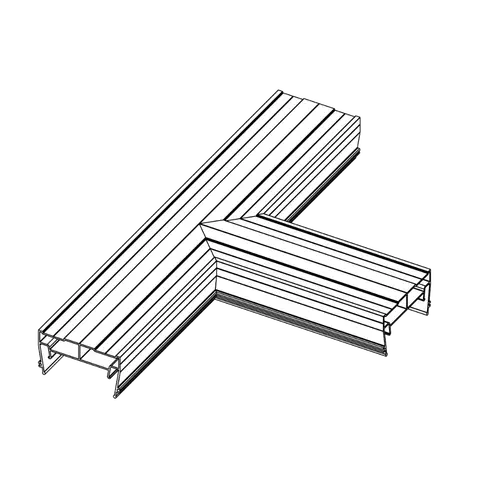

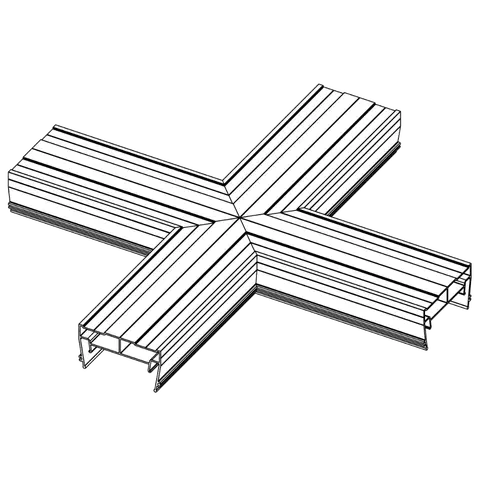

profile connections
