STRATOS X701
€ 7,26
per m¹ excl. VAT
Colour: Mill finish
In stock, delivery 24–48 h
Description
The STRATOS X701 aluminium profile is designed for multi-level stretch ceilings with a harpoon fastening system for PVC membranes. The profile creates a level transition 62 mm high and has no lighting.

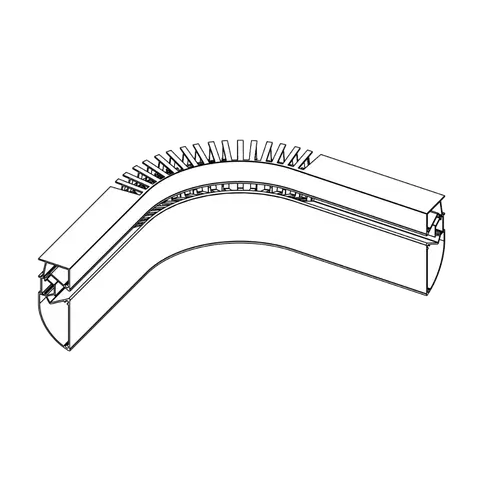

The membrane harpoon is guided into the corner groove of the profile. The INSERTA Y008 decorative insert covers the groove, so the groove is not visible after the stretch ceiling is installed. The reinforced bending edge gives the profile rigidity. The profile can be bent to a radius of 120 mm or more.
A ready-made STRATOS NX701 welded corner is produced for the inside radius corner. The profile is installed in one structure with the INVISIA X202 shadow gap profile.
technical specifications
- Brand:
- alumineu
- Material:
- aluminum
- Membrane attachment:
- harpoon
- Bending radius:
- >120 mm
- Level transition:
- 62 mm
What's in the box
The profile is supplied in 2 m lengths, with no extra components.
Installation
Removal
Without damage
Joining
Membrane cutting
Joining
If there are straight internal corners, the membrane cut is adjusted accordingly.

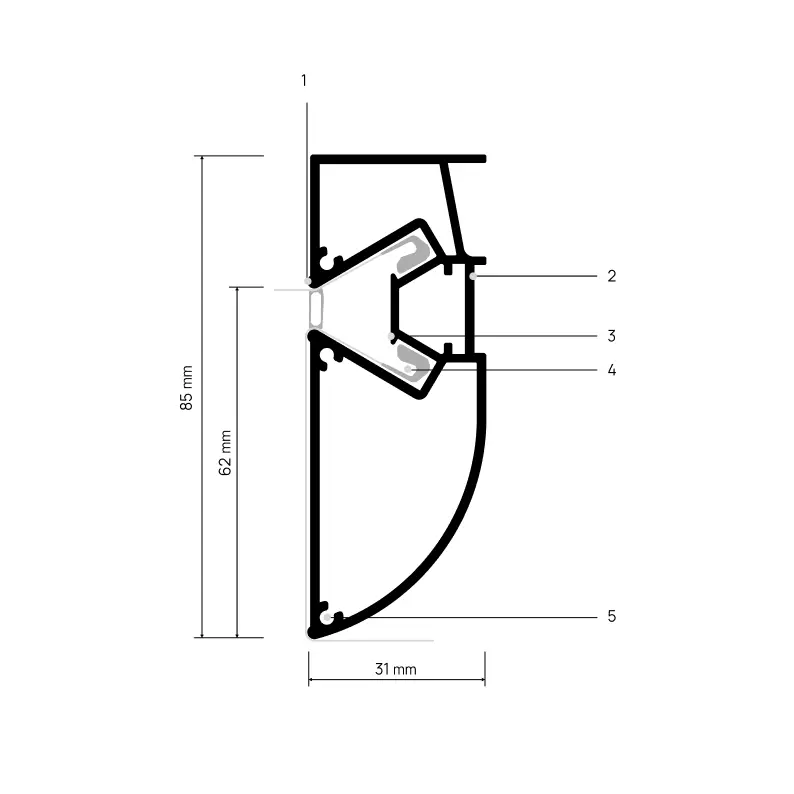

profile details
- 1Joining groove
- 2Angled groove for harpoon
- 3Groove for band
- 4Groove for insert
- 5Reinforced bumper for rigidity
Corners
STRATOS NX701
13,49 EUR

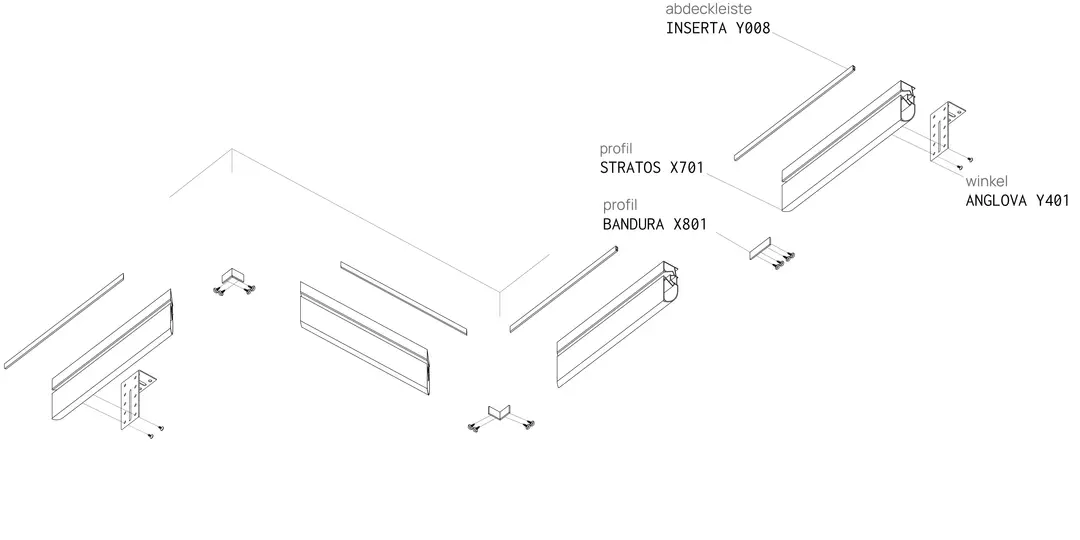

installation diagram

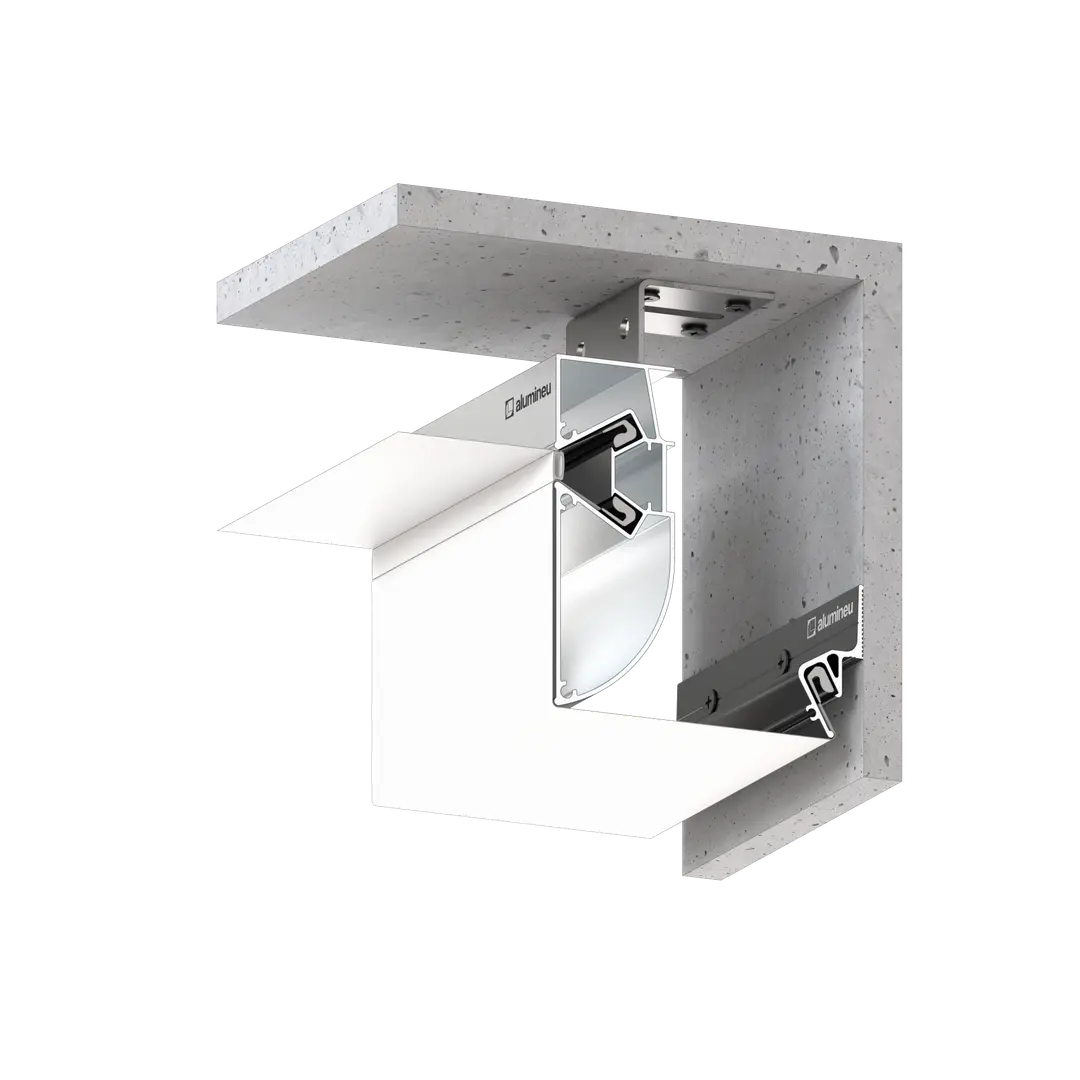

profile in the interior
profile connections
