INVISIA X202

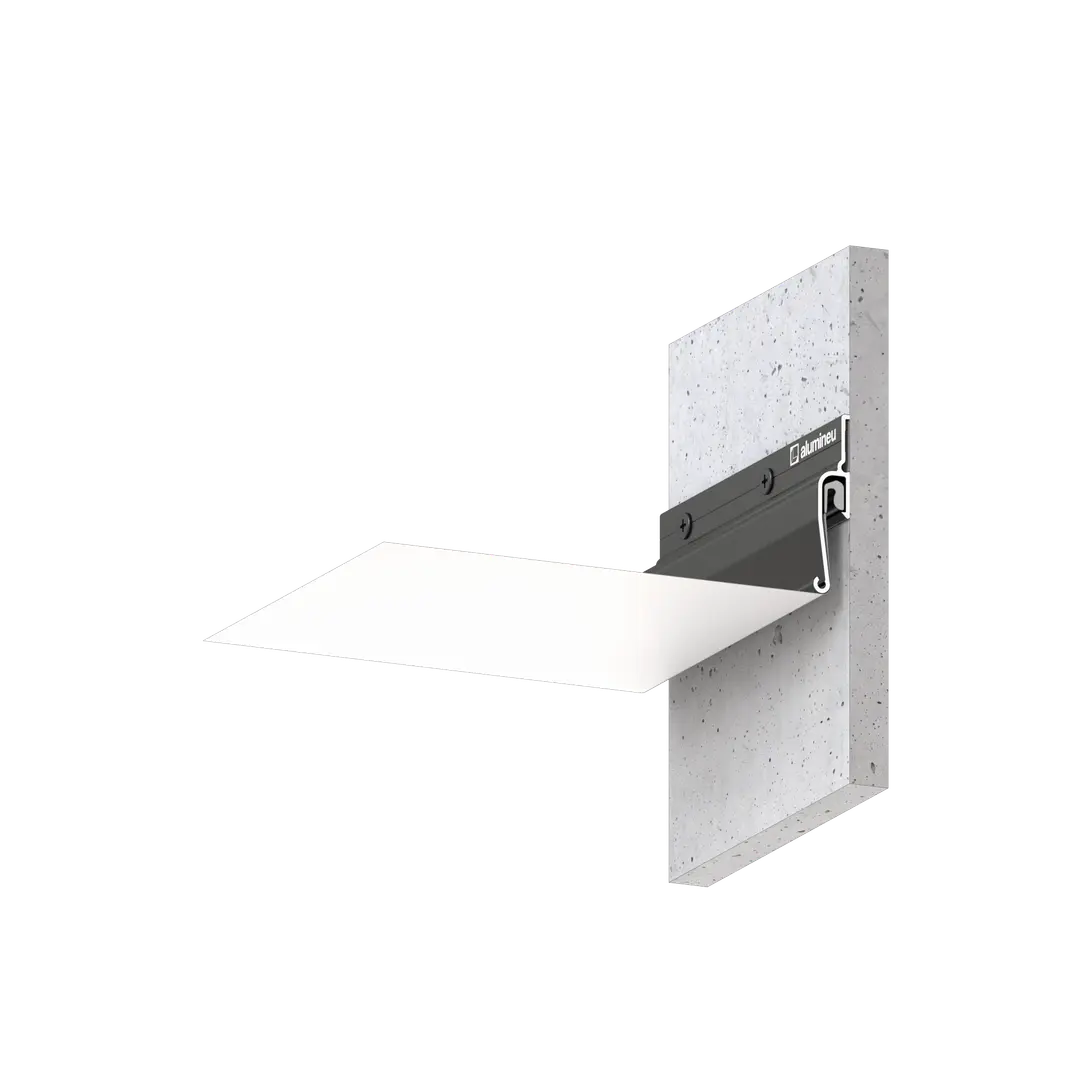

Aluminium shadow gap wall profile INVISIA X202 for stretch ceilings with a harpoon fastening system for PVC membranes. With direct harpoon insertion, the profile combines the familiar installation technique with a modern shadow gap junction and is installed with standard installation spatulas without changing the working method.

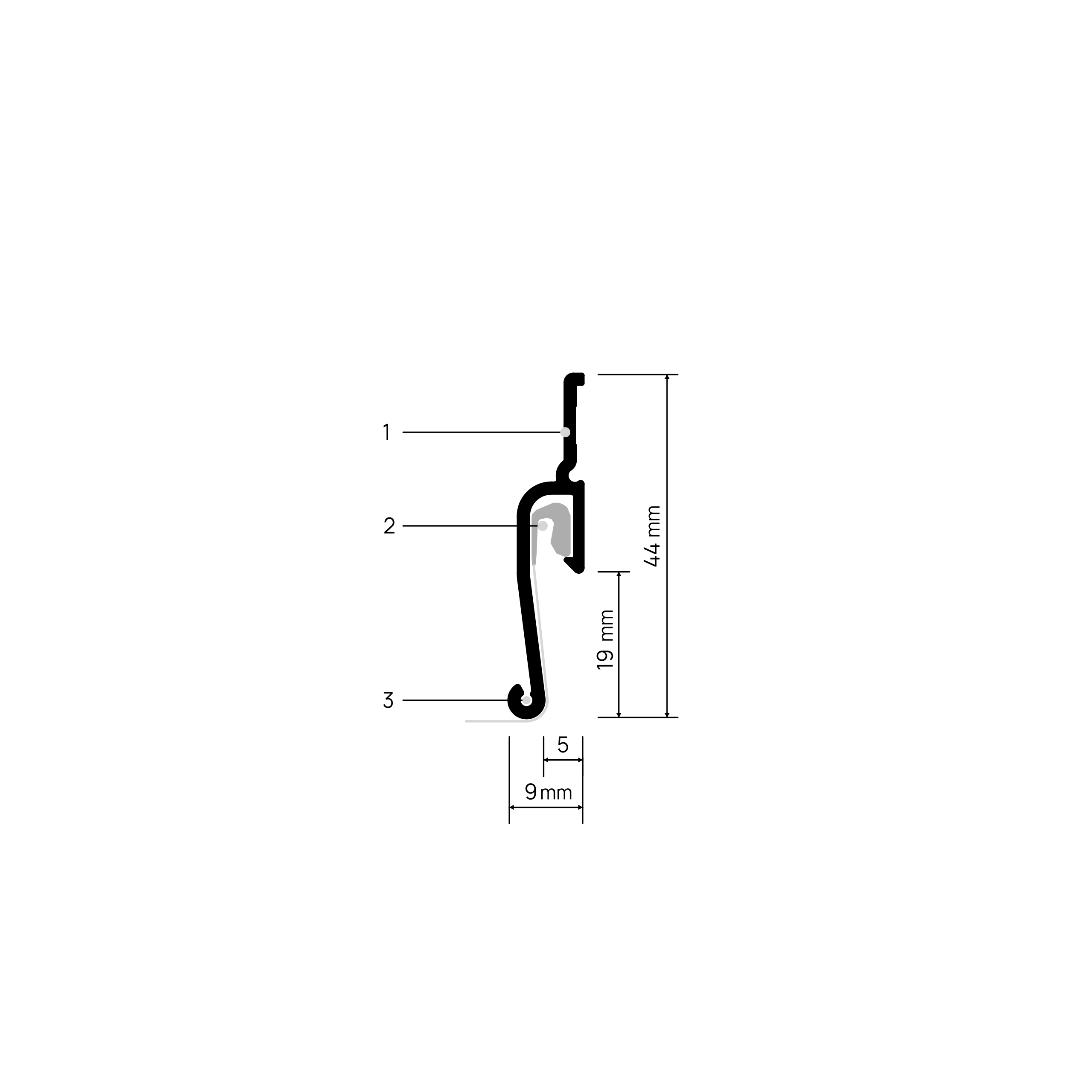

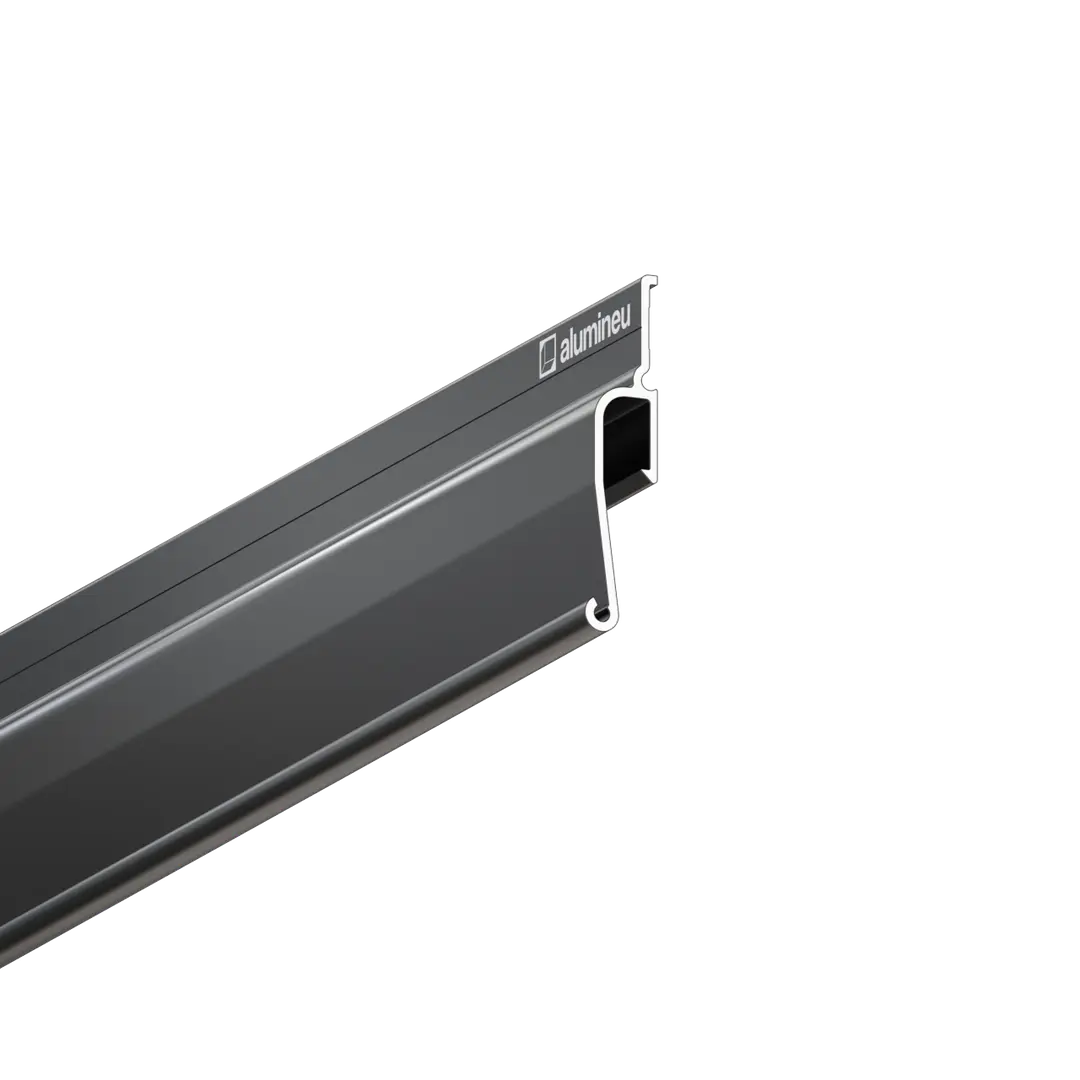

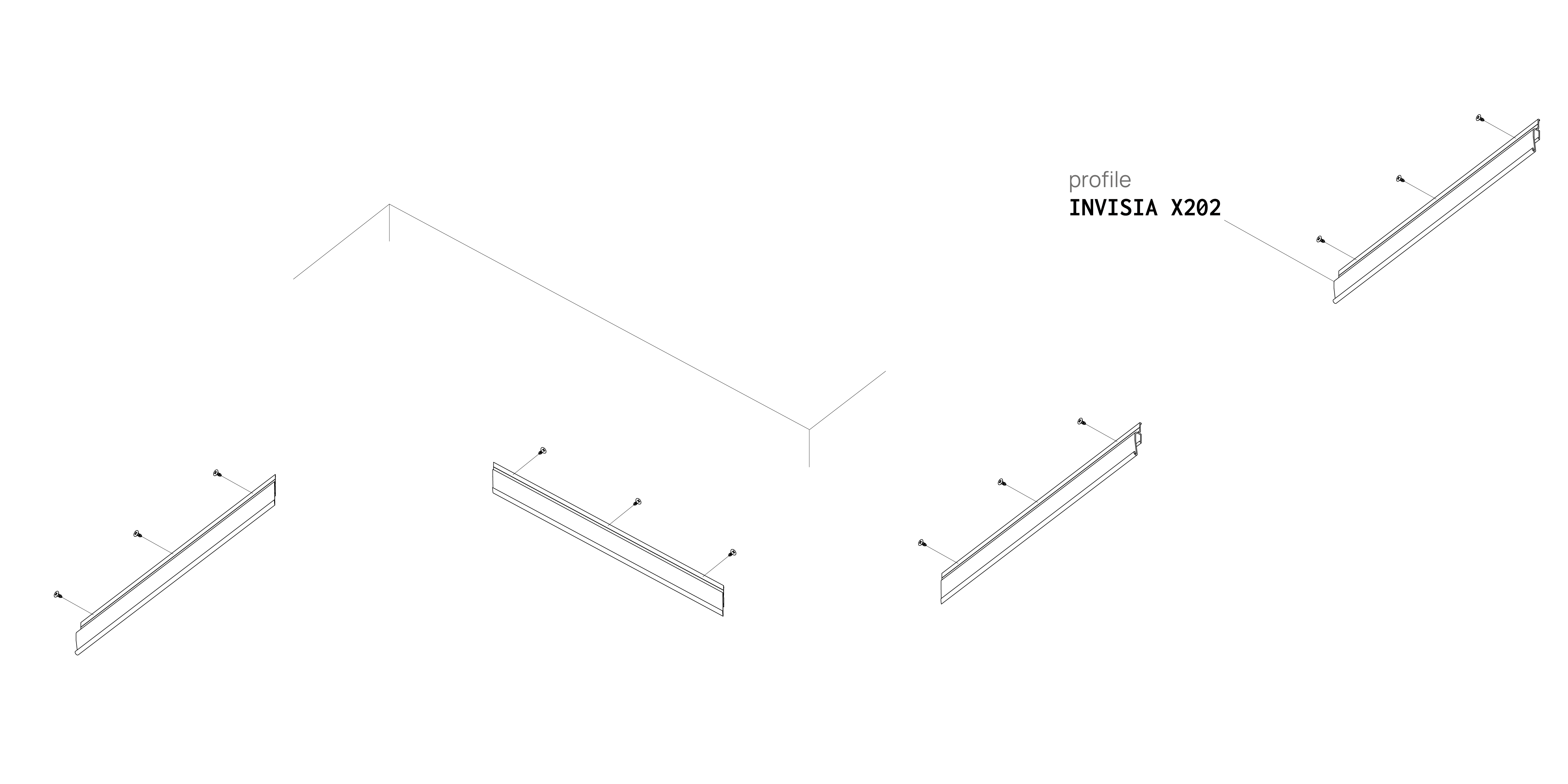

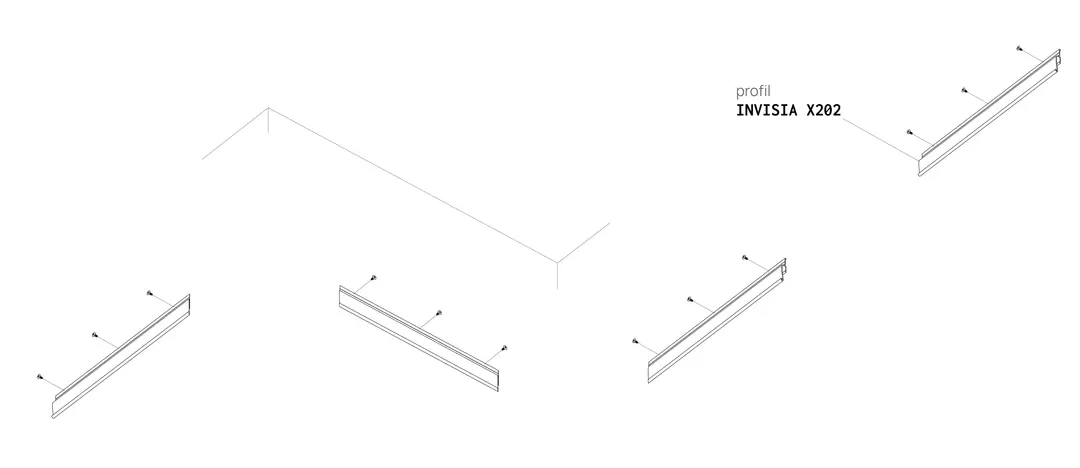

The increased installation height of the profile forms a deeper and more distinct shadow gap, and the sloped deflector edge together with the matt black coating conceal the harpoon and the inner part of the profile, giving the junction a clean architectural look without a decorative insert. The increased rigidity of the structure allows the profile to be used in large rooms where the geometry must remain stable under the load of the stretch membrane.

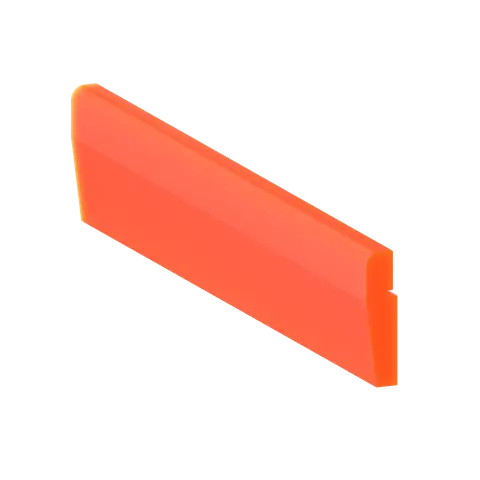

For precise joining of profiles, there is a groove for a joint pin with a diameter of 2 mm, which reliably aligns the elements and eliminates steps at the joints. The design allows inside and outside corners to be made by notching and bending, which reduces installation time and simplifies work with non-standard room geometry. Suitable for shadow gap ceilings with a distinct junction and high assembly precision.
