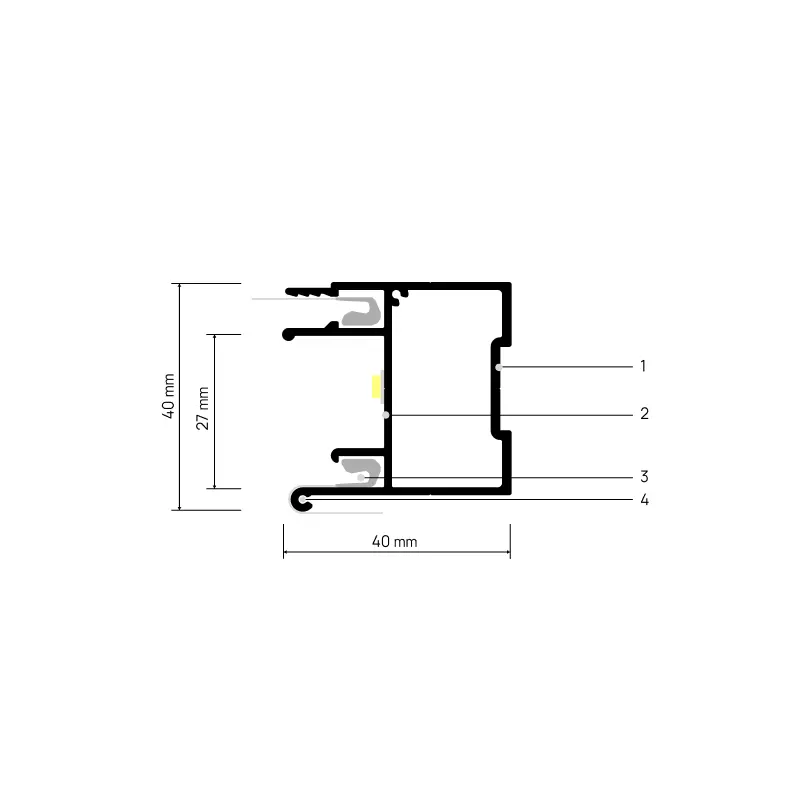

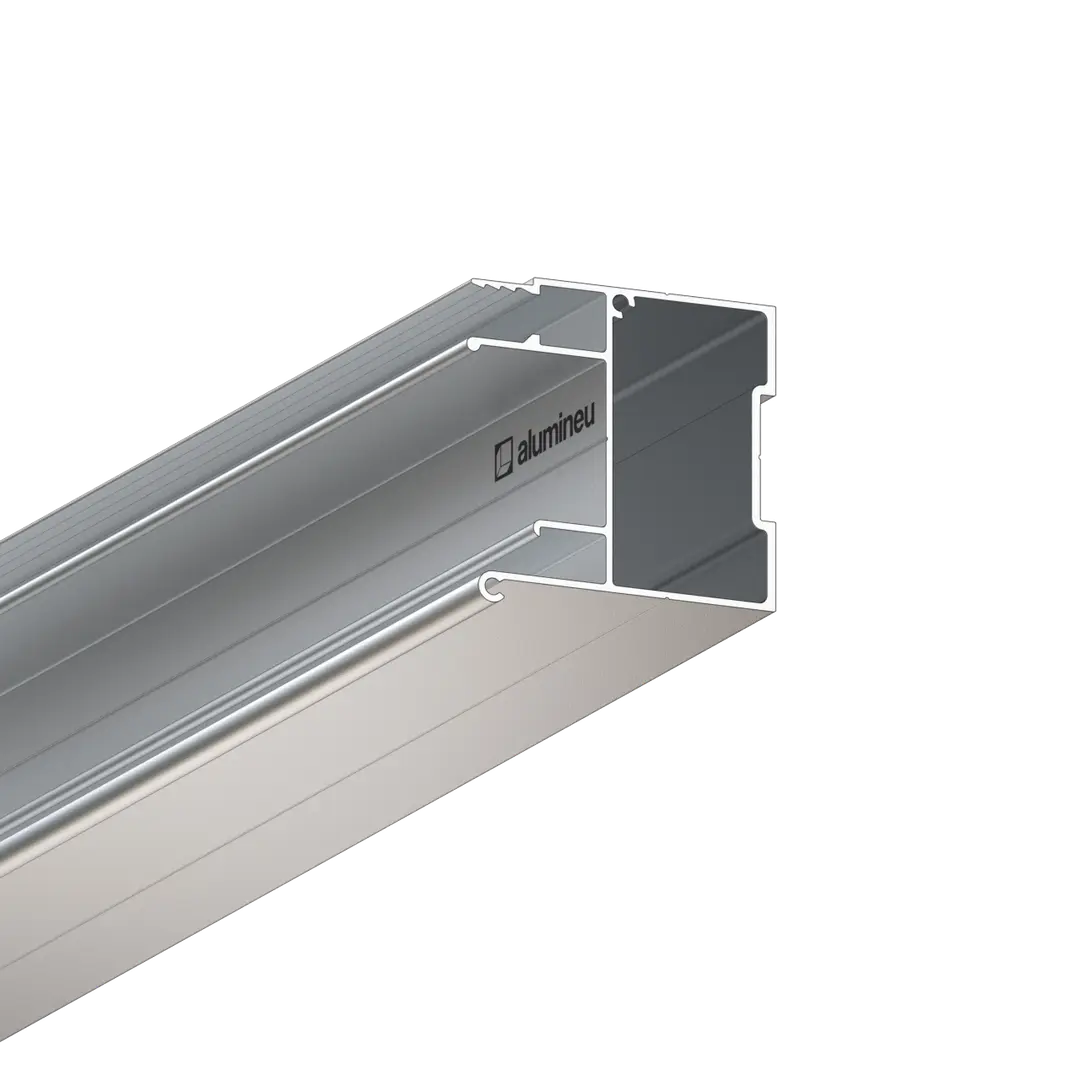

STRATOS X703

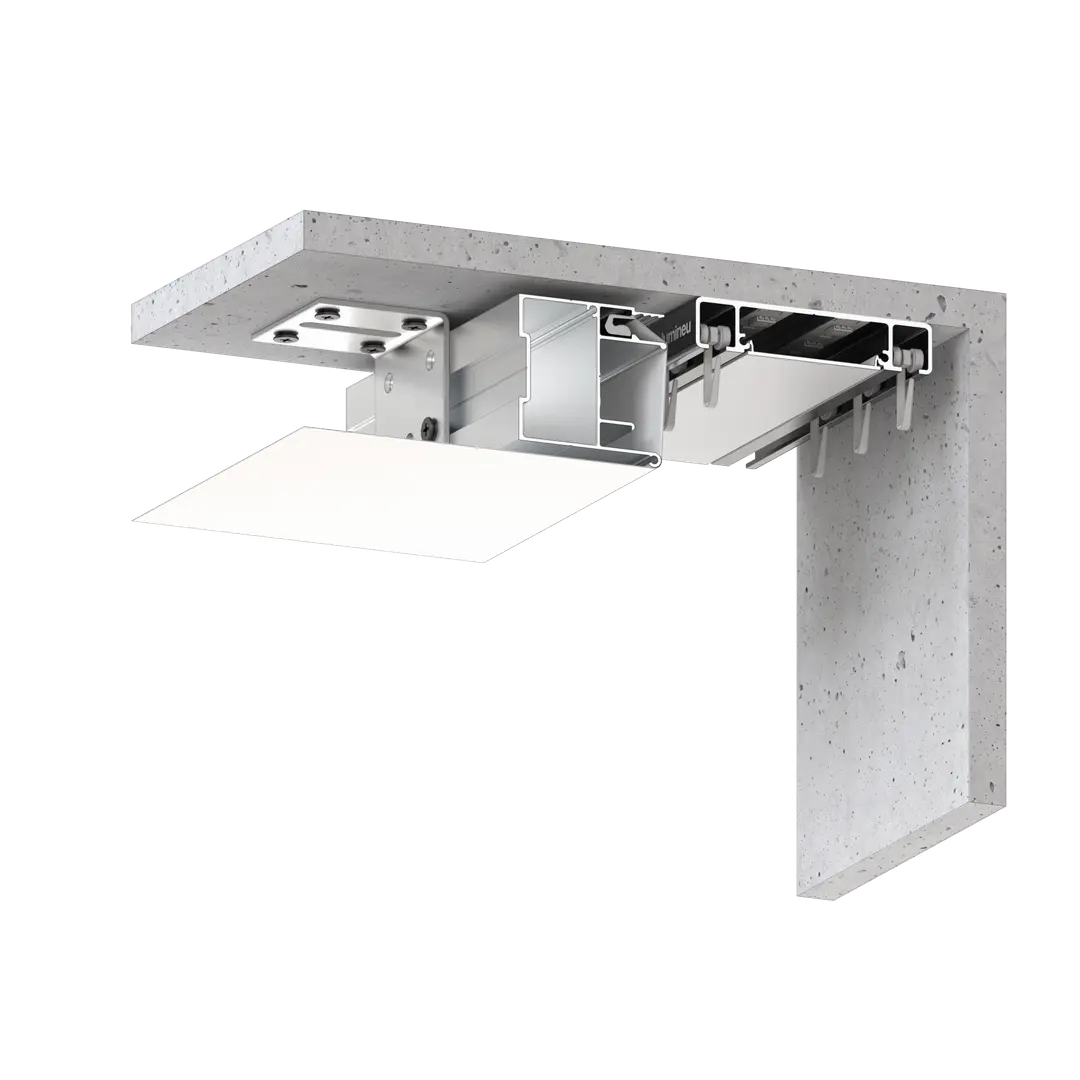

The STRATOS X703 aluminium profile is designed for stretch ceilings with a harpoon fastening system for PVC membranes. The profile is used to build structures and niches and to go around complex walls. LED strip is glued to the ledge of the profile.

The profile is installed with a membrane fold of 4 mm or 32 mm, or without a fold. With a 4 mm fold, a 2 × 15 mm band is placed under the membrane for the transition to the wall profile, and the LED strip can be replaced without removing the membrane.

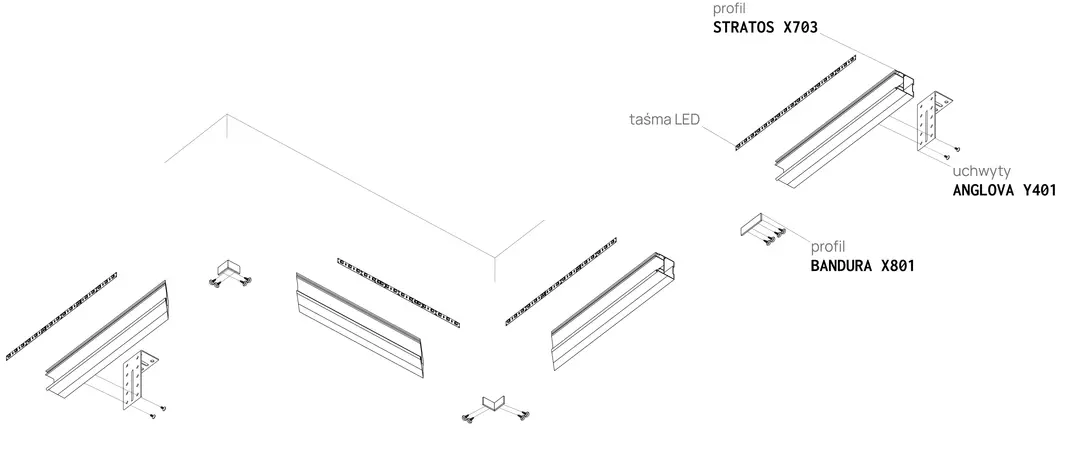

Coloured membranes and matt-texture membranes are not used with the lighting. The profile can be bent to a radius of 120 mm or more and is installed in one structure with the INVISIA X205 shadow gap profile.
