FLOATIA X302

Floating aluminium wall profile FLOATIA X302 for stretch ceilings with a harpoon fastening system for PVC membranes. The profile works on the principle of reverse harpoon insertion and fully conceals the membrane fastening without a decorative insert.

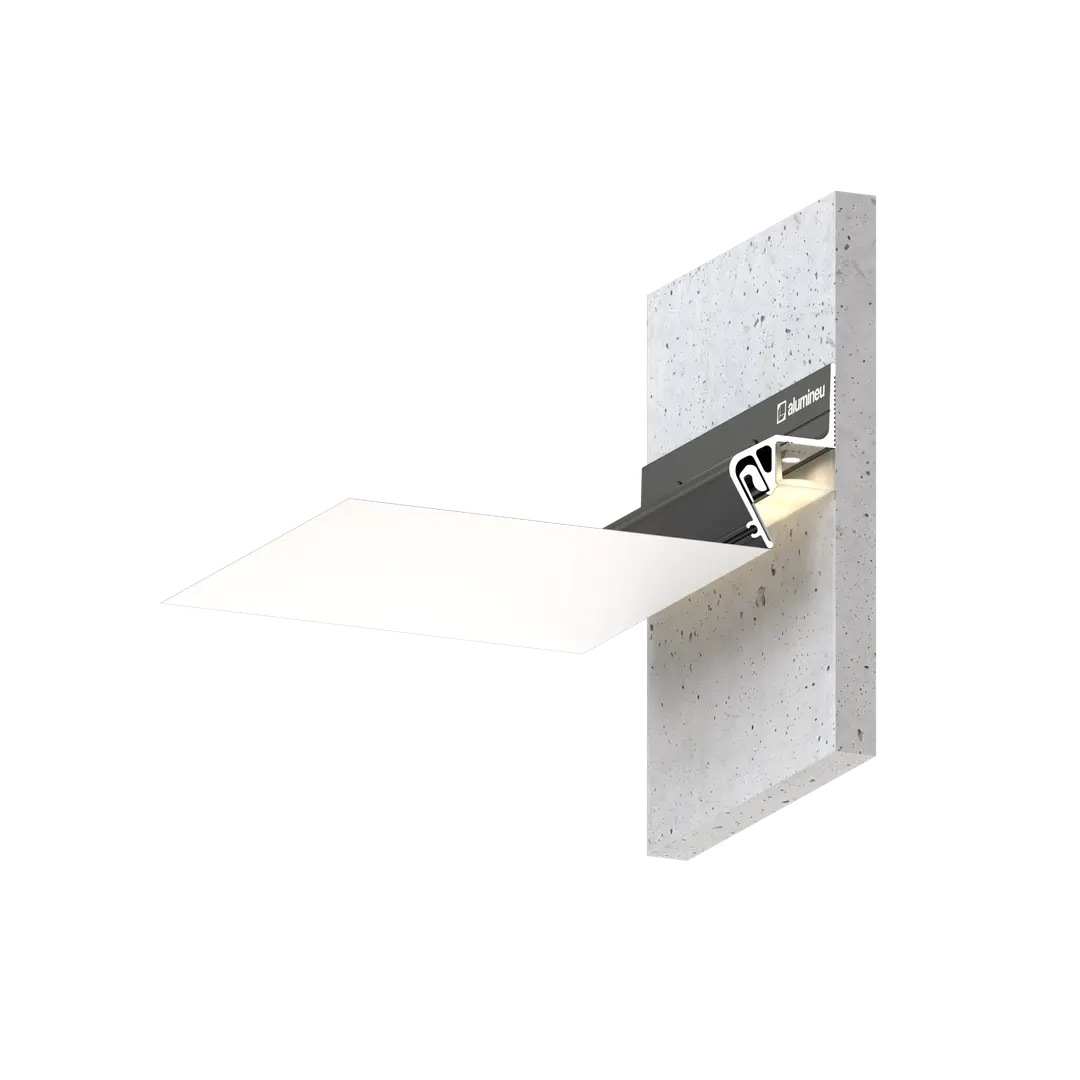

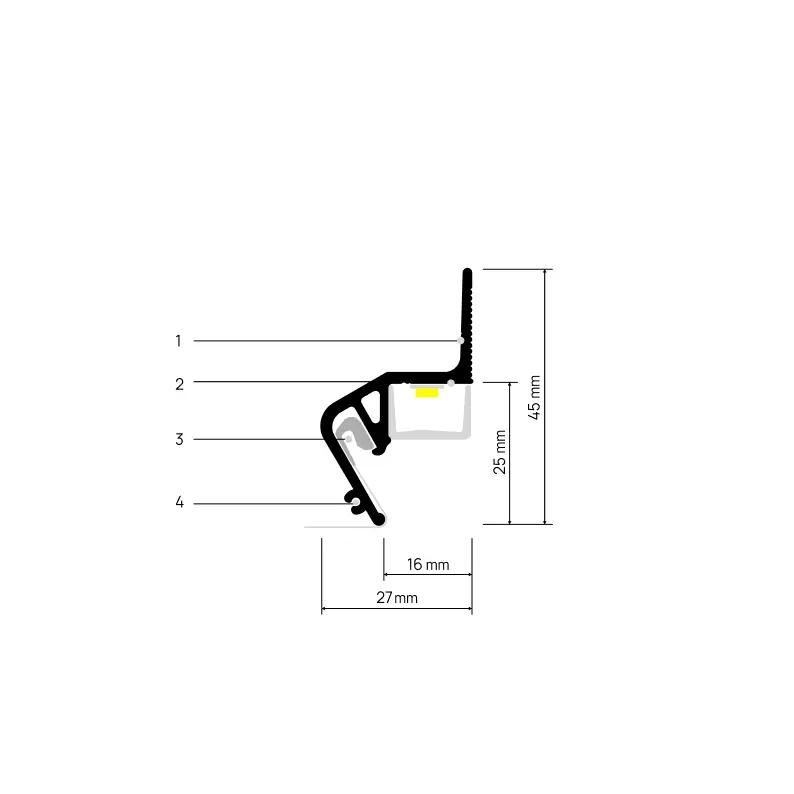

With the lighting off, the profile forms a distinct 15 mm wide shadow gap, and with the LED strip on, it turns the gap into an even light contour that creates the effect of a floating ceiling. The lighting can serve as decorative, night or additional room lighting.

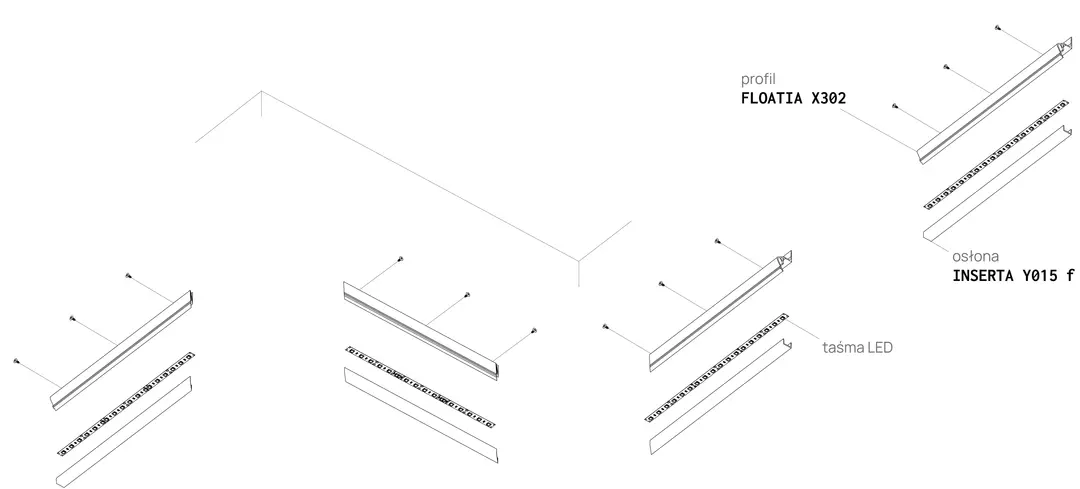

The design allows for an LED strip and a diffuser that distributes the light softly and evenly without visible LED dots. The profile is available uncoated, with a matt black coating and with a matt white coating.

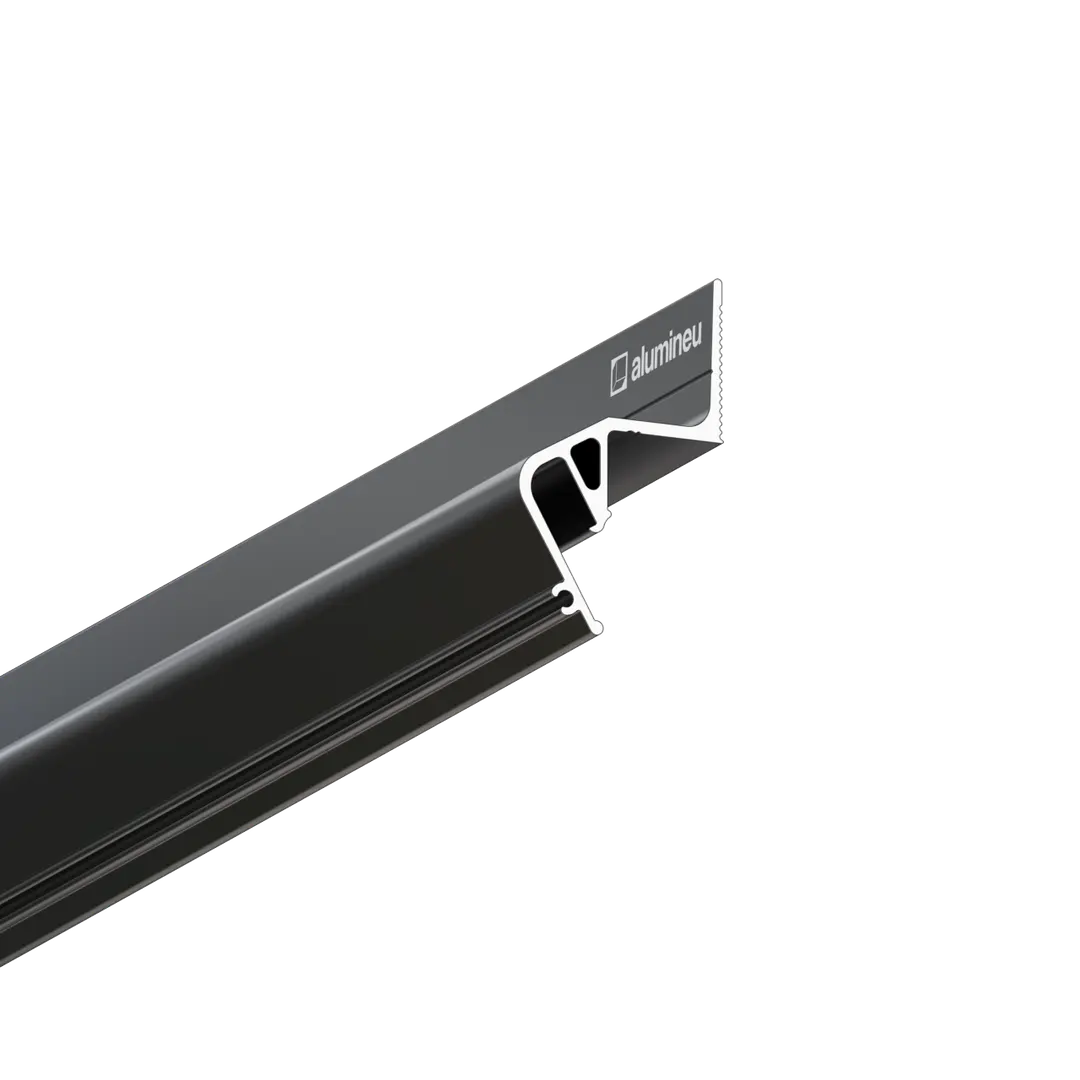

The matt black coating additionally conceals the harpoon and the inner part of the profile and enhances the shadow gap effect, so the profile can also be used as a shadow gap profile with an enlarged gap. The matt white coating improves light reflection inside the light chamber and increases the efficiency of the lighting. The uncoated version ensures reliable adhesion of the LED strip to the aluminium surface.

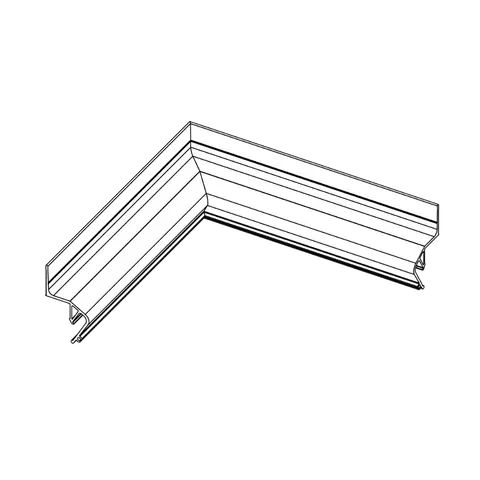

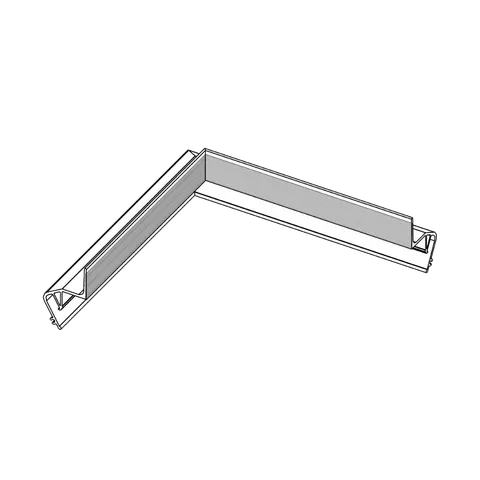

The profile is suitable for straight and curved floating ceilings and is compatible with the INSERTA Y015 F diffuser.
