INVISIA X206

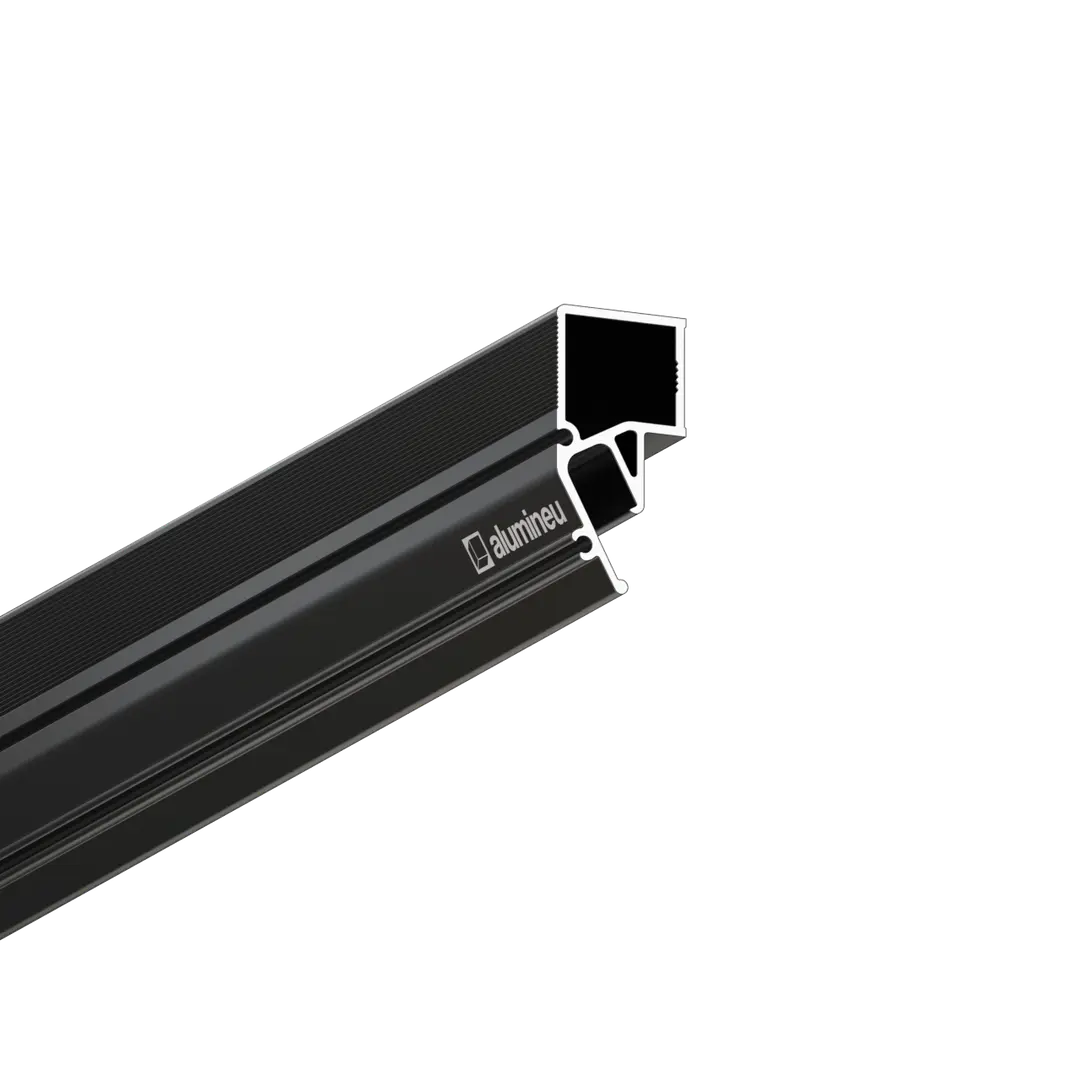

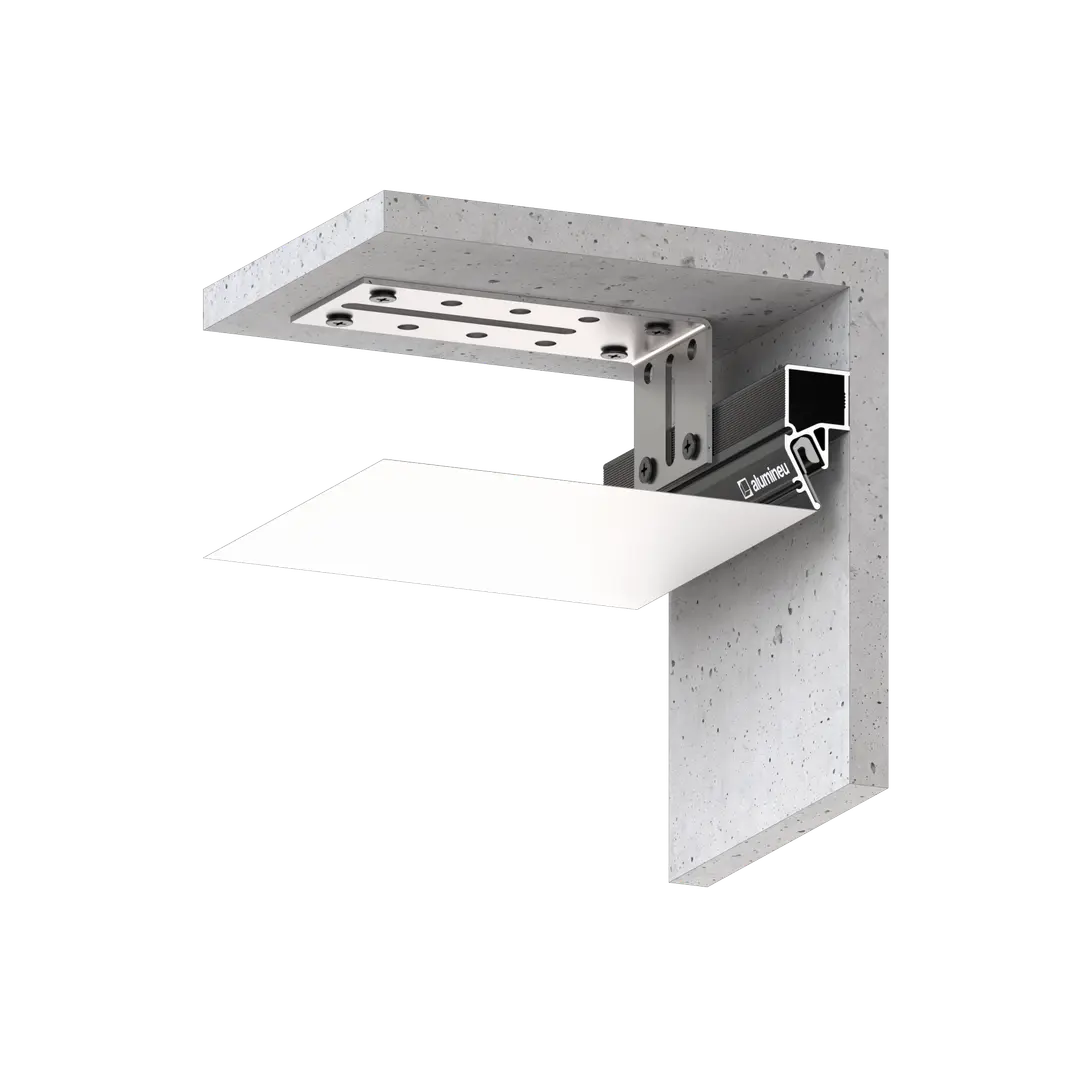

Reinforced aluminium shadow gap ceiling profile INVISIA X206 for stretch ceilings with a harpoon fastening system for PVC membranes. The integrated load-bearing aluminium bar gives the structure high rigidity and allows the profile to be fixed directly to the structural ceiling, which is especially important when wall mounting is impossible or limited by the room finishes.

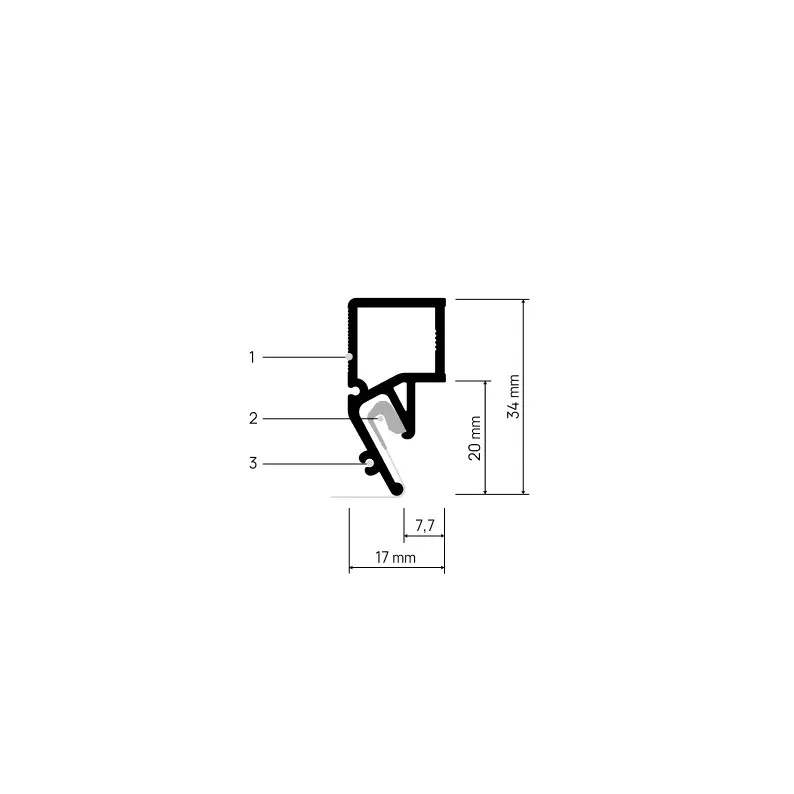

The profile forms a shadow gap junction with fully concealed membrane fastening. The geometry of the receiving chamber, reverse harpoon insertion and the matt black coating conceal the harpoon and the inner part of the profile, ensuring a sharp and even shadow line without a decorative insert.

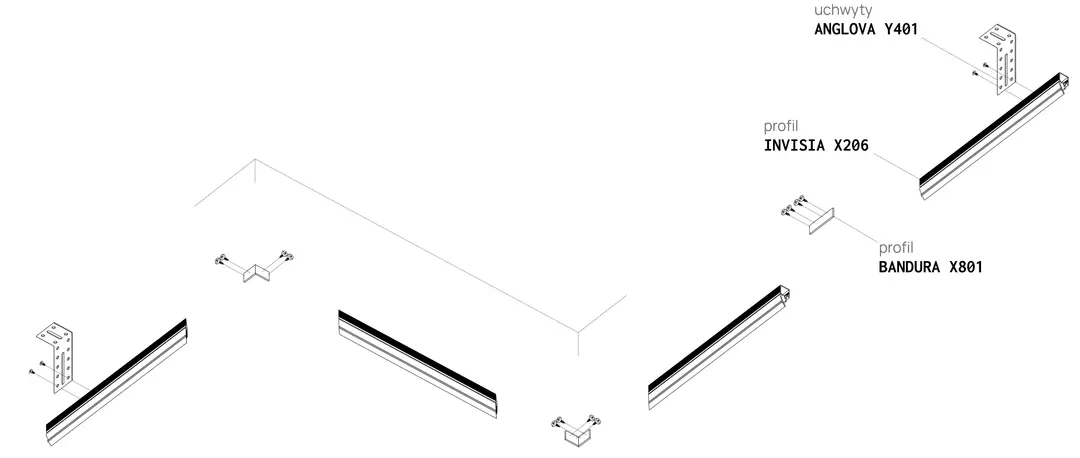

The load-bearing bar allows the profiles to be rigidly joined to each other and inside and outside corners to be additionally reinforced, which increases the strength of the structure and keeps the geometry stable even in sections with high load. The increased rigidity of the profile allows a larger fixing spacing than with standard wall profiles, reducing the number of fixing points without reducing the reliability of the structure.

The harpoon groove is fully compatible with the INVISIA X205 profile, so both profiles can be used within one project with the same shadow gap junction geometry. This allows INVISIA X205 to be used in standard sections and INVISIA X206 in areas with porcelain stoneware cladding, mirrors, glass panels, concealed wiring and other zones where ceiling mounting is preferable.

The profile is designed for shadow gap ceilings on sites with difficult installation conditions and high demands on structural strength, assembly precision and junction quality.
