INVISIA X209

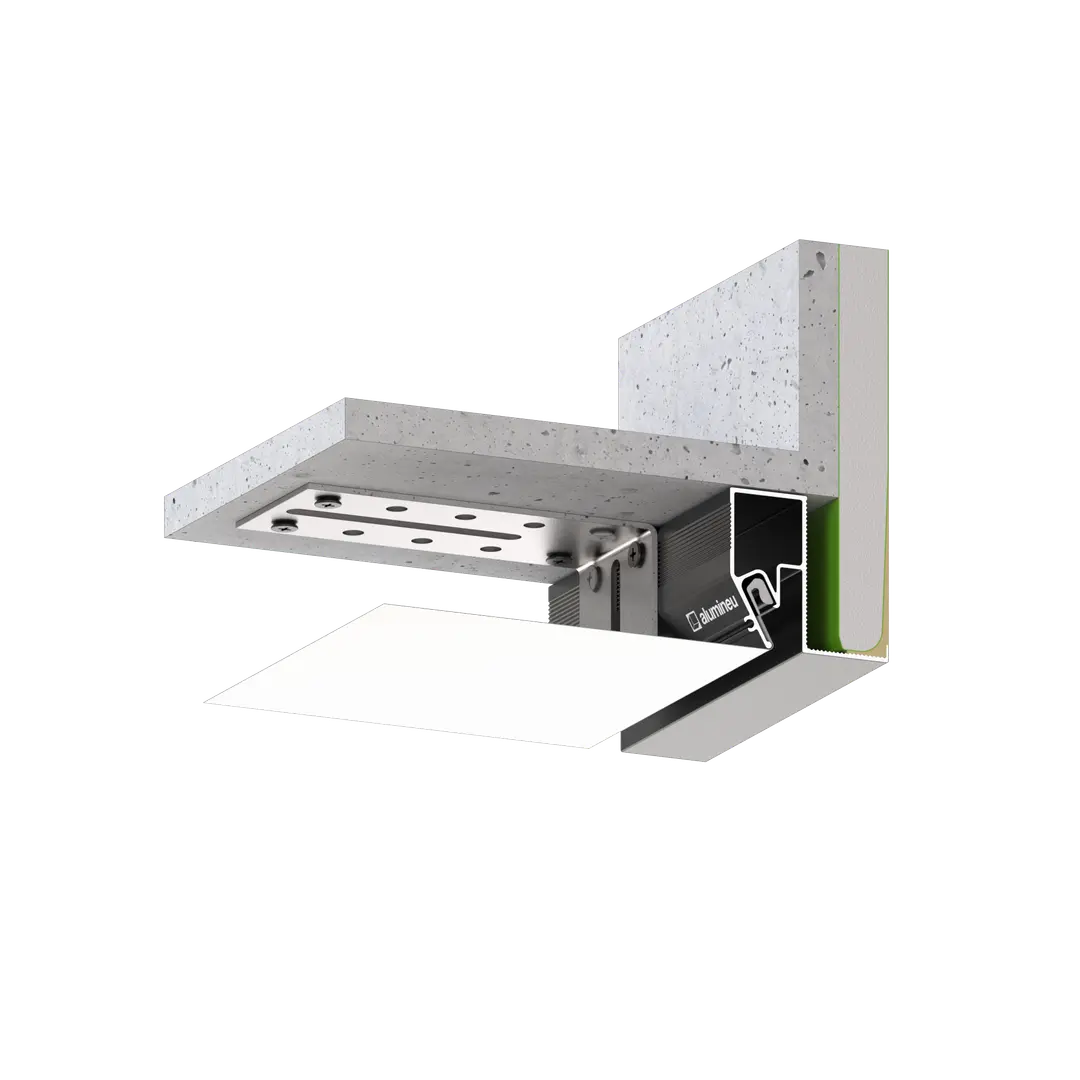

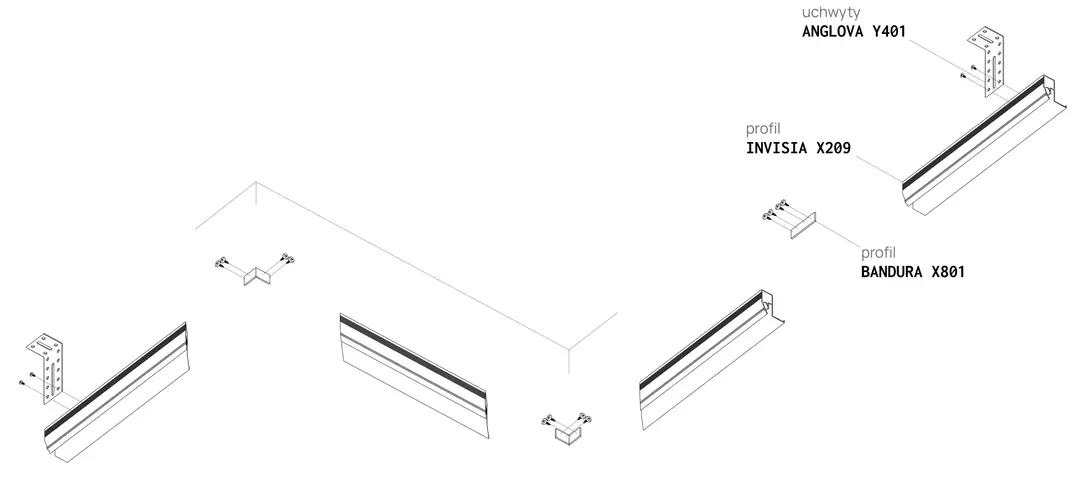

Aluminium shadow gap ceiling profile INVISIA X209 for stretch ceilings with a harpoon fastening system for PVC membranes. The integrated load-bearing aluminium bar gives the structure high rigidity and allows the profile to be fixed to the ceiling, which is especially important when wall mounting is impossible. The profile is designed for complex architectural solutions, including routing around stairwell openings, roof windows, changes in height and other non-standard room elements.

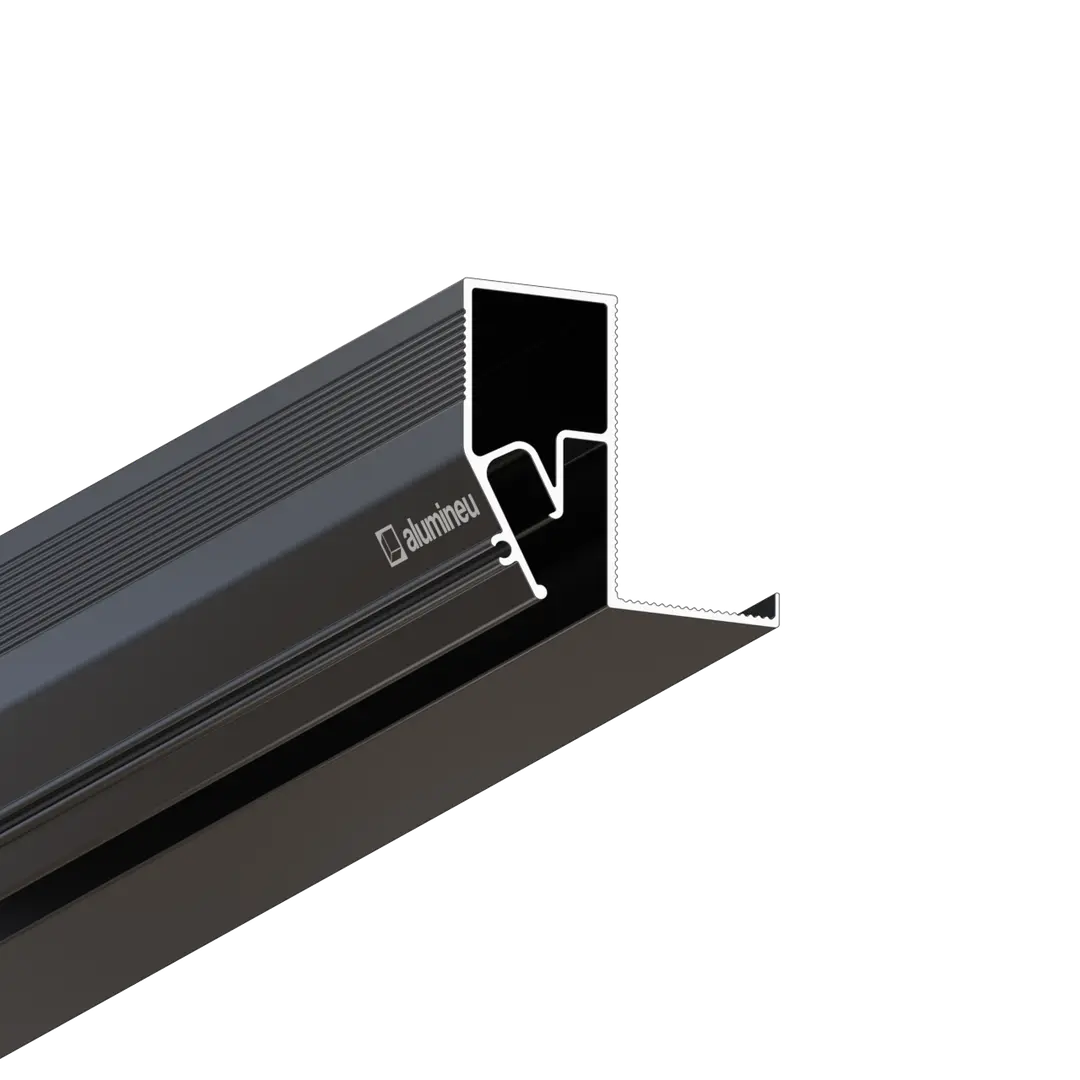

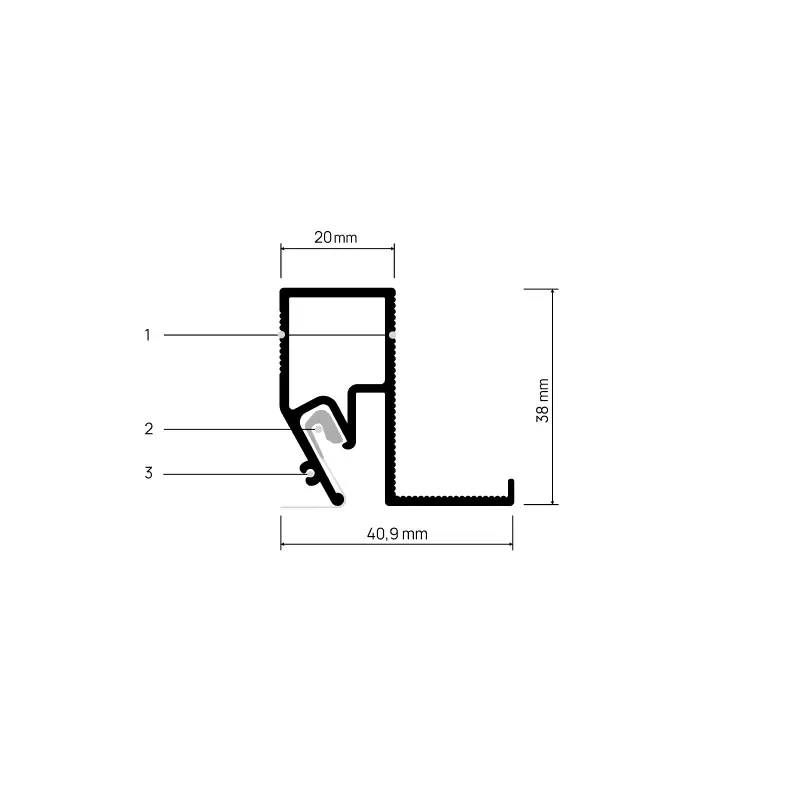

The profile design forms a deep shadow gap, creating a floating ceiling effect and ensuring a neat junction with the building structures. Rigid joining of the profiles through the built-in bar ensures high strength of inside and outside corners, prevents displacement of structural elements under membrane tension and increases assembly precision.

A special ledge allows two sheets of plasterboard to be mounted, so the profile is suitable for combined ceiling structures with subsequent finishing without additional trim elements. The harpoon groove is fully compatible with the INVISIA X205 profile, so both profiles can be combined in one project.

High load-bearing capacity and precise geometry allow INVISIA X209 to be used in technically complex projects that require reliable ceiling mounting, structural strength and flawless shadow gap junction geometry.
