INVISIA X207

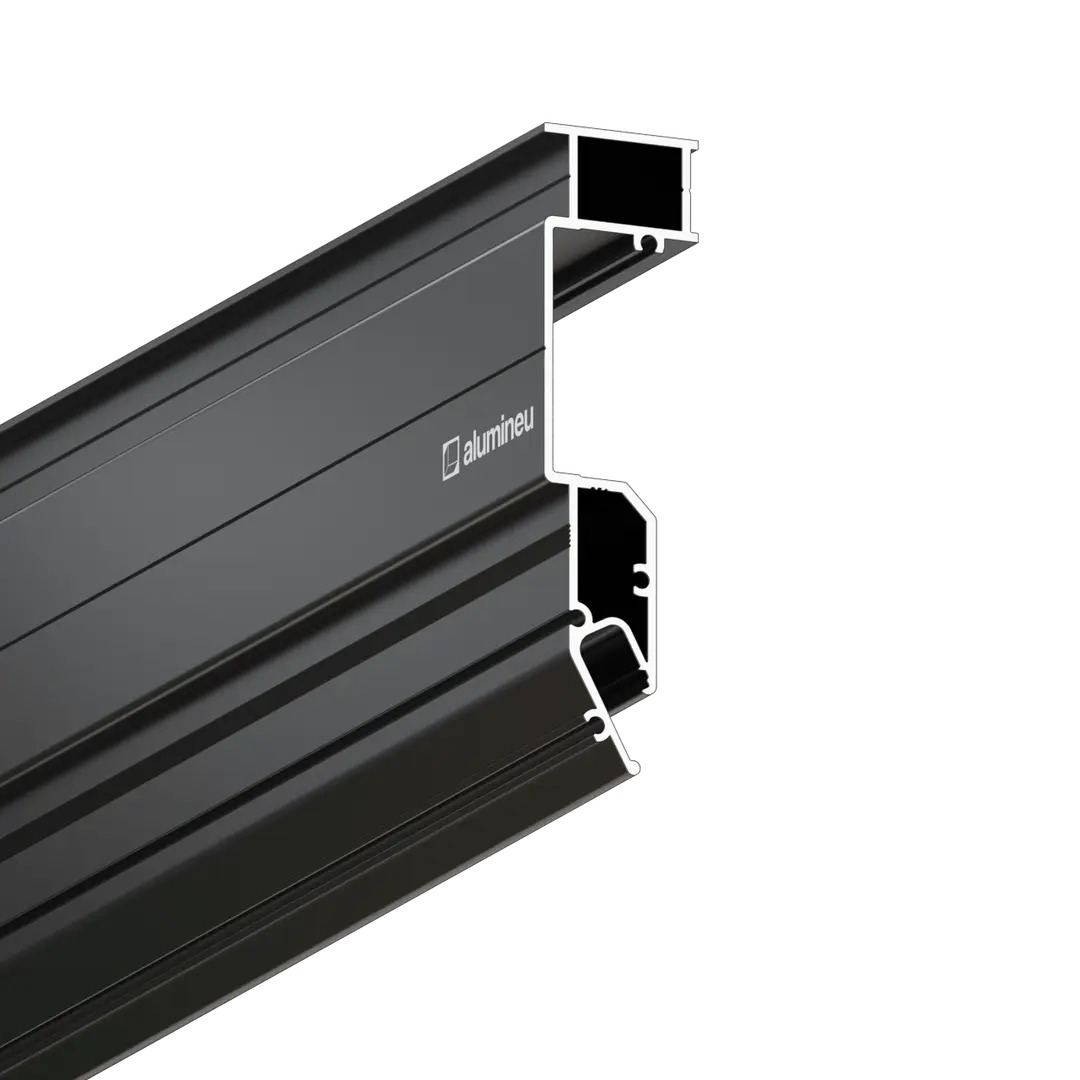

Name: Linear slot diffuser INVISIA X207 in the shadow gap
Brand: Alumineu
SKU: INVISIA-X207
Price: 6.23 EUR
Availability: InStock

€ 6,23

per m¹ excl. VAT

Colour: Black matte

In stock, delivery 24–48 h

Description

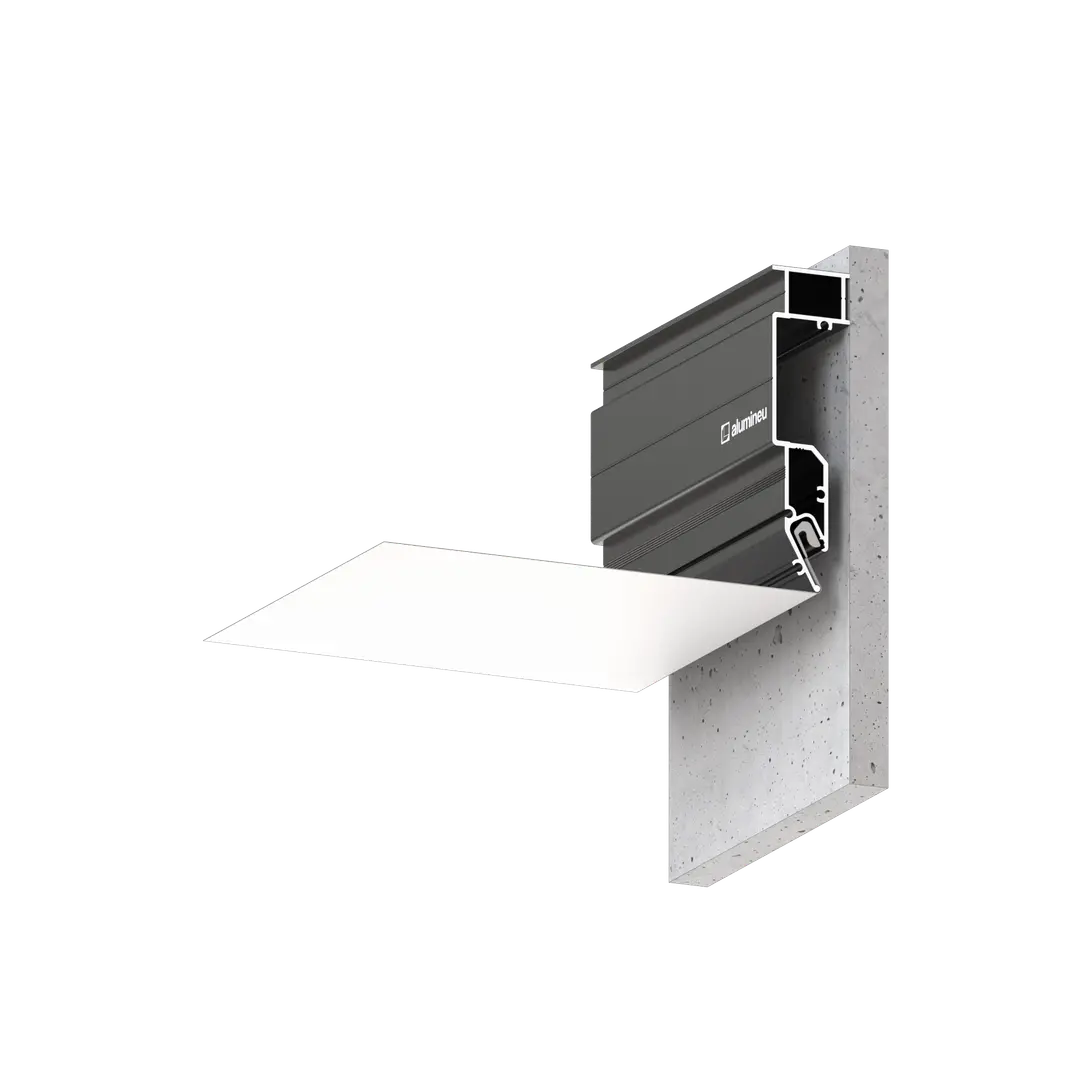

Wall-mounted linear slot diffuser INVISIA X207 for stretch ceilings with a harpoon fastening system for PVC membranes. The diffuser is mounted on the wall and works for both supply and extract air. The diffuser is installed in bathrooms, toilets and living rooms.

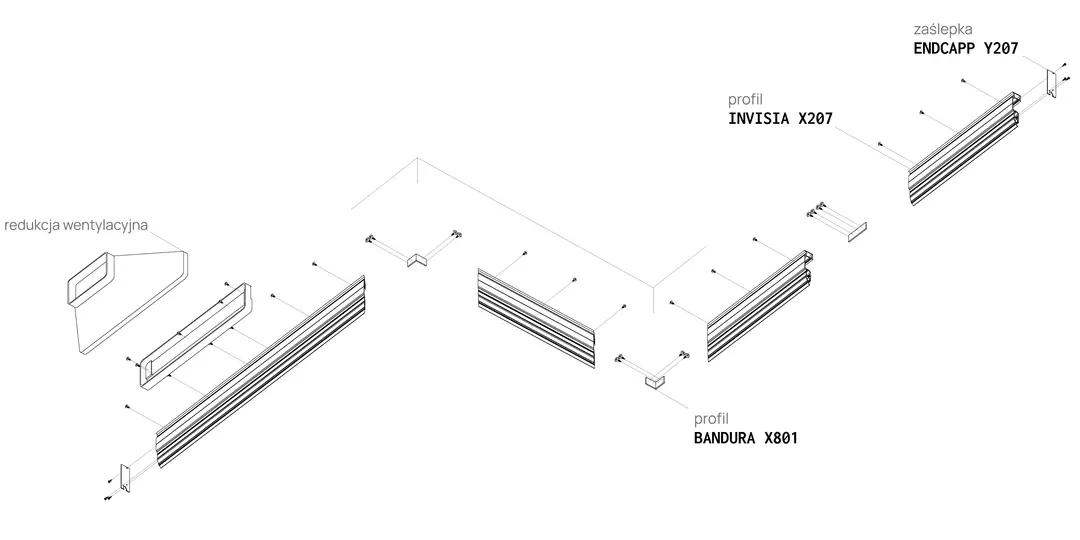

The diffuser aligns in one line with the INVISIA X205 and INVISIA X206 shadow gap profiles. After the ceiling is installed, the shadow gap runs along the wall without a break, and the ventilation section within it is not visible. Air passes through the shadow gap into the diffuser chamber.

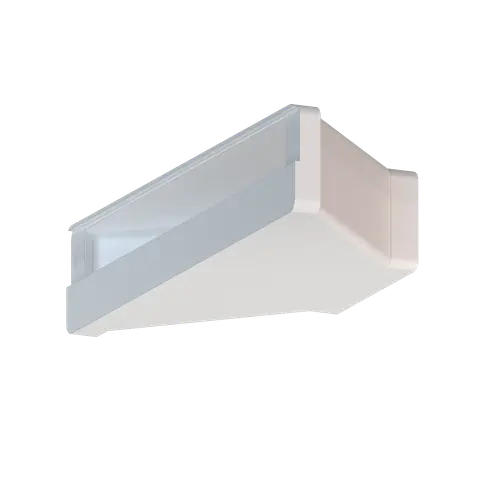

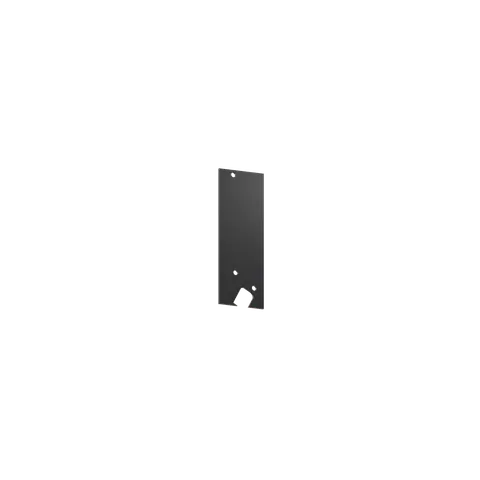

The diffuser is connected to a 110 × 55 mm flat duct via the AEROOOM Y911 connection spigot. The wall for mounting the spigot follows its shape along the entire length, so the spigot can be installed anywhere along the profile. After the profile is cut to length, the ends are closed with removable ENDCAPP Y207 end caps so that air passes only through the slot.

technical specifications

Brand:: alumineu
Material:: aluminum
Membrane attachment:: harpoon

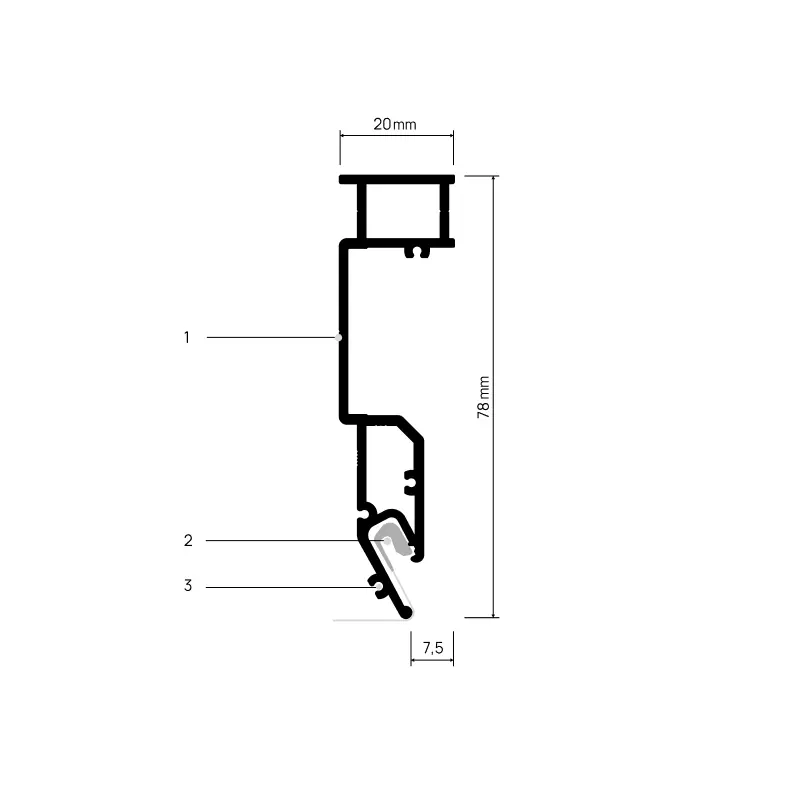

Shadow gap:: 7.7 mm

What's in the box

The profile is supplied in 2 m lengths, with no extra components.

Installation

Removal

Insert the spatula between the harpoon and the profile locking lip, heat the harpoon, press on the membrane, and move the spatula along the profile; the membrane can be removed without damage and reused.

With self-tapping screws or wall plugs to the wall, at a spacing of no more than 300–350 mm.

Fixed with adhesive to a wall of porcelain stoneware, a mirror, or another fragile surface.

Joined without a step or a gap, using a ∅2 mm rod and a 15 mm wide joining profile.
