INVISIA X204

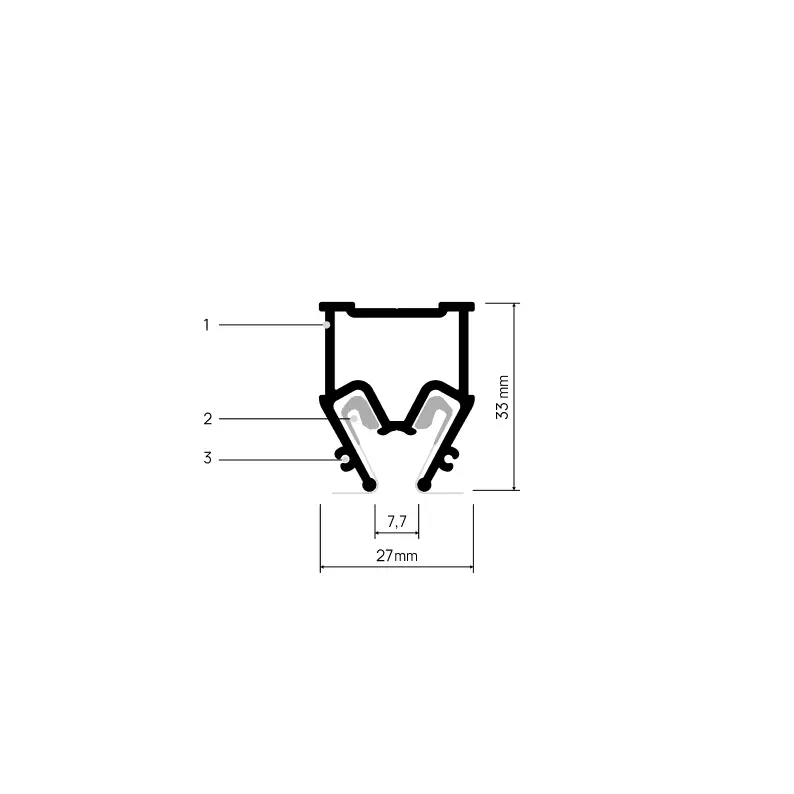

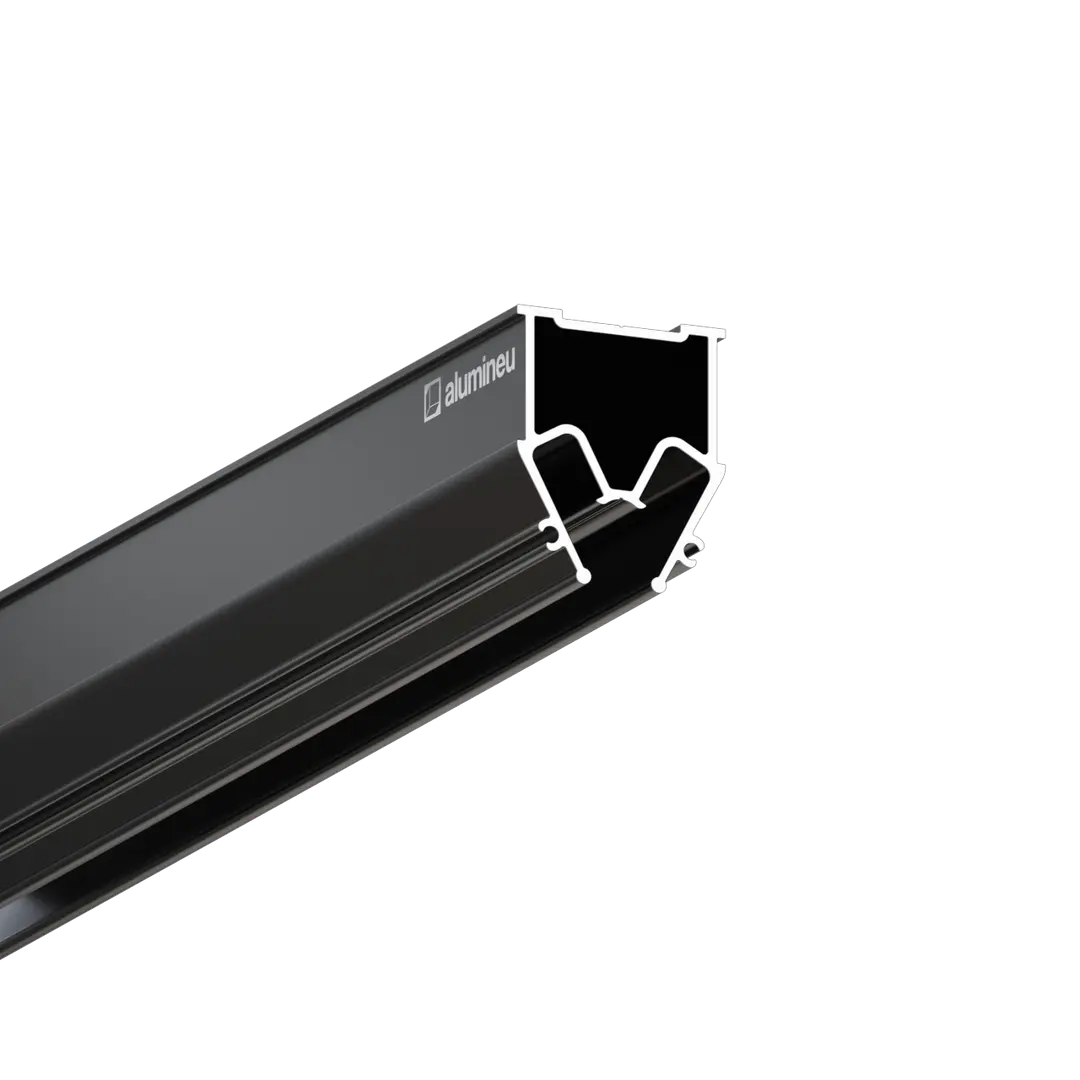

Aluminium dividing profile INVISIA X204 for stretch ceilings with a harpoon fastening system for PVC membranes. The profile forms a 7.7 mm wide shadow gap and is designed to divide the membrane into separate segments without a decorative dividing insert, while keeping a uniform architectural style of the ceiling.

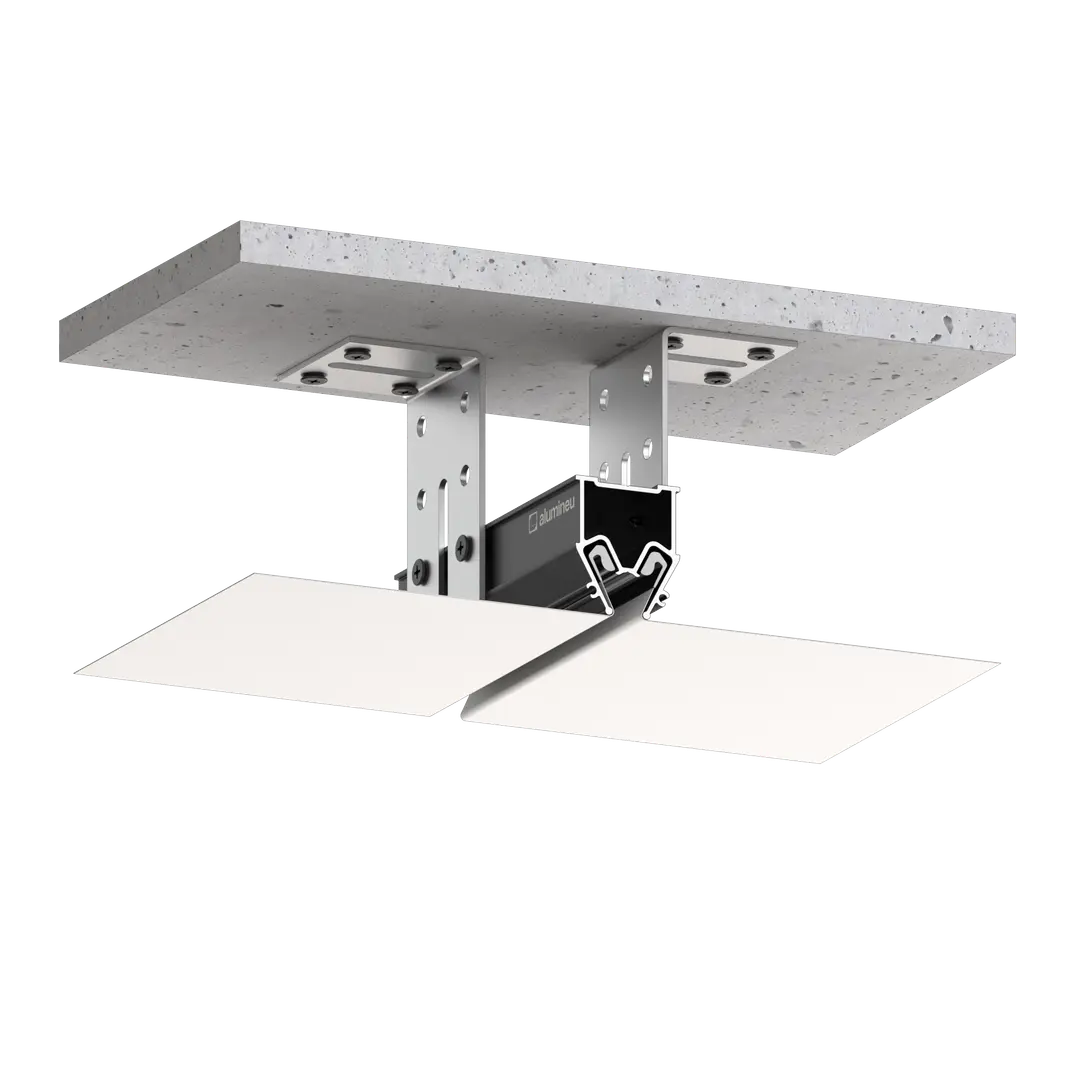

The profile design allows membranes of different colours, textures and levels to be joined. The profile is used in large rooms where the membrane must be divided into several independent sections. The precisely calculated profile geometry ensures a neat shadow gap junction and a continuous shadow gap line along the entire length of the joint.

The profile is used for sloped and attic ceilings and in projects with complex geometry where different planes must be joined without disturbing the overall ceiling architecture.

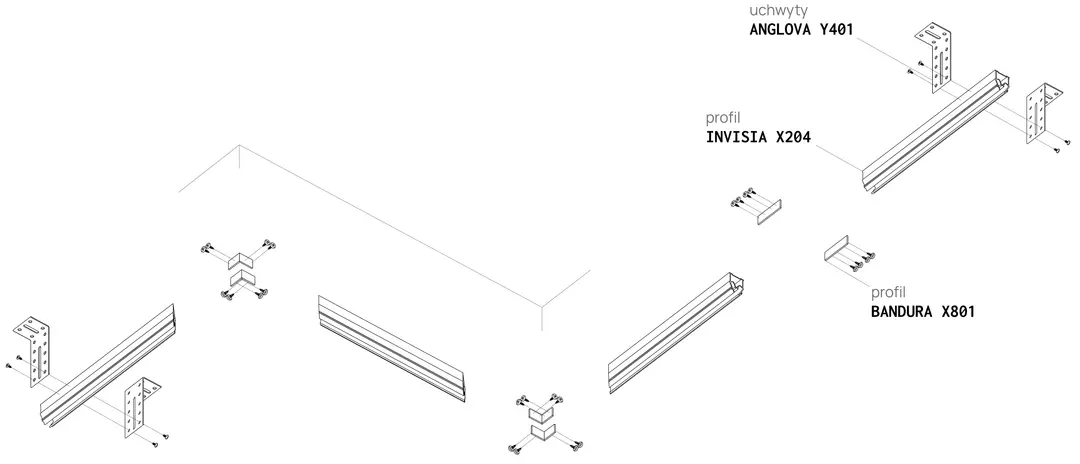

INVISIA X204 shares the same geometry as the INVISIA profiles, so it can be combined with INVISIA X205 and INVISIA X206 shadow gap profiles and the INVISIA X207 linear ventilation diffuser while keeping the same width and appearance of the shadow gap around the entire room perimeter.

Suitable for straight and multi-plane stretch ceilings, for dividing large membrane areas and for complex design solutions within a single shadow gap concept.
